In this era of rapid technological development, the application of automatic doors makes life and production safer and more convenient.
In this era of rapid technological development, the application of automatic doors makes life and production safer and more convenient. In order to create a safe, reliable and comfortable environment, we have been committed to researching products that meet global safety standards, so that users can feel it in any situation To the warmth and convenience.
M-204H, 4m auto gate radar motion sensor, with 24.125GHz frequency, high sensitivity and wide application range, very suitable for automatic sliding gate in storefront, stations, factory etc. For this sensor, there are also one-way sensing version sensor for you to choose.

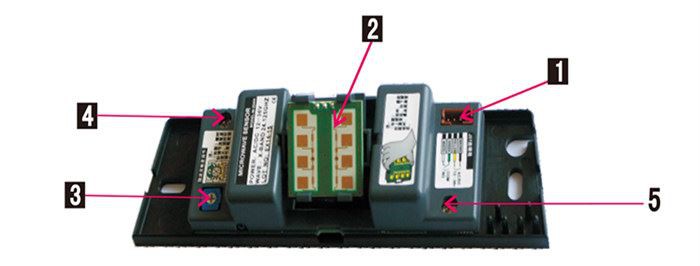

Product overview
1, JST connection: BROWN, YELLOW - Power connection
GREEN, WHITE - Relay
2, Doppler sensor module: UP - Far distance
DOWN - Near distance
3, Sensitivity knob: CLOCKWISE - High sensitivity
COUNTERCLOCKWISE - Low sensitivity
4, Screw holes
5, Screw holes
Features and Services
1, Stable performance: This sensor has been tested in domestic and foreign markets, and each product will be tested before shipment. For installation and debugging, please refer to the attached manual, or consult us at any time.
2, Easy installation: The factory default is 45 degree, mounting onto the door head, adjust the detect range according to the installation site.
3, Each product has a 1-year warranty.
