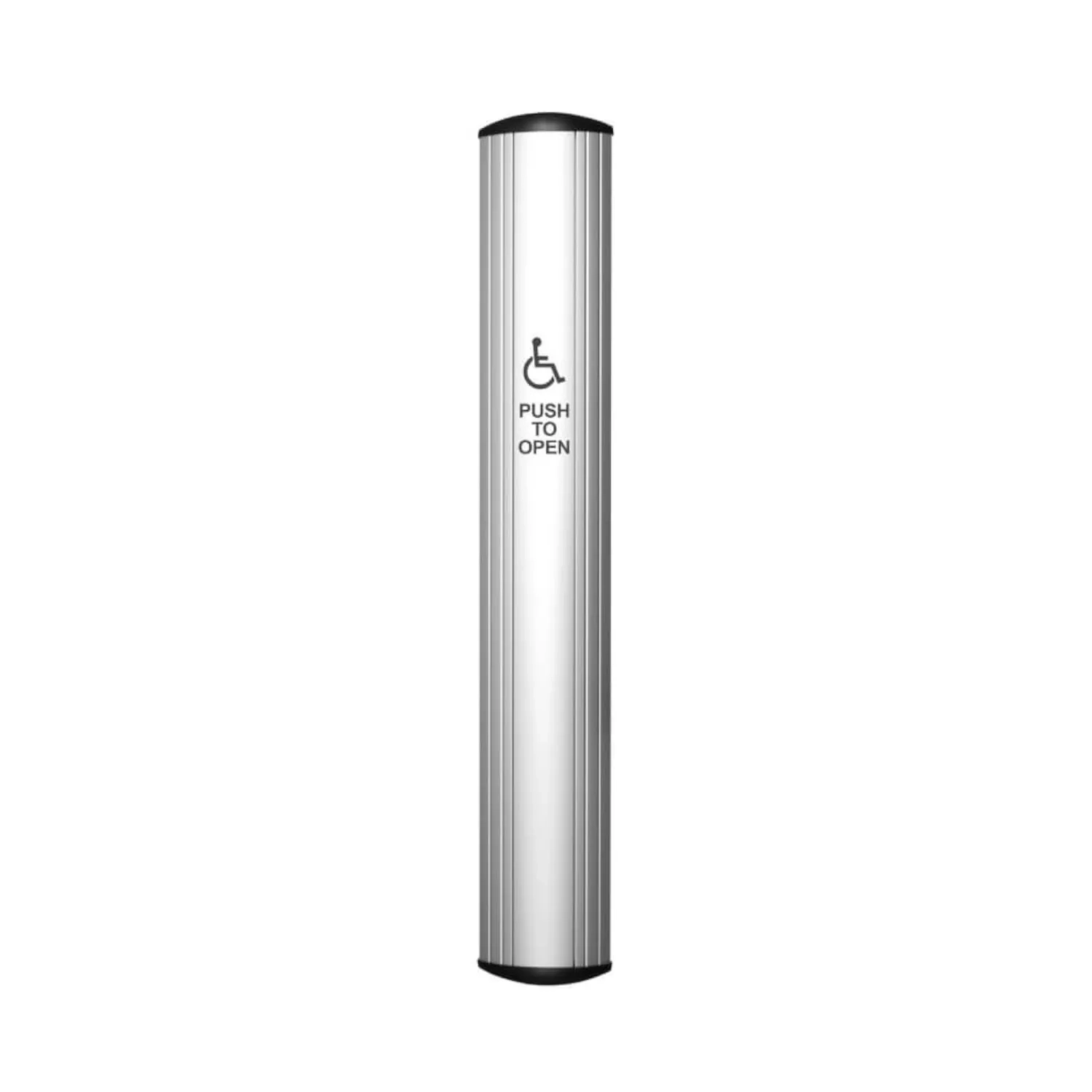

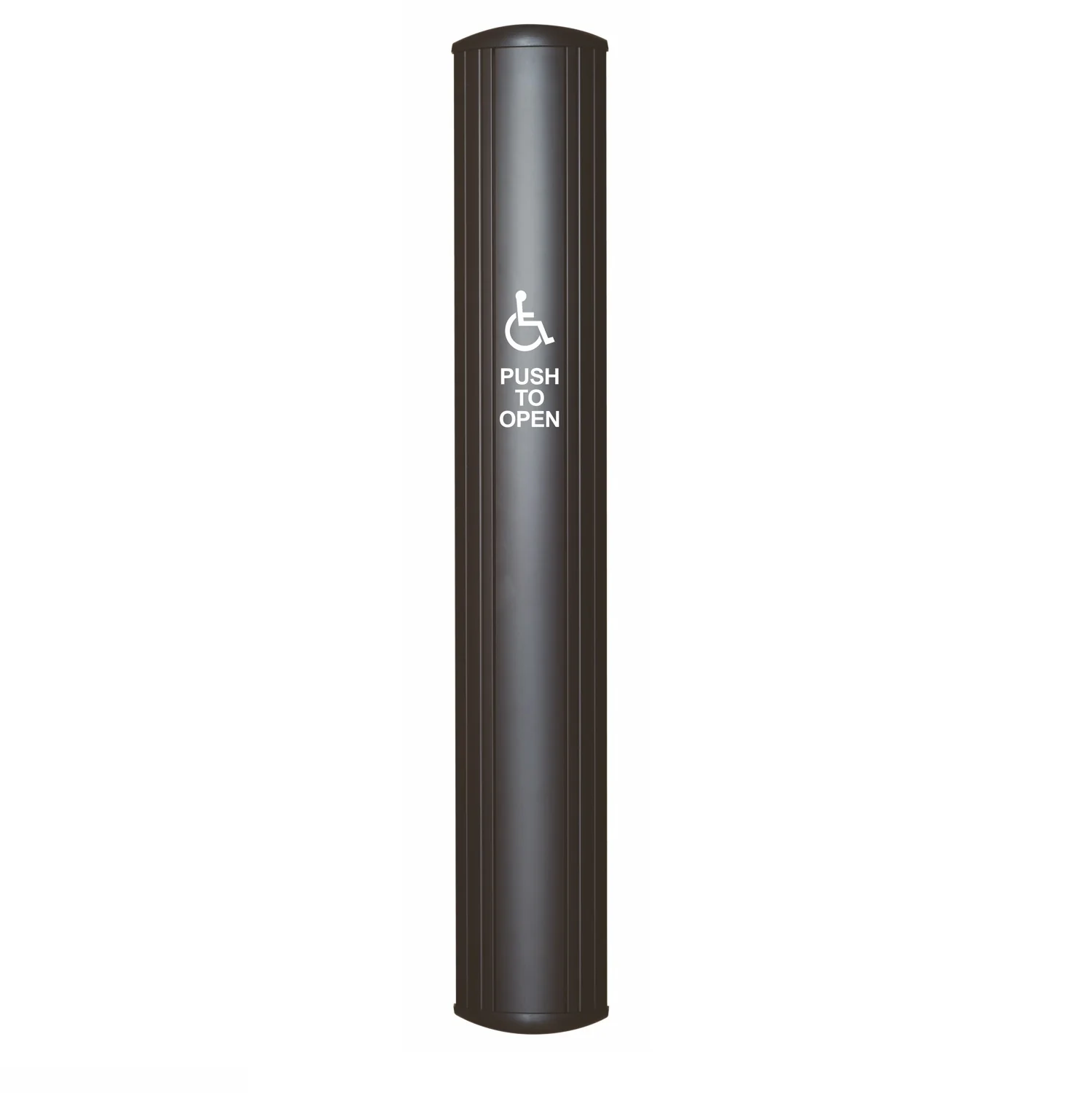

The CM-74/75 & CM-84/85 Series Column™ Push Plate Switches are stylish, heavy-duty push switches designed for automatic door operators. Their narrow, vertical profile makes these push plates ideal for modern entrances and architectural applications. Their durable construction and high-quality finish ensure they are well-suited for high-traffic use in commercial and public environments.
Product Series: CM-74/75 & CM-84/85
Product Type: Column™ Push Plate Switches
Application: Automatic Door Activation
Switch Type: Momentary SPST
Contact Rating: 3 A @ 30 VDC
ADA Compliant: Yes
Operating Temperature: -40°F to 140°F (-40°C to +60°C)
Faceplate Materials: Stainless Steel or Aluminum
Mounting Options: Surface Mount and Jamb Mount
Standard Finish: US32D Satin Stainless Steel
CM-74 Series Width: 4.5" Wide
CM-75 Series Width: 6" Wide
CM-84 Series Width: 4.5" Wide
CM-85 Series Width: 6" Wide
CM-74 / CM-84 Dimensions: 42.5"L x 5.5"W x 3"H
Metric Dimensions: 1080mm x 140mm x 76mm
CM-75 / CM-85 Dimensions: 40.5"L x 8.5"W x 4.5"H
Metric Dimensions: 1029mm x 216mm x 114mm
CM-74 / CM-75: Top Load surface mount design
CM-84 / CM-85: Side Load two-piece surface mount design
CM-74: Narrow Column™ push plate switch
CM-75: Illuminated Column™ push plate switch
CM-84: Architectural Column™ push plate switch
CM-85: Illuminated architectural Column™ push plate switch
Construction: Heavy-duty architectural metal construction
Operation: Ultra quiet switch activation
Design: Slim vertical Column™ profile
Graphics: Permanently engraved or debossed symbols
Accessibility: ADA compliant models available
Installation: Easy mounting and wiring
Application: Suitable for commercial and public access doors
Warranty: 3-year warranty
The Camden Controls CM-74/75 & CM-84/85 Series Column™ Push Plate Switches are innovative column-style switches for automatic doors and access automation. Their vertical design provides a significantly larger activation surface than traditional push plates, allowing users to operate automatic doors easily and intuitively. The Column™ Series is specifically engineered for high-traffic buildings where accessibility, visibility, and ease of use are paramount.

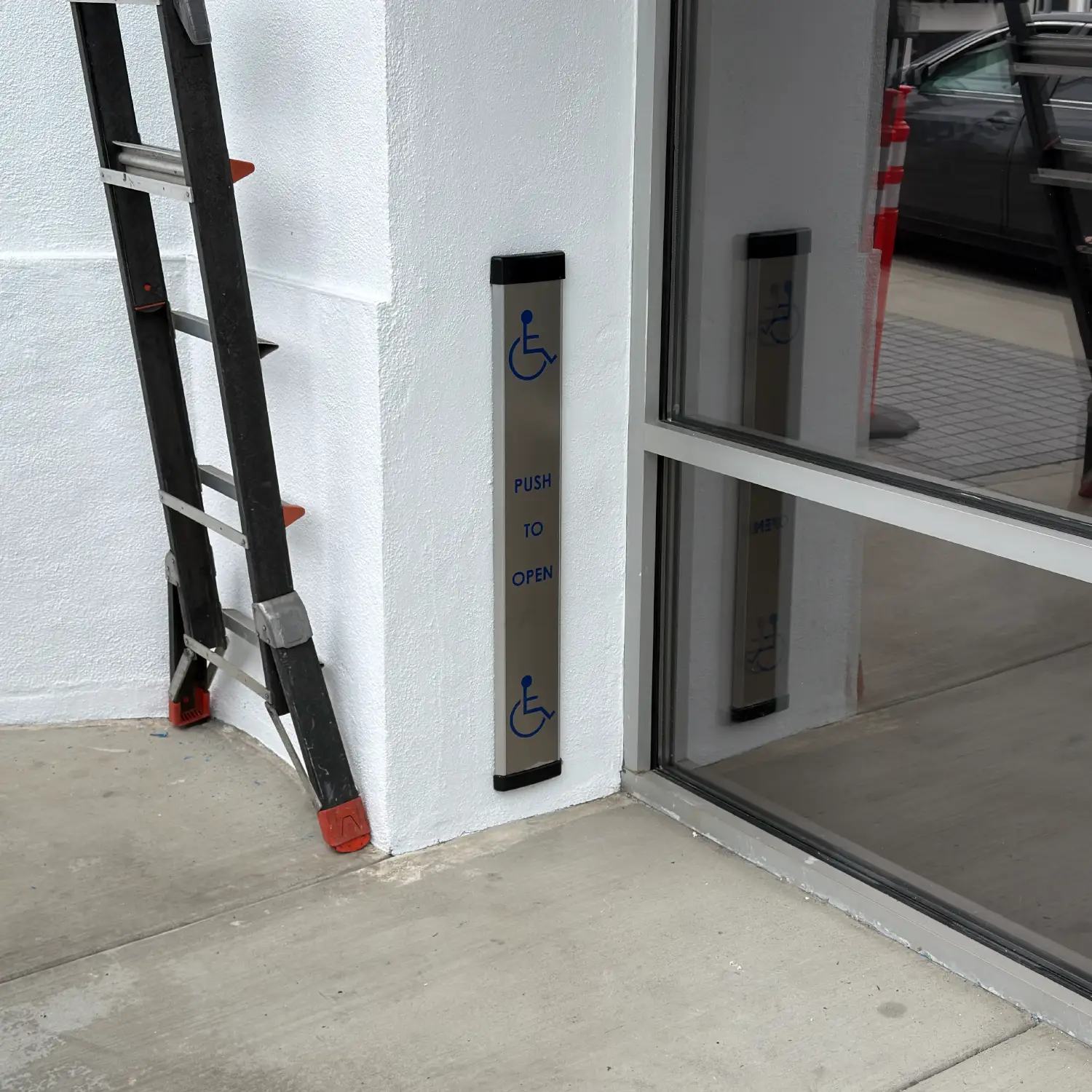

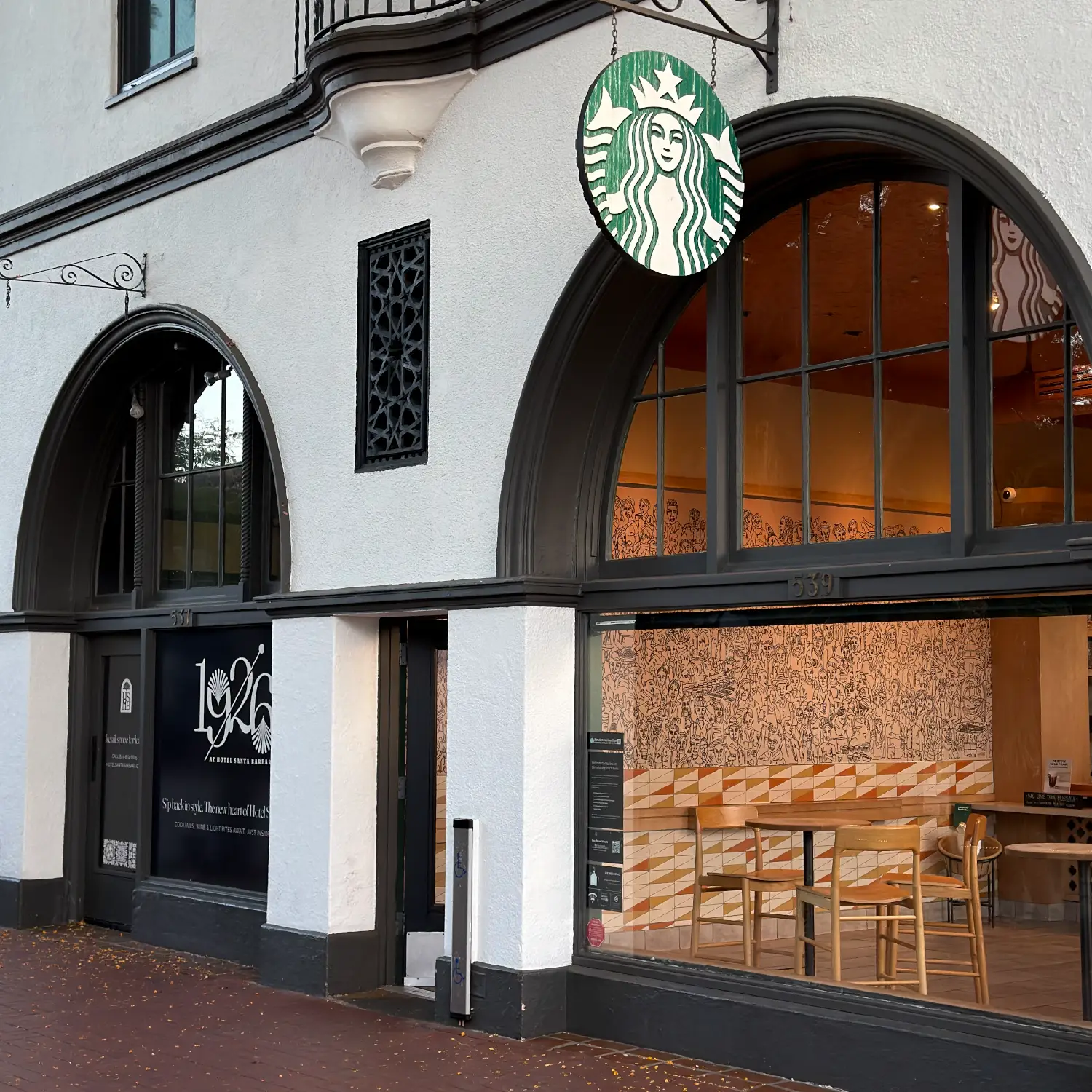

The CM-74/75 and CM-84/85 switches are widely used for automatic sliding doors, swinging doors, and entryways in hospitals, healthcare facilities, airports, shopping centers, educational institutions, office buildings, and public facilities. The large vertical activation surface allows visitors to trigger the door with a hand, arm, or elbow, contributing to a user-friendly and accessible entrance. This makes the Column™ Series particularly well-suited for locations with high foot traffic.
A key advantage of the Camden Column™ Push Plate Switches is their excellent visibility. The striking design immediately catches the visitor's eye, clearly indicating where the automatic door can be activated. This guides users to the activation point more quickly, improving traffic flow and optimizing the user experience. This is especially valuable in busy commercial and public environments.

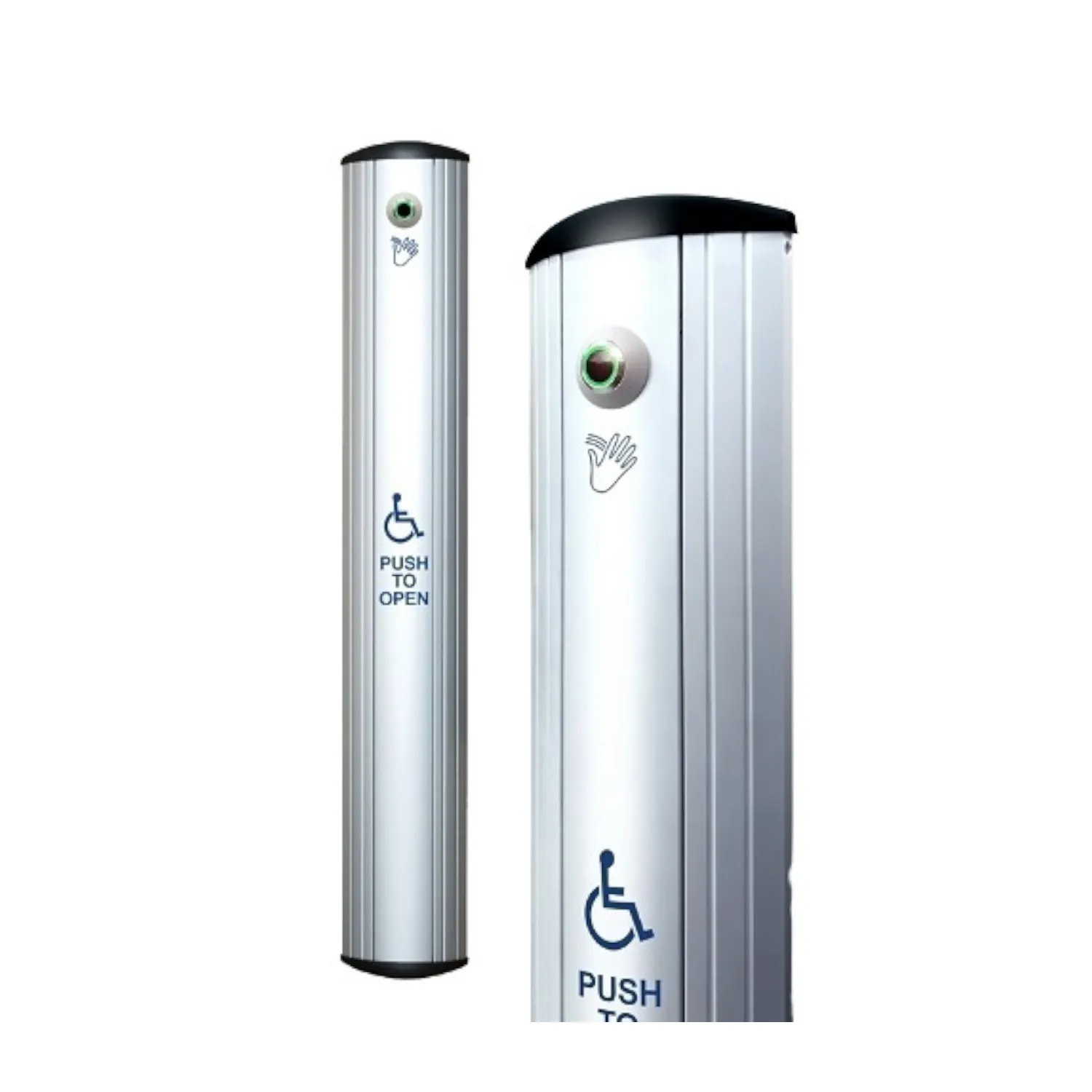

The CM-74/75 & CM-84/85 Series are available in various widths, finishes, and configurations. Additionally, several models can be supplied with integrated wireless technology or hands-free sensors. This allows installers and building managers to select a solution that perfectly matches project requirements. The robust aluminum and stainless steel construction ensures a long service life and reliable operation, even in environments with intensive daily use.
Camden Column™ switches are compatible with most automatic door operators and access control systems. As a result, they can be easily integrated into both new installations and renovation projects. Thanks to their modular design and various mounting options, the CM-74/75 and CM-84/85 are suitable for a wide range of architectural applications, including glass storefronts, aluminum entrances, and commercial facade systems.
Beyond their functional benefits, Column™ Push Plate Switches contribute to a modern and professional entrance aesthetic. Architects and consultants frequently choose this solution for its combination of design, accessibility, and reliability. Consequently, the CM-74/75 & CM-84/85 Series are a popular choice within the automatic door and professional access automation market.
For organizations seeking a durable, eye-catching, and user-friendly door activation solution, Camden Controls Column™ Push Plate Switches are an excellent choice. The combination of a large activation surface, high-quality materials, and broad integration capabilities makes this series one of the most advanced push plate solutions for modern buildings.
