The Camden CM-110 & CM-550 Series surface mount keypads are designed for demanding access control applications where durability, security, and reliability are paramount. With their all-metal construction, IP68 rating, and support for up to 20,000 users, these keypads are an ideal solution for commercial buildings, industrial sites, apartment complexes, and automatic doors.
Product Series: CM-110 & CM-550 Series
Product Type: Surface Mount Keypads
Application:
Access Control
Automatic Doors
Electric Locks
Overhead Doors
Industrial Equipment Control
User Capacity: Up to 20,000 Users
Construction: All Metal Construction
Keypad Type: Backlit Metal Keypad
Protection Rating: IP68 Weather Resistant
Operating Voltage:
10-28V AC/DC (CM-550SK)
12V DC (CM-110SK)
Current Draw:
100mA @ 12V (CM-550SK)
60mA @ 12V (CM-110SK)
Contact Type:
(2) Form C Relays (CM-550SK)
(1) Form C Relay (CM-110SK)
Contact Rating:
1A @ 30VDC (CM-550SK)
3A @ 30VDC (CM-110SK)
Operating Temperature:
-40°F to +140°F (-40°C to +60°C)
Mounting Type: Surface Mount
Warranty: 3 Year Warranty
CM-550SK: 5" H x 3-1/4" W x 1-1/8" D
Metric Dimensions: 127mm x 82mm x 29mm
CM-110SK: Slim Line Narrow Jamb Surface Mount Keypad
CM-550SK: Surface Mount Keypad

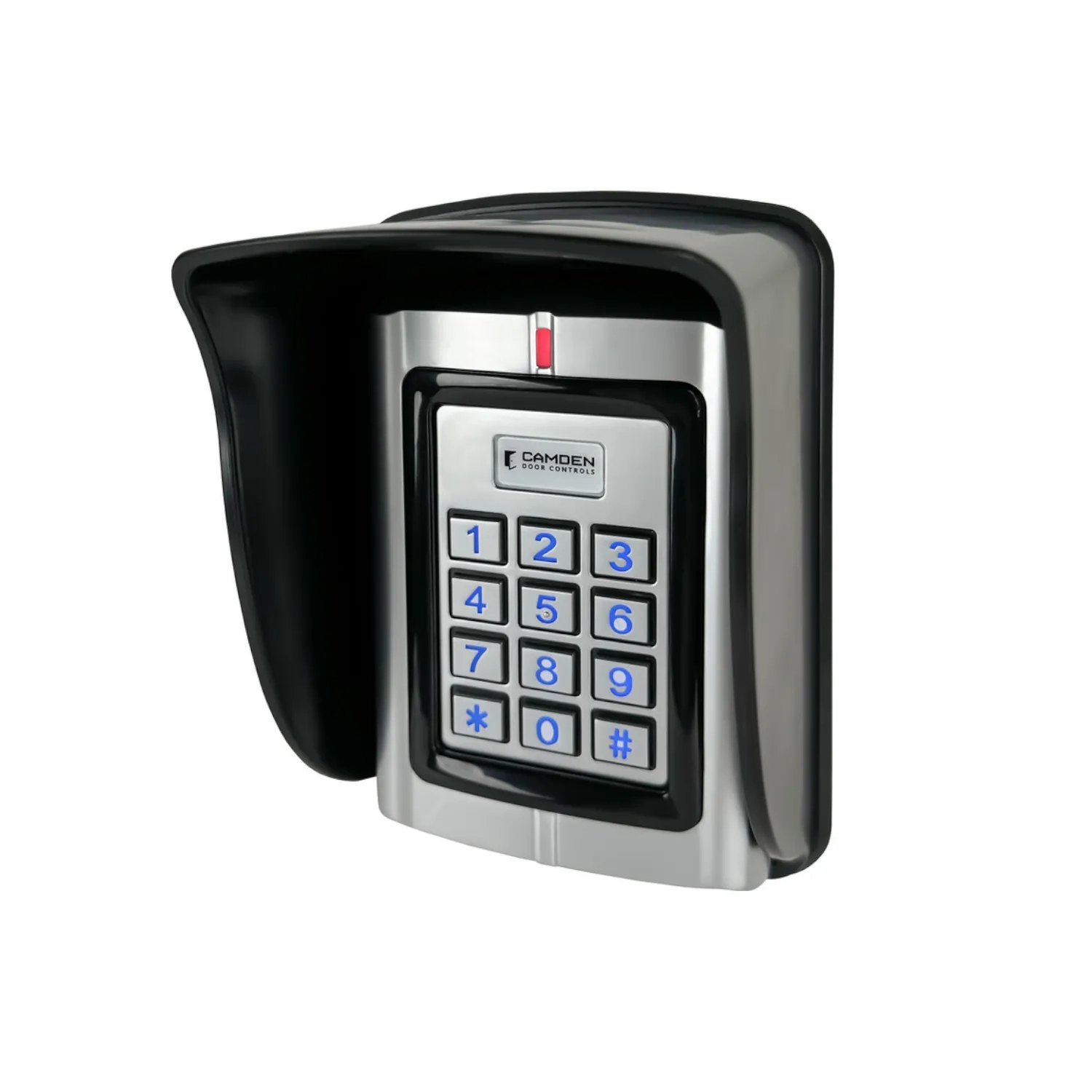

CM-550SK-V3: Surface Mount Keypad with Rain/Privacy Shield
Capacity: Supports up to 20,000 users
Protection: IP68 weather-resistant design
Security: Tamper alarm output
Monitoring: Door forced open and door ajar monitoring
Control: Adjustable door delay and unlock time
Integration: Request-to-Exit input
Construction: Cast metal housing
Keypad: Illuminated vandal-resistant metal keys
Output: Wiegand output available on CM-110SK
Installation: Surface mount installation
The Camden CM-110 & CM-550 Series Surface-Mount Keypads offer a robust and professional solution for access control in environments where reliability and resistance to vandalism are essential. The series is designed for installers and security specialists looking for a durable keypad for both indoor and outdoor applications.
Unlike standard keypads, the CM-110 & CM-550 series features a full metal housing and illuminated metal keys. This makes the keypads resistant to intensive daily use, vandalism, and harsh weather conditions. With an IP68 rating, the keypads can be used without issue in outdoor environments where rain, dust, and temperature fluctuations are a factor.
The series supports up to 20,000 user codes, making it highly suitable for larger access control systems within offices, healthcare facilities, educational buildings, logistics centers, industrial facilities, and apartment complexes. Thanks to the extensive programming options, user rights can be easily managed and adjusted to meet changing security requirements.
In addition to traditional door applications, the keypads can also be used to operate automatic doors, overhead doors, barriers, machinery, and other electrical installations. This makes the series a versatile solution for both access control and industrial automation.
For added security, the keypads feature a tamper alarm, door status monitoring, door-forced-open alarm, and a Request-to-Exit input. This allows installers to implement advanced access control functions without installing additional components. The adjustable door delays and opening times also provide maximum flexibility when configuring the installation.

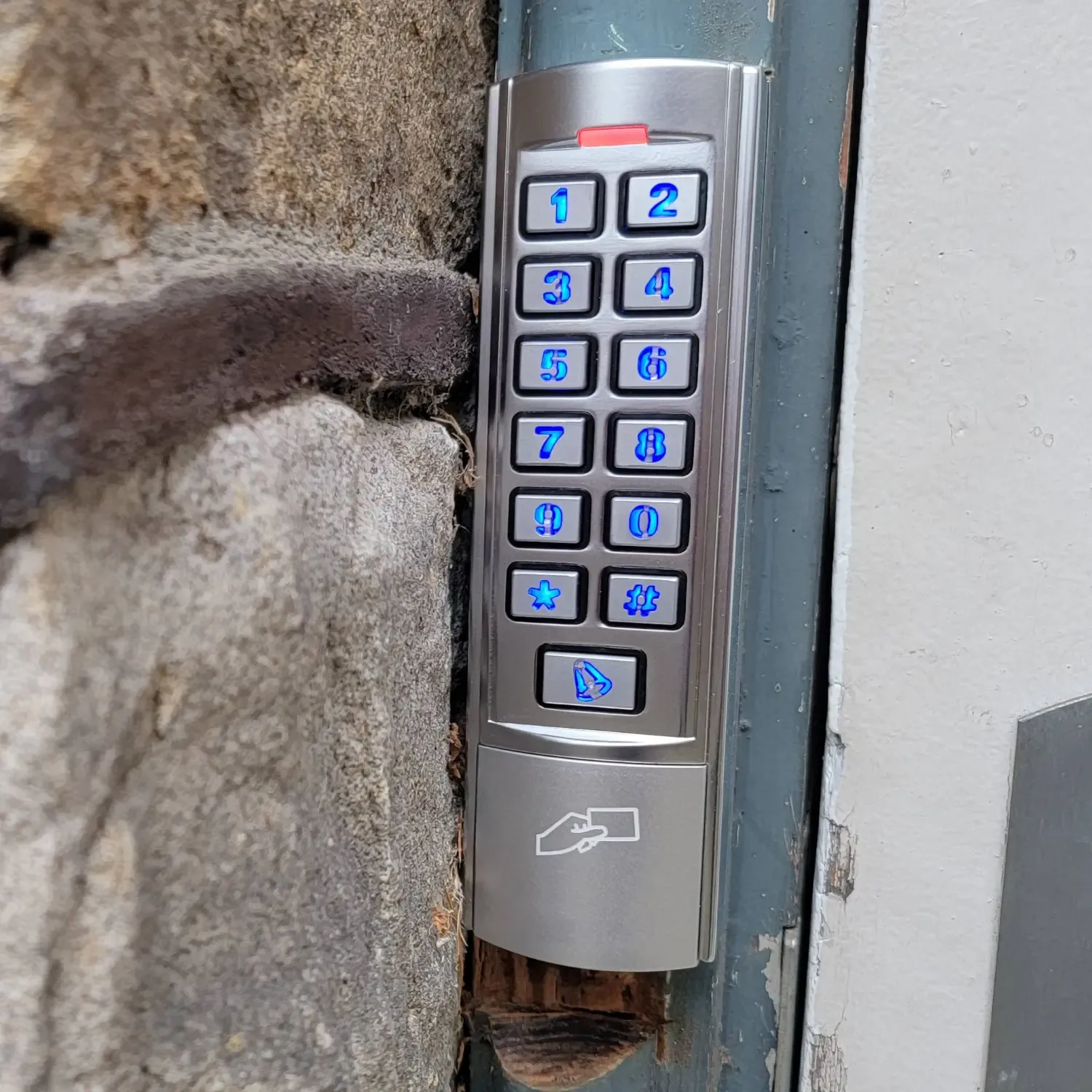

The series consists of two versions. The CM-110SK is a narrow jamb-style model that is ideal for aluminum door frames and locations with limited mounting space. The CM-550SK features a wider surface-mount housing and is suitable for standard access control installations. Both models offer the same professional reliability and security features.
For installers looking for a durable, weather-resistant, and vandal-resistant keypad for professional access control, the Camden CM-110 & CM-550 Series is one of the strongest solutions in the Camden range.
