The Camden CM-120 Series offers professional access control keypads for automatic doors, access control, and security systems. With support for stand-alone operation, Wiegand integration, and wireless communication, this series provides a versatile solution for commercial buildings, healthcare facilities, schools, apartment complexes, and industrial applications.
Product Series: CM-120 Series
Product Type: Flush Mount Wired & Wireless Keypads
Application:
Access Control
Automatic Doors
Security Systems
Building Automation
Operation Modes:
Stand-Alone Access Control
Wiegand Output
Wireless RF Operation
User Capacity: 999 User Codes
Code Length: Up to 8 Digits
Response Time: 0.3 Seconds
Time Delay: 1-255 Seconds or Latched
Inputs:
1 x Request-to-Exit Input
1 x Door Contact Input
Wiegand Output: 26 Bit
Indicators:
3 LED Indicators
Piezo Buzzer
Operating Voltage: 12/24V AC/DC (wired models)
Dimensions: 4-1/2" x 2-3/4" x 3/4"
Metric Dimensions: 114mm x 70mm x 19mm
Mounting: Single Gang Flush Mount
CM-120i: Indoor keypad with polycarbonate keys

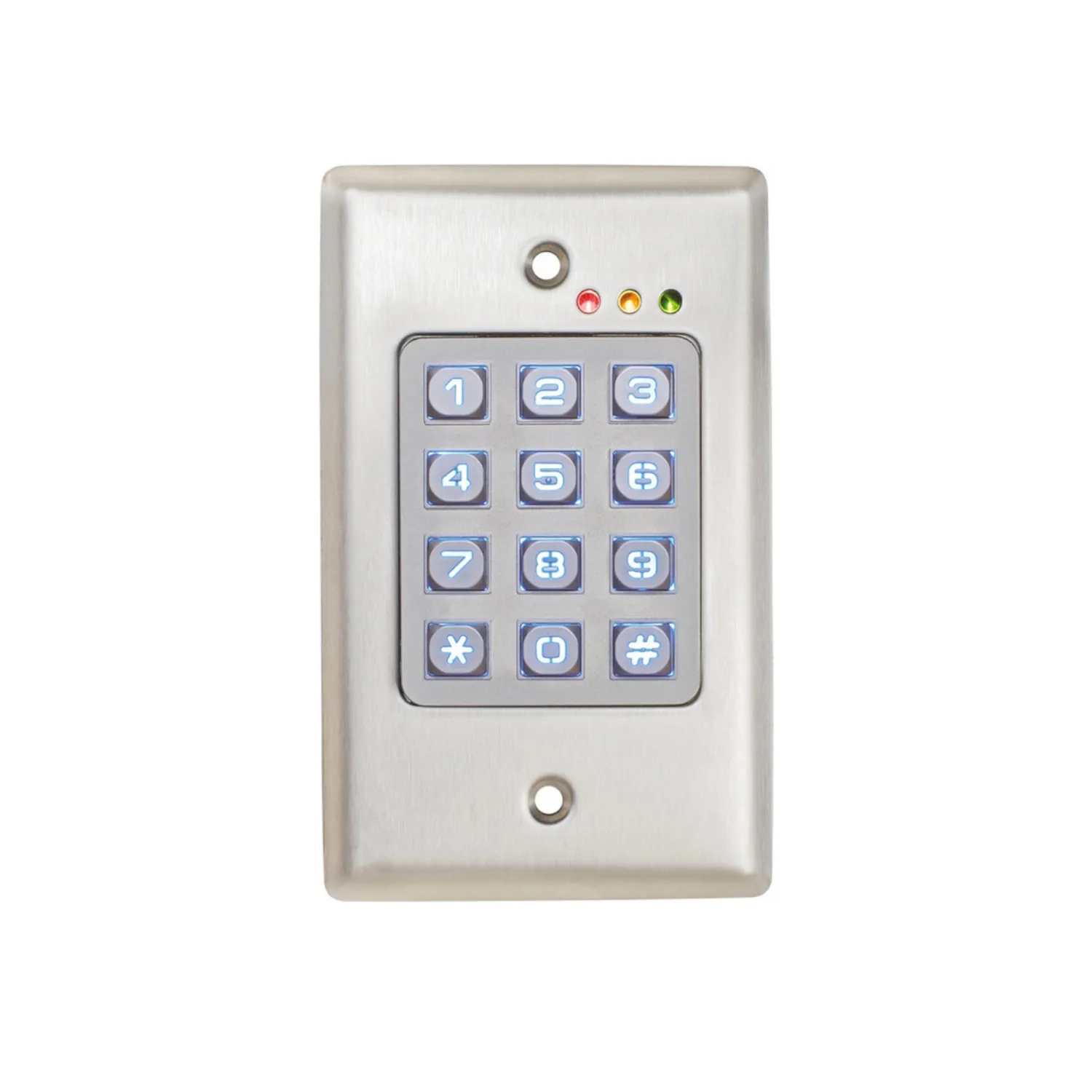

CM-120wV2: Outdoor vandal resistant metal keypad with backlit keys
CM-120TX: Wireless battery-powered keypad with integrated RF transmitter
Technology: Tri-Brid™ stand-alone, Wiegand and wireless operation
Security: Anti-tailgating and door-open alarm support
Access Control: Up to 999 programmable users
Wireless: Compatible with Camden Lazerpoint RF™ systems
Construction: Stainless steel faceplate
Installation: Flush mount single-gang design
Protection: Outdoor vandal resistant versions available
Integration: Compatible with automatic doors and access control systems
Warranty: 3-Year Warranty
The Camden CM-120 Series Access Control Keypads are designed for professional applications where reliable and flexible access control is required. The series combines high-quality construction, extensive programming capabilities, and multiple operating modes into a single platform, allowing installers to use one keypad series for a wide range of projects.
A key distinguishing feature of the CM-120 Series is its Tri-Brid™ technology, which allows the same keypad to function as a stand-alone access control system, as a Wiegand keypad for connection to external controllers, or as part of a wireless access control system. This enables installers to easily meet the specific requirements of a project without having to manage multiple product lines.
With support for up to 999 user codes , the series offers sufficient capacity for both small and large installations. User codes can be programmed with up to eight digits, ensuring a high level of security and flexibility. In addition, the keypad features a fast response time and adjustable relay delays, making the solution easy to tailor to automatic doors, electric strikes, magnetic locks, and other access control applications.
For commercial installations, Camden offers various versions within the same series. The CM-120i is designed for indoor applications and offers an excellent price-performance ratio for standard access control projects. The CM-120wV2 features an illuminated metal keypad and a vandal- and weather-resistant construction for outdoor use. For locations where wiring is difficult or costly, the CM-120TX offers a completely wireless solution with an integrated Lazerpoint RF™ transmitter and battery power.
The keypad also includes various professional features such as a Request-to-Exit input, door contact input for door status monitoring, anti-tailgating functionality, and a global lockout function. This allows the CM-120 Series to be used in advanced access control systems where security and management are paramount.
Thanks to the robust stainless steel faceplate, easy installation, and broad compatibility with existing access control systems, the Camden CM-120 Series is an excellent choice for installers looking for a reliable keypad solution for professional door automation and access control.
