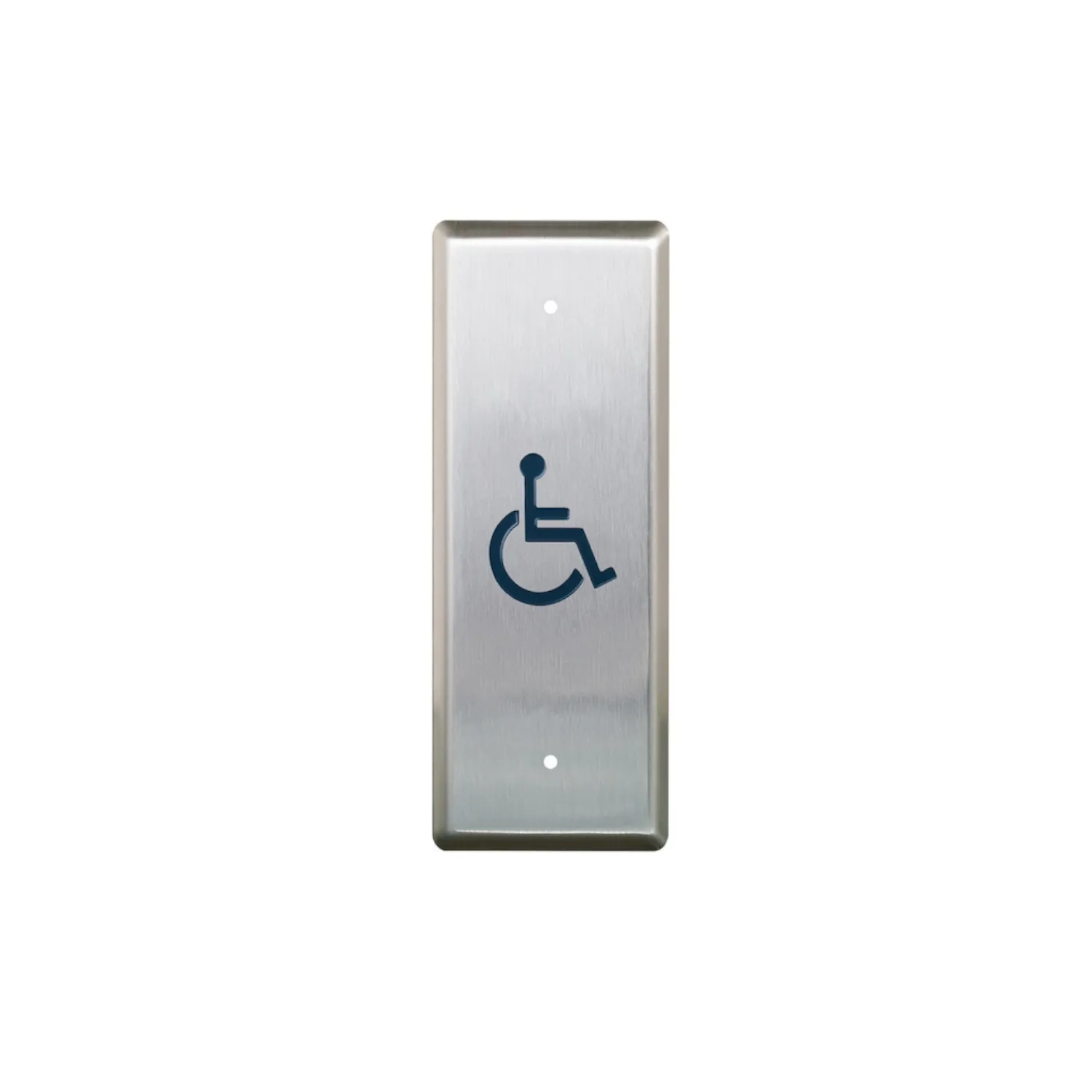

High-quality narrow push plate switches for automatic door operators. These robust push switches are specifically designed for heavy-duty use in commercial and public environments. Thanks to their slim profile, ADA compliance, and durable finish, they are ideal for aluminum door frames, narrow mounting locations, and accessible entrances.
Product Series: CM-25, CM-26CB & CM-35
Product Type: Narrow Push Plate Switches
Application: Automatic Door Activation
Contact Type: N/O SPST
Switch Type: Momentary
Contact Rating: 3 A @ 30 VDC
ADA Compliant: Yes
Operating Temperature: -40°F to 140°F (-40°C to +60°C)
Standard Finish: US32 / C32D
Faceplate Materials: Stainless Steel, Aluminum or Solid Brass
Mounting Options: Jamb Mount, Single Gang Mount, Surface Box Mount
Dimensions: 4-3/16" x 1-3/4" x 1-3/16"
Metric Dimensions: 113mm x 44mm x 30mm
Dimensions: 4-1/2" x 2-3/4" x 1-3/16"
Metric Dimensions: 114mm x 70mm x 30mm
CM-25: Vertical narrow push plate switch
CM-25H: Horizontal narrow push plate switch
CM-26CB: Blue narrow push plate switch with white graphics
CM-35: Single gang narrow push plate switch
CM-35N: Narrow single gang faceplate with jamb mount back plate
Construction: Durable stainless steel construction
Operation: Ultra quiet operation
Actuation: Minimal actuation force required
Graphics: Permanent debossed or laser engraved graphics
Warranty: 3-year warranty
The Camden Controls CM-25, CM-26CB, and CM-35 series are high-quality narrow push plate switches for activating automatic doors in commercial, public, and healthcare environments. Thanks to their slim design, these push switches are particularly well-suited for mounting on aluminum door frames, narrow wall surfaces, and other locations where standard push plates do not fit.
The CM-25, CM-26CB, and CM-35 push plate switches are designed for intensive daily use, combining robust construction with optimal accessibility. The switches are ADA-compliant and provide a reliable solution for automatic sliding doors, swing doors, entry doors, and other door automation systems. This makes them ideal for offices, hospitals, healthcare facilities, schools, government buildings, shopping centers, and industrial sites.
The CM-25 was specifically developed for mounting on metal door frames and narrow surfaces. The CM-26CB stands out with its striking blue finish and white symbols for maximum visibility. The CM-35 meets the latest accessibility requirements and is designed for mounting on a standard single-gang electrical box. All models are available with various symbols and finishes, including stainless steel, aluminum, and solid brass.
Thanks to their durable materials, quiet operation, and minimal actuation force, these push plates offer a long service life and a comfortable user experience. The permanent engravings remain clearly visible even with intensive use, making the switches excellent for high-traffic entrances and public buildings.
For installers, system integrators, and building owners looking for a reliable and professional solution for automatic door control, the Camden CM-25, CM-26CB, and CM-35 series are a durable choice. The combination of a compact design, high-quality materials, and broad compatibility with automatic door systems makes this series one of the most widely used narrow push plate switches in modern access automation.
