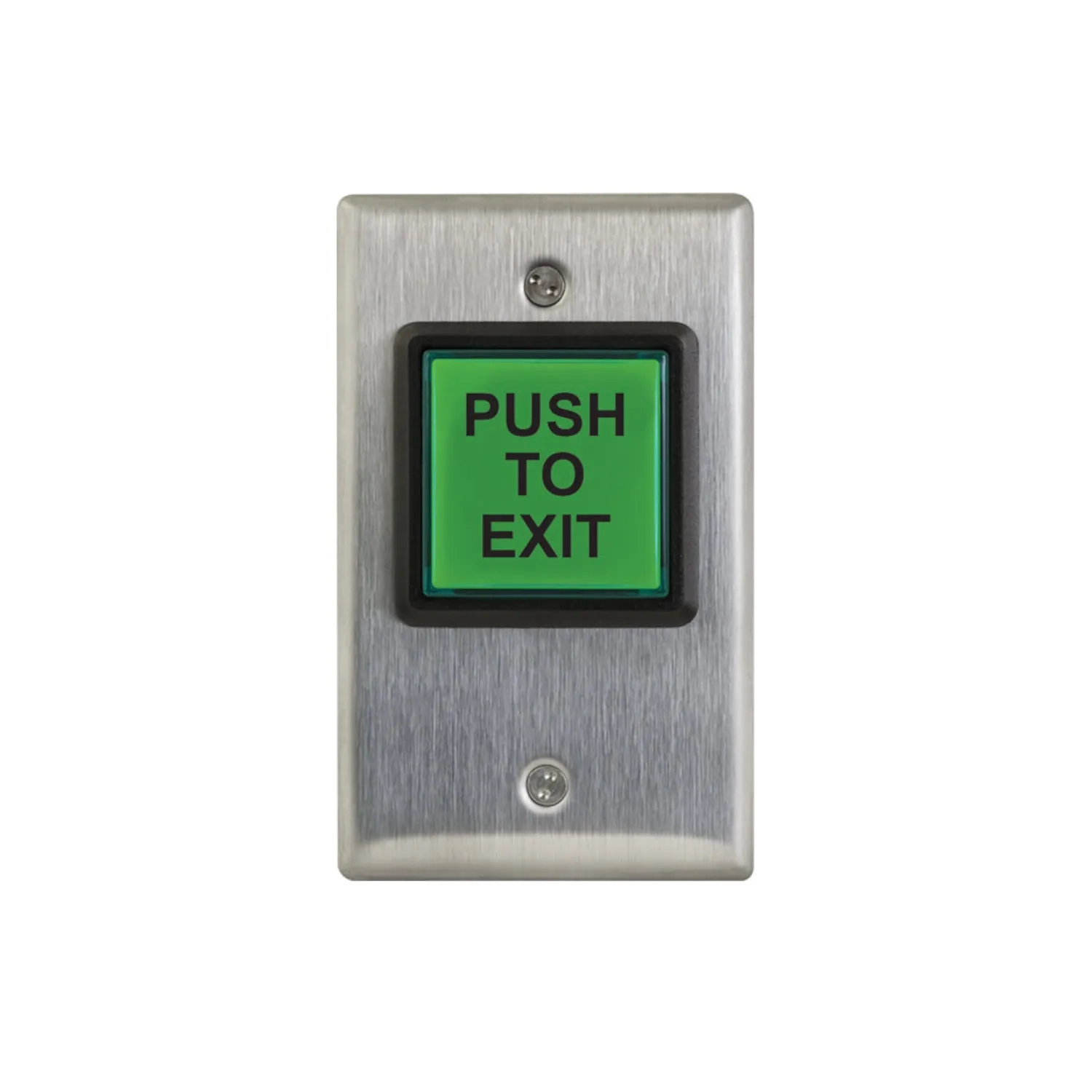

The CM-30EE/AT is a compact, LED-illuminated exit switch with an integrated timer for access control and automatic door operation. Thanks to its illuminated design, built-in timer, and durable construction, this switch is ideal for commercial, public, and secure environments where controlled exit operation is required.
Product Model: CM-30EE/AT
Product Type: 2" Square LED Illuminated Exit Switch with Timer
Application: Access Control and Automatic Door Activation
Activation Type: Push/Exit Switch
Illumination: LED illuminated activation area
Timer Function: Adjustable pneumatic timer
Switch Output: SPDT Relay Output
Operating Voltage: 12/24 V AC/DC
Faceplate Material: Stainless Steel
Mounting Type: Single Gang Mount
Environmental Rating: Indoor Use
ADA Compliant: Yes
Faceplate Dimensions: 2" x 2"
Metric Dimensions: 51mm x 51mm
Construction: Heavy-duty stainless steel construction
Illumination: Bright LED illuminated activation area
Timer: Integrated adjustable timer functionality
Operation: Reliable momentary switch activation
Visibility: Enhanced visibility in low-light environments
Installation: Easy wiring and installation
Application: Suitable for commercial and secured access doors
Warranty: 3-year warranty
The Camden Controls CM-30EE/AT is a high-quality illuminated LED exit switch with an integrated timer function for automatic doors, access control, and door automation. This compact 2-inch square switch combines clear visual indication with intelligent timing functionality, allowing users to activate automatic doors easily and reliably in a wide range of commercial and public environments.
The CM-30EE/AT is specifically designed for applications where controlled door activation is required. Thanks to the built-in timer, the output duration can be precisely adjusted, making the switch ideal for situations where automatic doors need to remain open for a predetermined period. This makes the product particularly suitable for healthcare facilities, hospitals, offices, schools, shopping centers, hotels, and other high-traffic buildings.
The integrated LED lighting ensures the switch is immediately visible to visitors and staff. Even in poorly lit areas, the activation point remains clearly recognizable, contributing to improved accessibility and user experience. The illuminated design helps visitors intuitively locate the automatic door control and supports the safe flow of people.
A key advantage of the CM-30EE/AT is the combination of a compact design and extensive functionality. While standard push buttons only provide an activation signal, this version offers additional control thanks to the integrated timer. This allows the switch to be used in projects with specific door control requirements or where a longer opening duration is desired for foot traffic, transport carts, or users with disabilities.
The Camden CM-30EE/AT is designed for long-term, intensive use. High-quality materials and reliable electronics ensure consistent performance, even in busy buildings where hundreds or thousands of activations occur daily. Thanks to its robust construction and low-maintenance operation, this switch is a durable investment for both new installations and renovation projects.
The switch is compatible with most automatic door operators and access control systems. As a result, the CM-30EE/AT can be easily integrated into existing infrastructures and modern access solutions. Installers benefit from a flexible solution with extensive application possibilities, while building managers can rely on dependable and professional door control.
For organizations looking for a compact, illuminated, and intelligent solution for automatic door activation, the Camden Controls CM-30EE/AT is an excellent choice. The combination of LED lighting, timer functionality, and durable performance makes this exit switch particularly well-suited for professional applications in access control and door automation.
