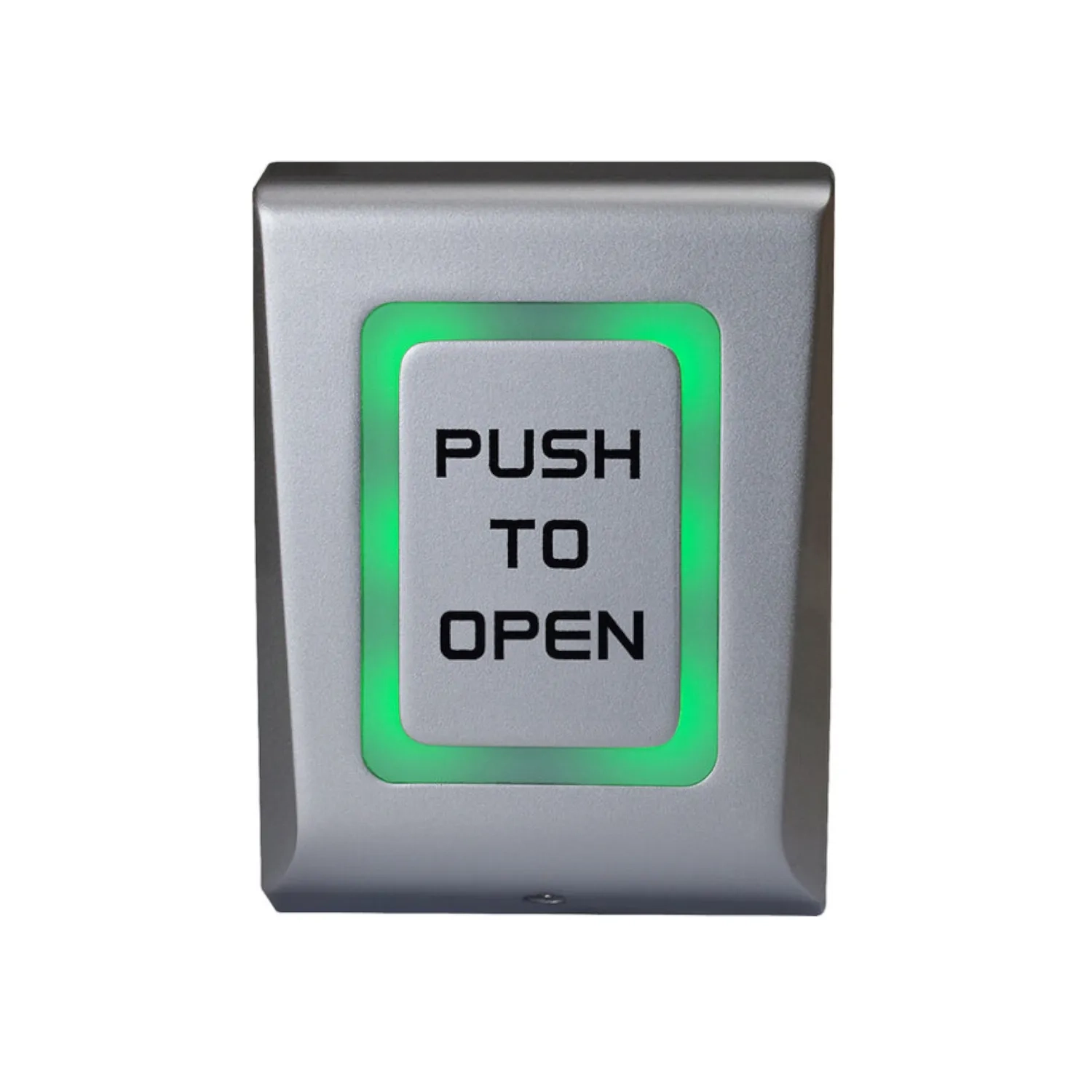

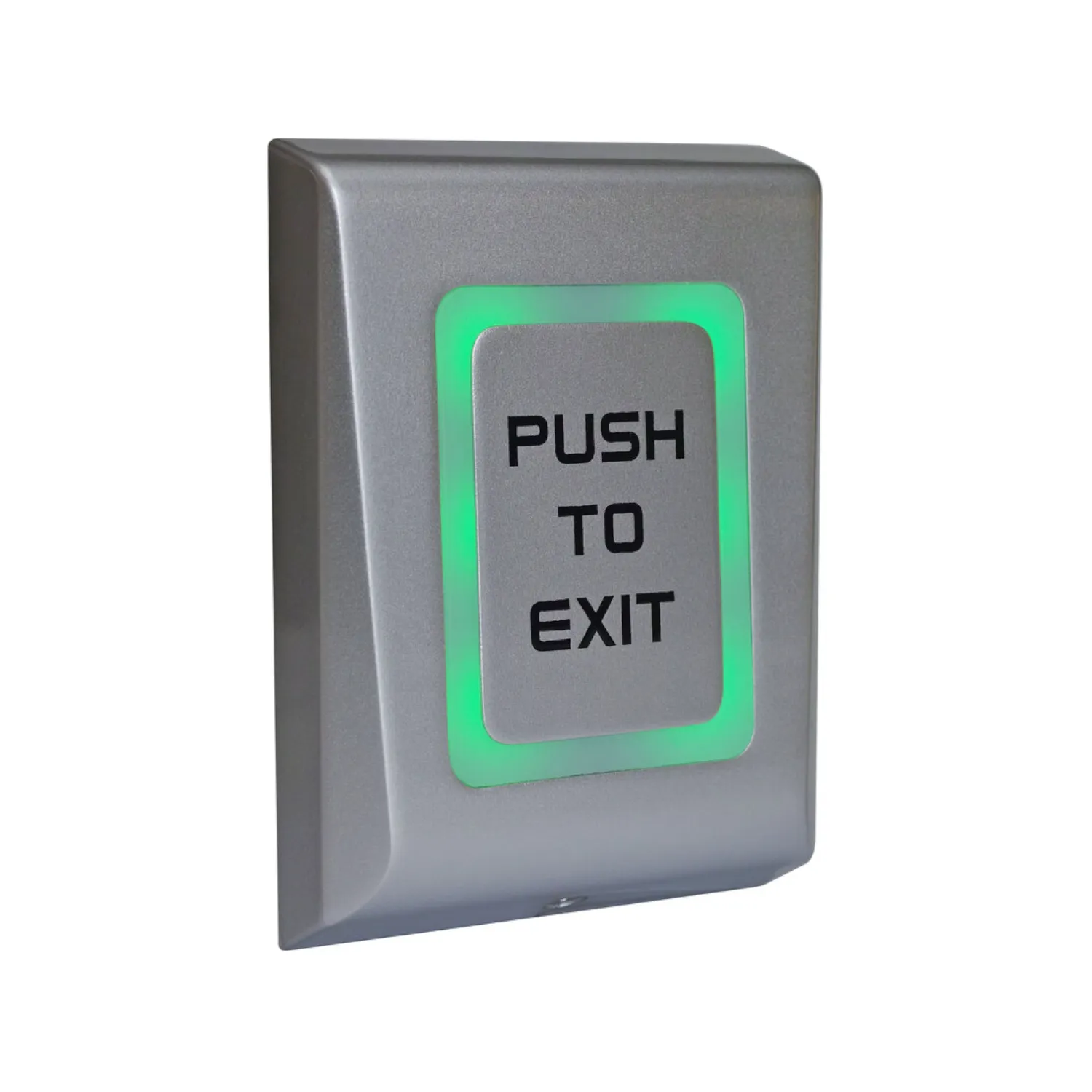

The CM-9800 is a vandal-resistant capacitive push/exit switch with integrated LED illumination for automatic door control and access control applications. Thanks to its touchless operation, robust metal construction, and modern design, this switch is ideal for high-traffic commercial, public, and secure environments.
Product Model: CM-9800
Product Type: Illuminated Capacitive Push/Exit Switch
Application: Access Control and Automatic Door Activation
Activation Type: Capacitive Touchless Activation
Illumination: LED illuminated status indicator
Switch Output: SPDT Relay Output
Operating Voltage: 12/24 V AC/DC
Current Draw: Low power consumption
Faceplate Material: Stainless Steel
Mounting Type: Single Gang Mount
Environmental Rating: Indoor and Outdoor Use
ADA Compliant: Yes
Faceplate Dimensions: 4-1/2" x 2-3/4"
Metric Dimensions: 114mm x 70mm
Mounting Type: Single Gang Mount
Construction: Vandal resistant stainless steel design
Operation: Touchless capacitive activation
Illumination: Integrated LED status indication
Durability: Designed for high-traffic environments
Hygiene: Reduces physical contact points
Installation: Easy wiring and mounting
Application: Suitable for commercial, healthcare and public facilities
Warranty: 3-year warranty
The Camden Controls CM-9800 is a high-quality illuminated capacitive exit switch for automatic doors, access control, and door automation. Unlike traditional mechanical push buttons, the CM-9800 uses capacitive touch technology, meaning a light touch is all that is needed to activate the door. This provides a modern user experience, increased reliability, and a longer service life due to the absence of moving parts.
The CM-9800 is designed for applications where durability, hygiene, and vandal resistance are essential. Thanks to its robust construction and vandal-resistant design, this capacitive switch is ideally suited for public buildings, healthcare facilities, educational institutions, airports, stations, shopping centers, and other high-traffic environments. The solid metal housing offers excellent protection against damage, while the capacitive technology ensures consistent and reliable activation.
A key advantage of the CM-9800 is its integrated LED lighting. The illuminated ring ensures the switch is immediately visible to users, even in poorly lit areas or during evening use. This contributes to a better user experience and supports building accessibility. Furthermore, the visual feedback makes it immediately clear where the automatic door can be activated.
Because the CM-9800 requires no mechanical pressing motion, wear and tear are kept to a minimum. This makes the switch ideal for locations where thousands of activations occur daily. In addition, the capacitive technology offers hygiene benefits, as only a light touch is required to operate the door. This makes the CM-9800 a popular choice for hospitals, care facilities, laboratories, and other environments where reducing contact is desired.

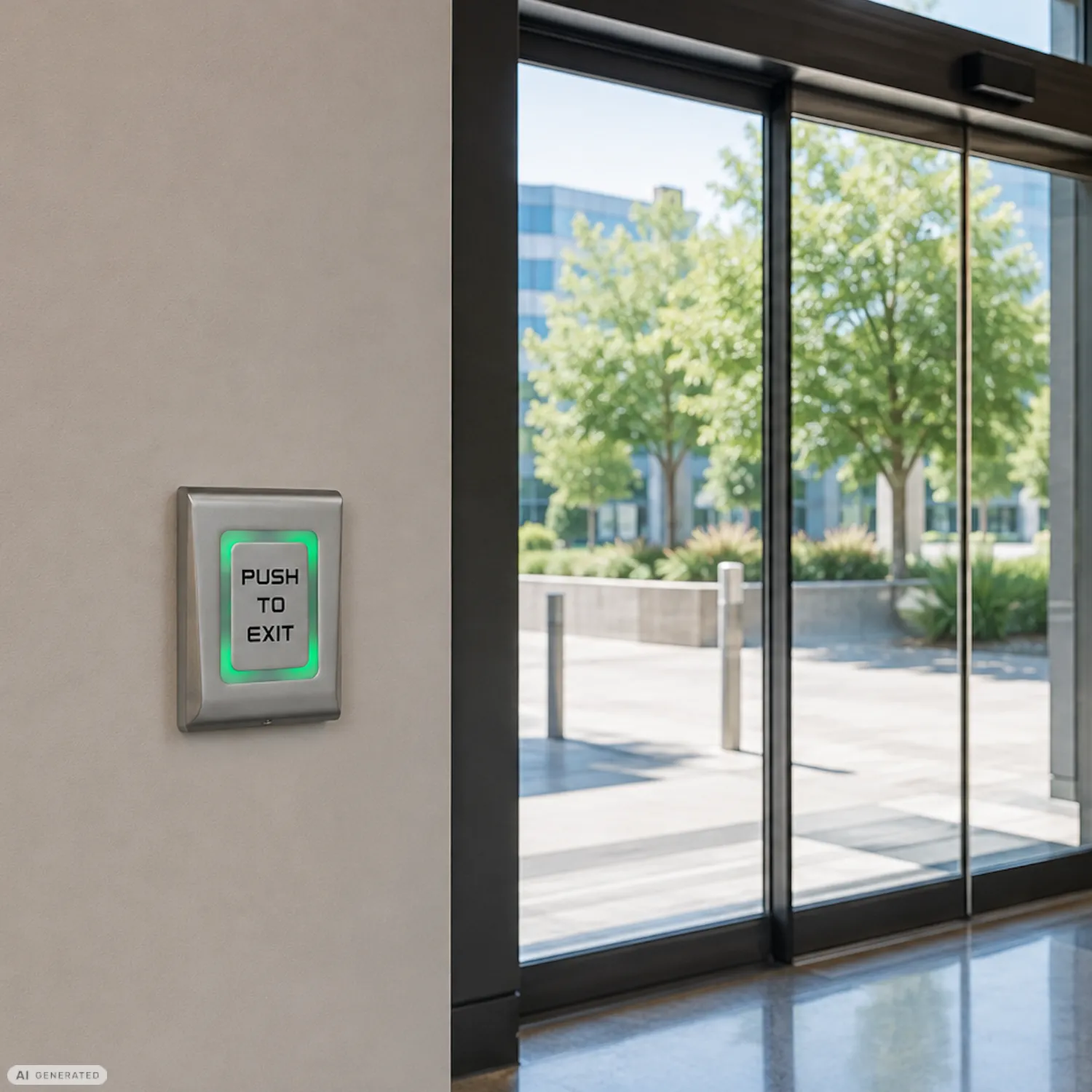

The Camden CM-9800 is compatible with virtually all automatic door operators and access control systems. As a result, the switch can be easily integrated into new installations or existing systems. Installers benefit from a reliable solution with a professional appearance, while building managers can count on minimal maintenance costs and long-term performance.
In addition to its functional benefits, the modern design of the CM-9800 contributes to a high-end look for any entrance. The combination of LED lighting, capacitive technology, and a vandal-resistant construction makes this switch particularly suitable for modern buildings where design, safety, and reliability converge.
For organizations looking for a durable, low-maintenance, and professional solution for automatic door operation, the Camden Controls CM-9800 is an excellent choice. Thanks to its advanced capacitive technology, illuminated operation, and robust design, this switch is among the most innovative door activation solutions in the access automation market.
