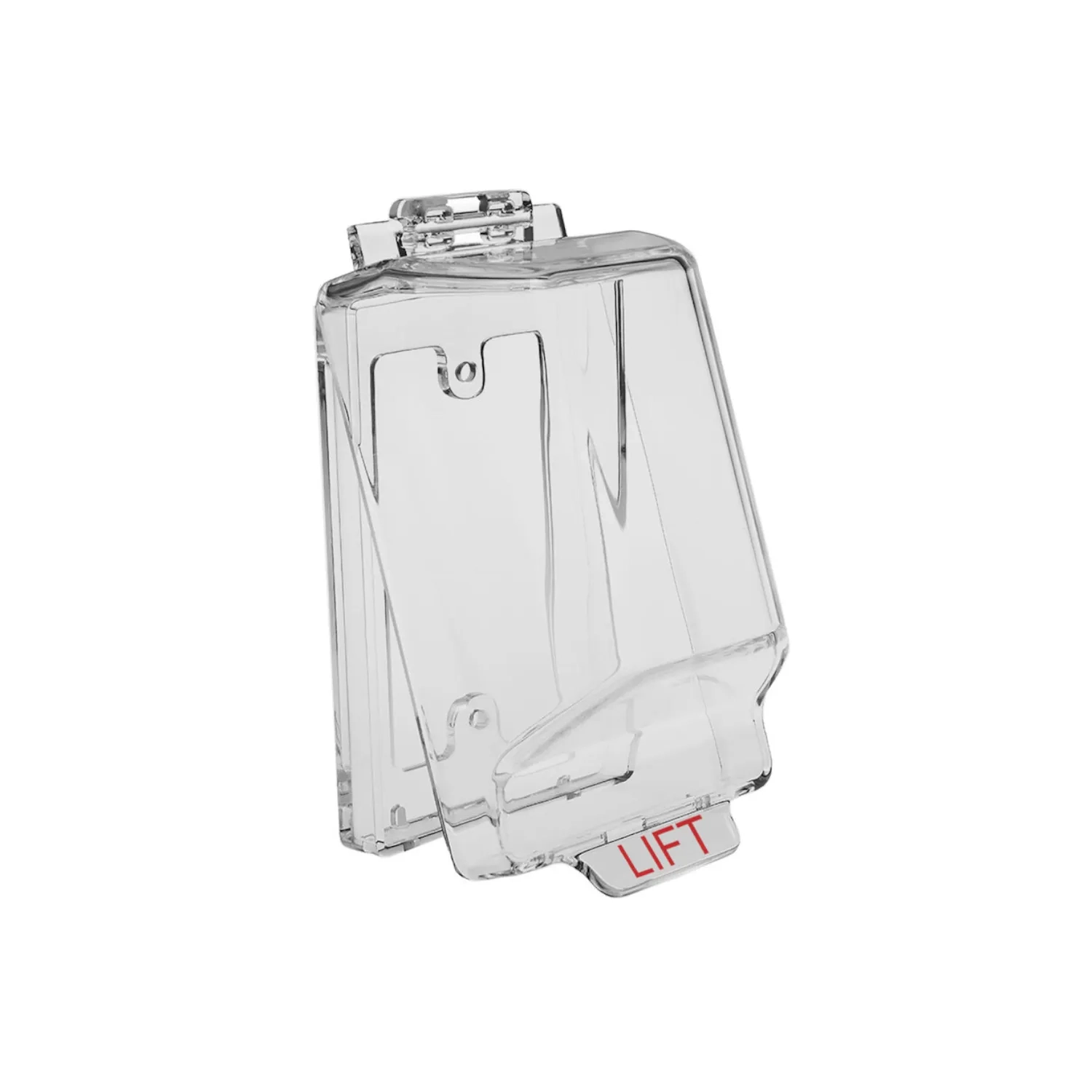

The CM-CPC1 is a transparent protective cover for flush-mount push buttons, key switches, and keypads. This impact-resistant polycarbonate cover protects against weather, dust, vandalism, and accidental activation without hindering device operation. Ideal for both indoor and outdoor applications in commercial, industrial, and public environments.
Product Model: CM-CPC1
Product Type: Protective Switch Cover
Application: Protection for Push Buttons, Key Switches and Keypads
Mounting Type: Flush Mount
Material: Clear Molded Polycarbonate
Protection: Weather Resistant and Vandal Resistant
Application Environment: Indoor and Outdoor Use
Cover Style: Lift-Up Protective Cover
Projection from Wall: Less than 2"
Gasket Included: Yes
Warranty: 3 Years
Dimensions: 6-5/16" H x 3-1/2" W x 1-15/16" D
Metric Dimensions: 160mm x 89mm x 49mm
Compatible Devices: Flush Mount Push/Exit Switches
Compatible Devices: Flush Mount Key Switches
Compatible Devices: Flush Mount Keypads
Not Compatible With: Pull Stations
Construction: Heavy-duty impact-resistant polycarbonate
Protection: Weather, dust, and vandal resistant
Visibility: Clear transparent cover design
Operation: Does not restrict device operation
Installation: Supplied with mounting gasket
Application: Suitable for commercial, industrial, and public facilities
The Camden Controls CM-CPC1 is a transparent protective cover for push buttons, key switches, and keypads in access control and door automation systems. This robust cover is specifically designed to protect door activation components from weather, dust, vandalism, and accidental activation. Thanks to its durable polycarbonate construction and transparent design, the underlying device remains fully visible and easy to operate.
The CM-CPC1 is widely used for automatic doors, access control systems, intercom installations, and secure entry points where extra protection is required. The cover prevents rain, snow, dust, and dirt from coming into direct contact with the push button or key switch. This extends the service life of the installation and ensures that components continue to function reliably under various environmental conditions.
A key advantage of the CM-CPC1 is its protection against unauthorized operation and vandalism. The transparent lift cover acts as a physical barrier that prevents push buttons from being accidentally activated or damaged. This makes the cover particularly suitable for public buildings, schools, hospitals, parking garages, industrial sites, and other environments where equipment is subject to intensive use or potential damage.
The cover is compatible with virtually all Camden flush-mount single-gang push buttons, push/exit switches, keypads, and key switches. Its universal design allows the CM-CPC1 to be easily integrated into both new installations and existing systems. The included gasket provides additional protection against moisture and dust, allowing the cover to be used both indoors and outdoors.
The transparent design ensures that any text, symbols, or LED indicators on the underlying switch remain fully visible. This maintains user-friendliness while providing the installation with extra protection. Furthermore, the impact-resistant polycarbonate construction offers high resistance to mechanical stress, making the CM-CPC1 a durable solution for professional applications.
For installers, system integrators, and building managers looking to extend the lifespan of door activation components while seeking protection against vandalism and weather, the Camden Controls CM-CPC1 offers a reliable and cost-effective solution. Combining transparency, durability, and easy installation, this protective cover is a valuable addition to almost any access control or door automation system.
