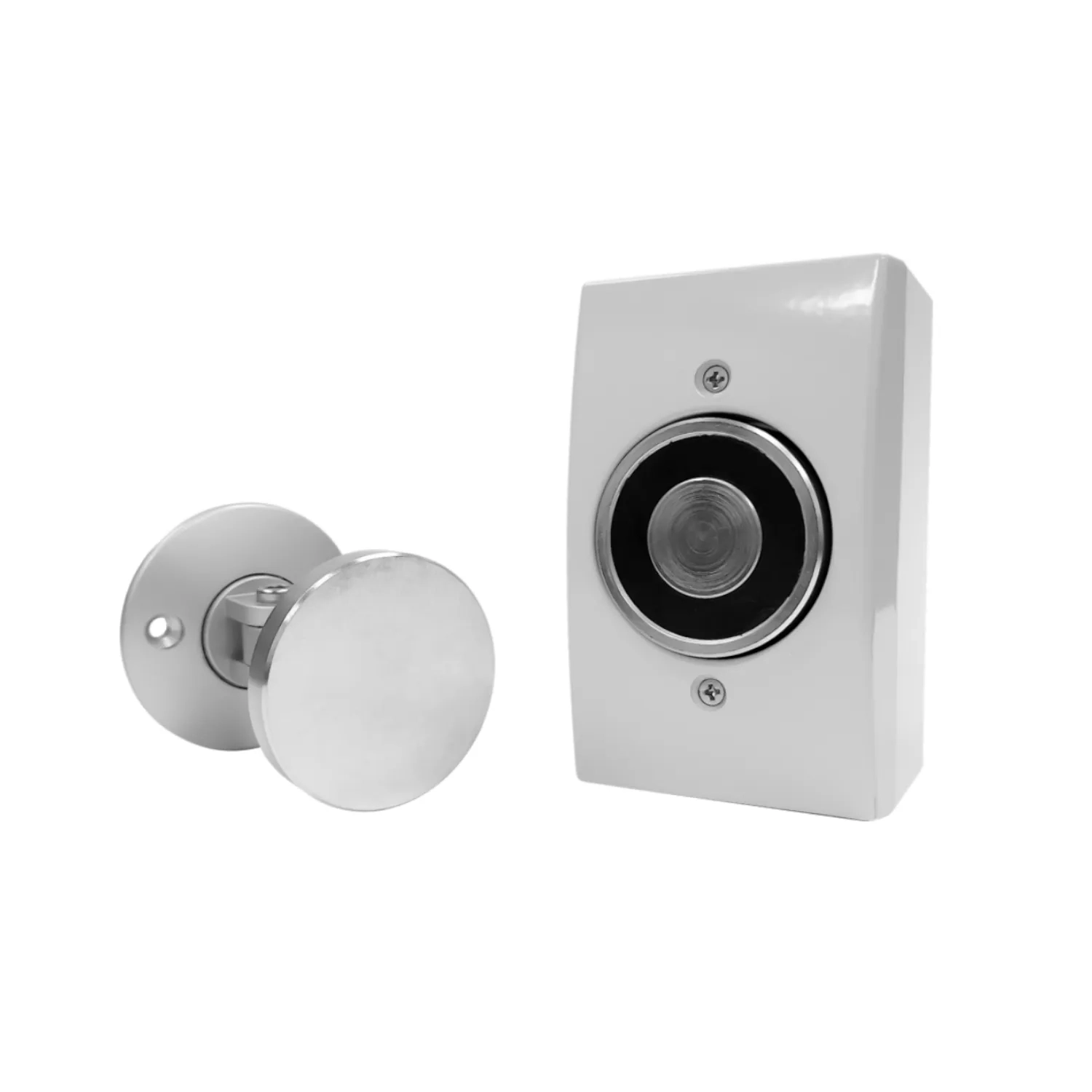

The CX-95S-DH is a professional magnetic door holder for fire doors, emergency exit doors, and other controlled passages. Thanks to its fail-safe operation, adjustable armature plate, and multiple mounting options, this door holder provides a reliable solution for commercial buildings, healthcare facilities, schools, hotels, and industrial applications.
Product Series: CX-95S-DH Series
Product Type: Magnetic Door Holder
Application: Fire Door Hold Open Systems, Door Release & Building Safety
Holding Force: Up to 35 lbs (16 kg)
Operating Voltage: 12/24V AC/DC, 120V AC
Current Draw:
55mA @ 12V AC
57mA @ 12V DC
32mA @ 24V AC
34mA @ 24V DC
30mA @ 120V AC
Mount Options: Surface Mount, Flush Mount or Floor Mount
Operating Mode: Fail Safe
Surface Mount Magnet:
2-3/4" W x 4-5/8" L x 2-1/2" D
(70mm x 116mm x 62mm)
Flush Mount Magnet:
2-3/4" W x 4-5/8" L x 1-3/4" D
(70mm x 116mm x 44mm)
Armature Plate:
2-9/16" W x 2-9/16" L x 2-7/8" D
(65mm x 65mm x 74mm)
L Bracket:
4-1/2" W x 3-9/16" L x 1-3/4" D
(114mm x 90mm x 44mm)
CX-95S-DH: Surface / Flush Mount Magnetic Door Holder
CX-95S-DH-FL: Floor Mount Magnetic Door Holder
CX-95S-DH-BK: Surface / Flush Mount Magnetic Door Holder, Black Finish
CX-95S-DH-FL-BK: Floor Mount Magnetic Door Holder, Black Finish
CX-95S-3E: 3" Extension Bar
CX-95S-7E: 7" Extension Bar
Voltage: Tri-voltage operation (12/24V AC/DC, 120V AC)
Operation: Fail-safe magnetic door holding
Alignment: Adjustable armature plate for easy alignment
Installation: Surface, flush or floor mounting options
Applications: Public, commercial and industrial buildings
Accessories: Optional 3" and 7" extension bars available
Construction: Heavy-duty professional design
Warranty: 3-year warranty
The Camden CX-95S-DH Magnetic Door Holder is designed for applications where doors need to be held open in a controlled manner and must close automatically when a signal is received from a fire alarm system, access control system, or building management system. This makes the CX-95S-DH a widely used solution in commercial buildings, hospitals, schools, apartment complexes, hotels, and industrial facilities.
In many buildings, it is necessary to keep fire doors or compartmentation doors open during the day for optimal flow of people and goods. However, when a fire alarm or emergency occurs, these doors must close automatically to limit the spread of smoke and fire. The CX-95S-DH provides a reliable and professional solution for this.
Thanks to electromagnetic technology, the door holder keeps the door firmly in position until the power is interrupted. Due to its fail-safe operation, the door is automatically released when power is lost or when a connected fire alarm system sends a release signal. This ensures the solution meets the requirements of modern fire safety and building management systems.
The CX-95S-DH stands out for its great flexibility. The system supports multiple supply voltages and can be used in a wide range of installations without additional components. The adjustable armature plate simplifies alignment during installation and ensures reliable operation, even when there are minor tolerances in the door construction.
For installers, the series offers additional benefits thanks to various mounting options. The magnetic door holder can be surface or flush mounted. In addition, a floor-mount version is available for situations where wall mounting is not possible. Optional extension brackets allow for installation in non-standard door configurations or where there are larger distances between the door and the mounting point.
Combining reliable operation, simple installation, and broad applicability, the Camden CX-95S-DH is an excellent choice for professional fire door and door-holding applications. For installers, security specialists, and building managers, this door holder offers a durable solution that can be easily integrated into existing fire safety and building management systems.
