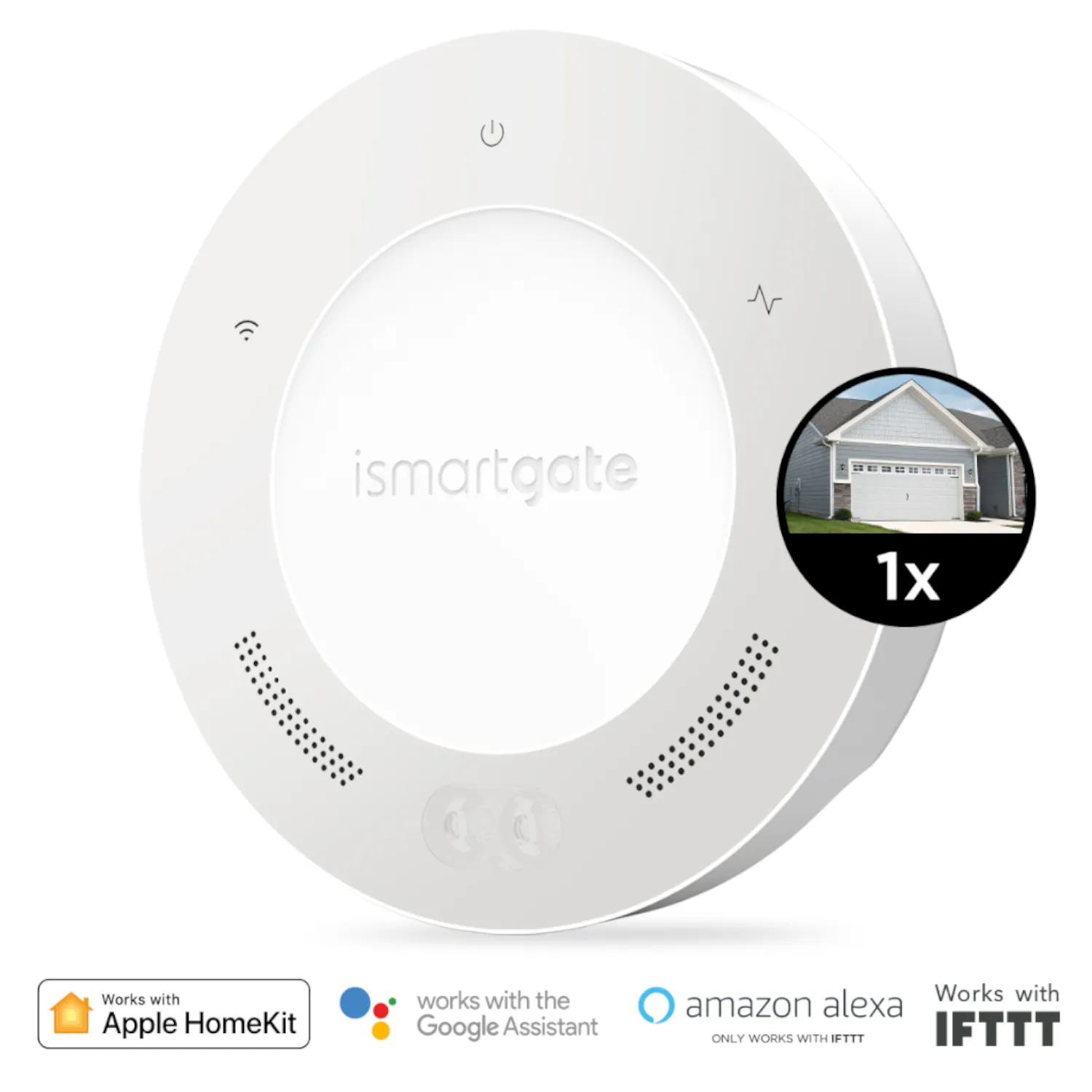

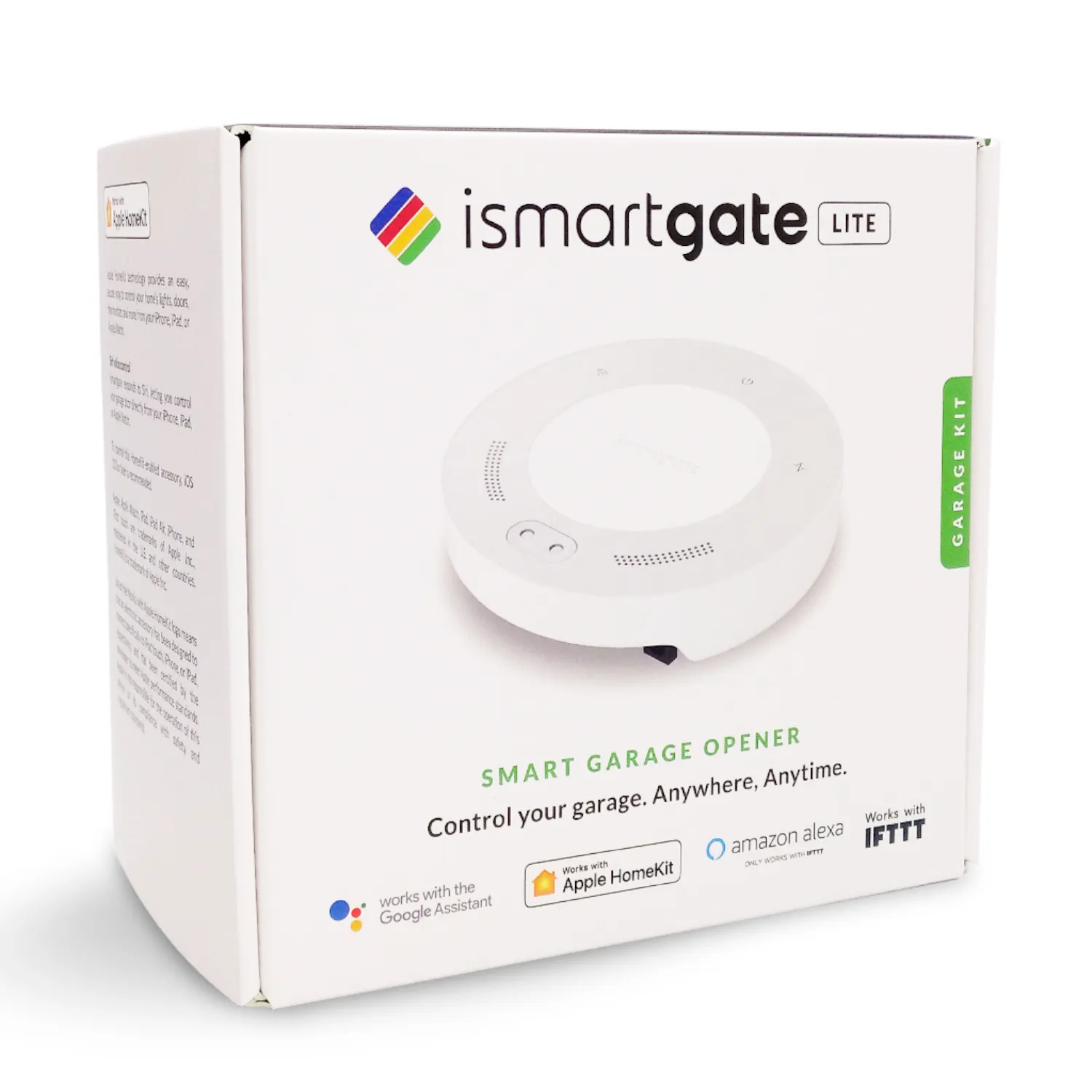

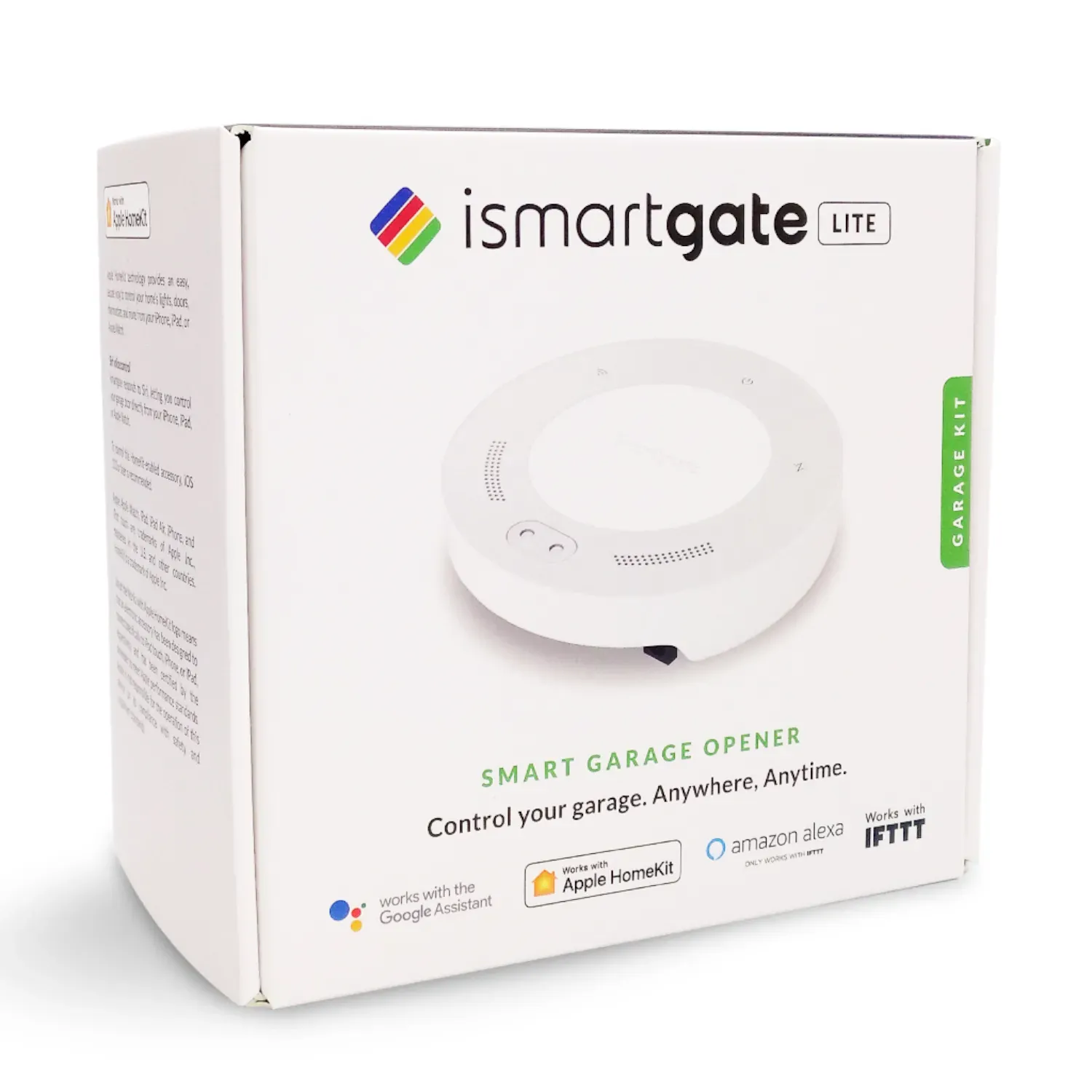

The iSmartGate LITE Garage Kit is the ideal solution for garages with a single door. Alongside remote control, you'll get a notification if the door stays open longer than 10 minutes, you can connect an IP camera to watch live, and you can manage who has access via the built-in user management platform. It includes nearly all the features of the PRO version at a lower price.
Control: iSmartGate app (iOS & Android)
Wi-Fi: 2.4GHz (802.11 b/g/n)
Relay outputs: 1 (one garage door)
Dry contact inputs: 0 — not compatible with wired sensors (available on PRO)
Speaker: none (available on PRO)
Status light: no LED (available on PRO)
USB: Type A
System: 512MHz CPU / 4GB eMMC / 128MB RAM
Controller power supply: 110-240V AC (50-60Hz) to 5V2A DC
Receiver: 2401 MHz
Alerts: open/closed + door left open for more than 10 minutes
Camera integration: supports IP camera (own camera or iSmartGate Cam)

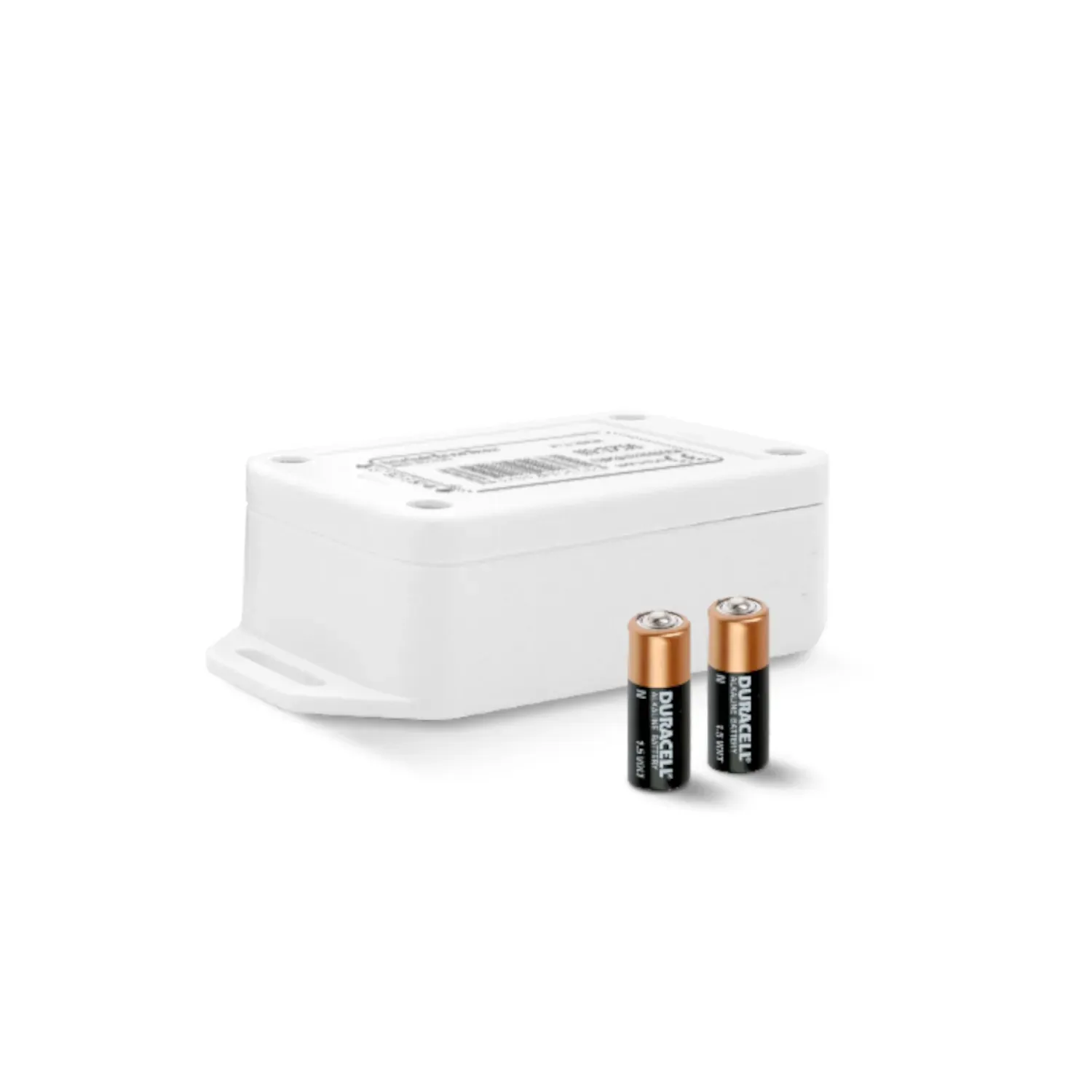

Compatible sensors: wireless tilt sensor, wireless contact sensor, wired contact sensor
A garage door left open by accident is a real security risk — especially if it goes unnoticed. The iSmartGate LITE Garage Kit combines remote control with smart status alerts, so an open door is never overlooked for long.

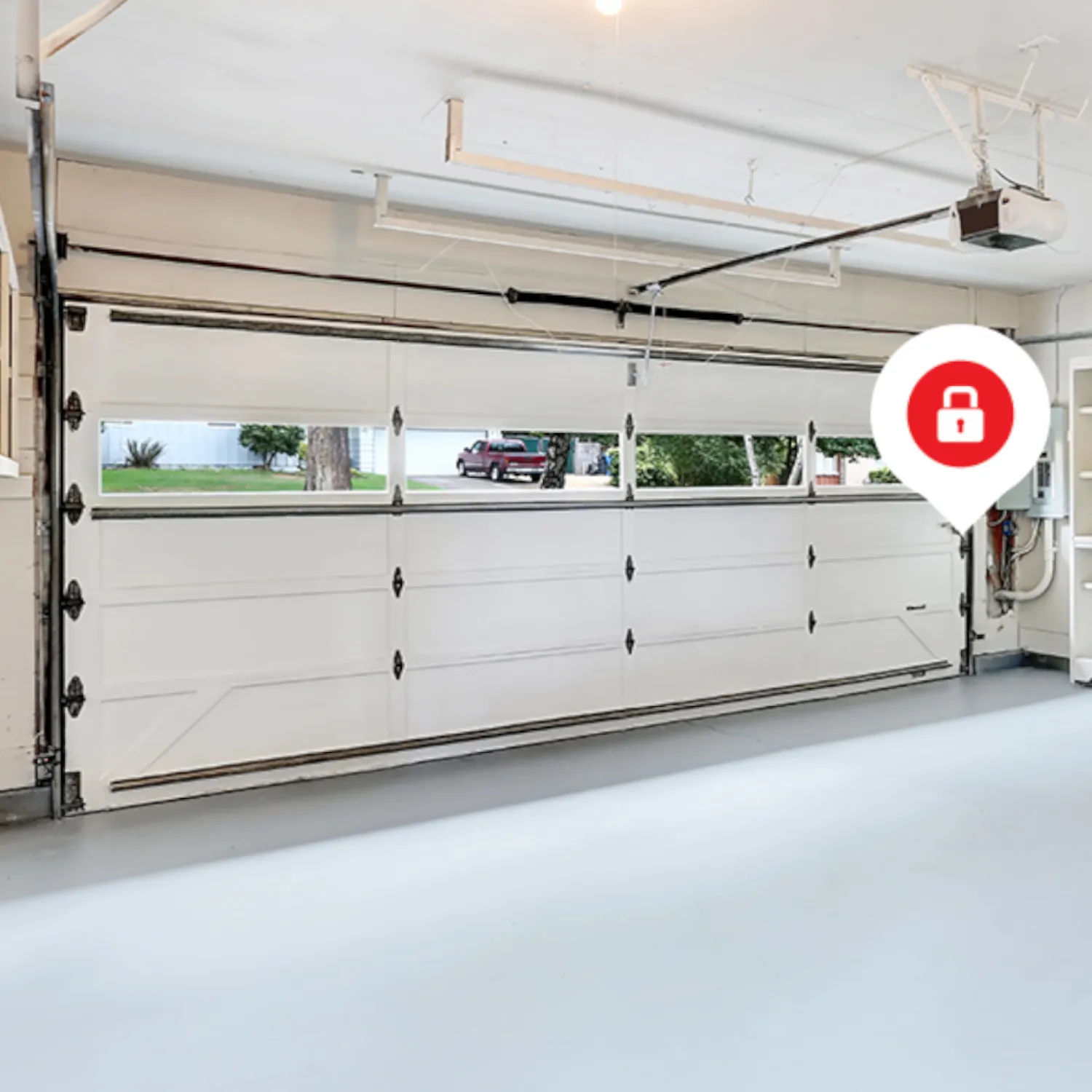

Using the iSmartGate app, you can control the garage door remotely and get a notification whenever the door opens, closes, or stays open for more than 10 minutes. If you miss a notification, the current status is always visible at a glance in the app.

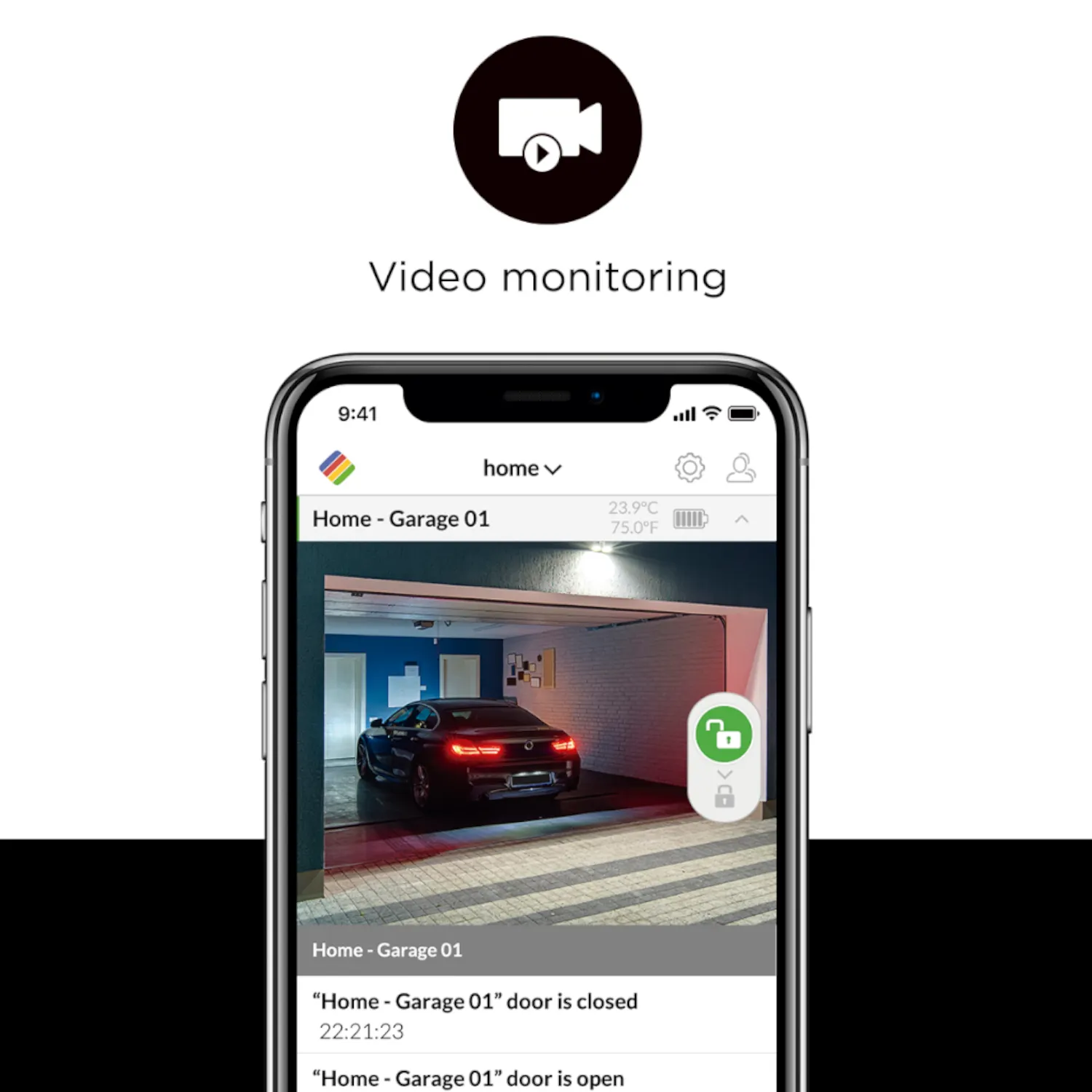

The LITE version also supports IP camera integration, so you can watch deliveries or kids arriving home live from anywhere. The built-in user management platform lets you set per-user access to the garage — handy when access is shared with family, neighbours or service providers.
Under the hood, LITE runs on a 512MHz CPU with 4GB eMMC storage and 128MB RAM, connects via 2.4GHz Wi-Fi (802.11 b/g/n) and has a Type A USB port for optional Ethernet connectivity via the separately available adapter. Unlike PRO, LITE has no dry contact input for wired sensors, no built-in speaker and no status light — features that are available on the PRO version.
The LITE Garage Kit includes nearly all the features of the PRO version, but is limited to controlling one garage door — ideal for homes with a single garage that still want advanced monitoring and user management.
Request a quote from Secumatic B.V. or get in touch for advice on the right iSmartGate configuration for your project.
