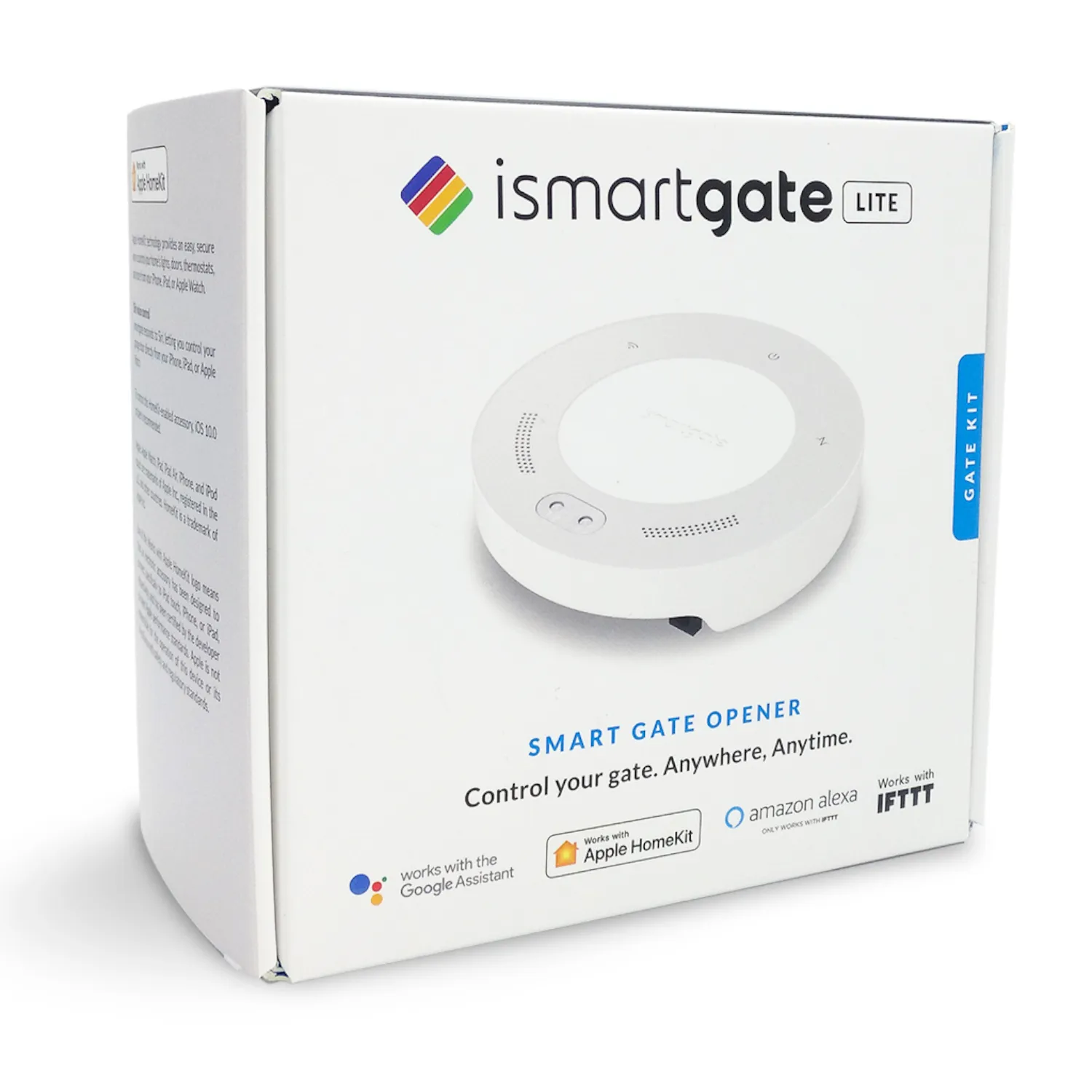

iSmartGate LITE Gate Kit, Wi-Fi gate opener with app control

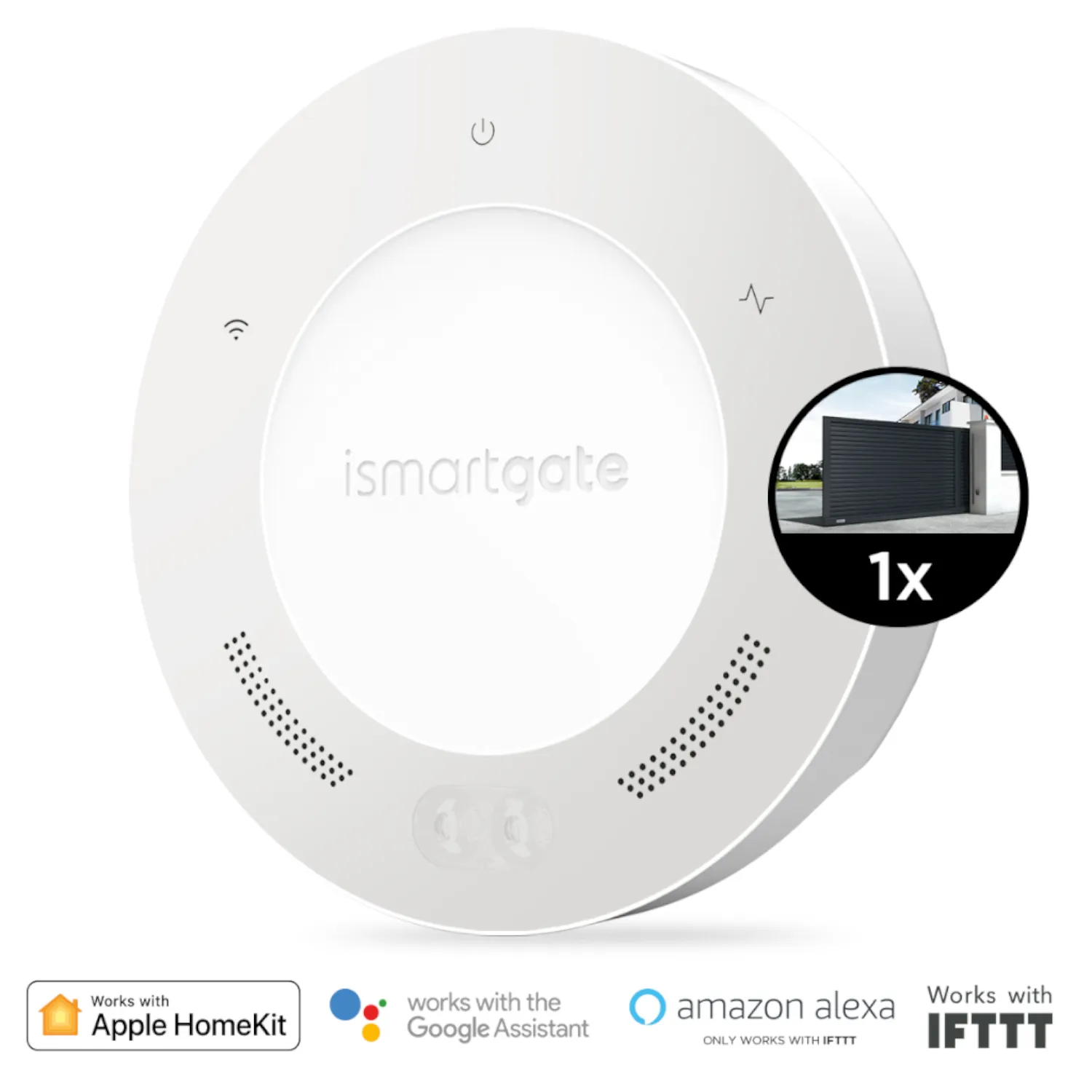

Controlling a gate with the iSmartGate LITE Gate Kit

iSmartGate LITE Gate Kit integrated with smart home and Siri

No items found.

iSmartGate LITE Gate Kit — WiFi Gate Opener with App

The iSmartGate LITE Gate Kit is the ideal solution for homes with a single gate. Alongside remote control, you'll get a notification if the gate stays open longer than 10 minutes, you can connect an IP camera to watch live, and you can manage who has access via the built-in user management platform.

Prevents an accidentally open gate — alert after 10 minutes
Remote visual confirmation via camera integration
Control who has access to the property, per user
Nearly all PRO functionality at an entry-level price

Specificaties

Control: iSmartGate app (iOS & Android)

Wi-Fi: 2.4GHz (802.11 b/g/n)

Relay outputs: 1 (one gate)

Dry contact inputs: 0 — not compatible with wired sensors (available on PRO)

Speaker: none (available on PRO)

Status light: no LED (available on PRO)

USB: Type A

System: 512MHz CPU / 4GB eMMC / 128MB RAM

Controller power supply: 110-240V AC (50-60Hz) to 5V2A DC

Receiver: 2401 MHz

Alerts: open/closed + gate left open for more than 10 minutes

Camera integration: supports IP camera (own camera or iSmartGate Cam)

Compatible sensors: wireless contact sensor, wired contact sensor

Power at the gate: 110V/220V outlet required, or DC/DC power adapter

iSmartGate LITE Gate Kit — WiFi gate opener with camera and user management

A gate that stays open unnoticed is a real security risk for a home or business premises. The iSmartGate LITE Gate Kit combines remote control with smart status alerts, so an open gate is never overlooked for long.

Using the iSmartGate app, you control the gate remotely and get a notification whenever it opens, closes, or stays open for more than 10 minutes. The current status is always visible at a glance in the app.

The LITE version supports IP camera integration, so visitors or deliveries at the gate can be watched live. The built-in user management platform lets you set per-user access — handy when access is shared with family, neighbours or service providers.

Under the hood, LITE runs on a 512MHz CPU with 4GB eMMC storage and 128MB RAM, connects via 2.4GHz Wi-Fi (802.11 b/g/n) and has a Type A USB port for optional Ethernet connectivity via the separately available adapter. Unlike PRO, LITE has no dry contact input for wired sensors, no built-in speaker and no status light.

The LITE Gate Kit includes nearly all the features of the PRO version, but is limited to controlling one gate — ideal for homes and smaller premises that still want advanced monitoring and user management.

Request a quote from Secumatic B.V. or get in touch for advice on the right iSmartGate configuration for your project.
