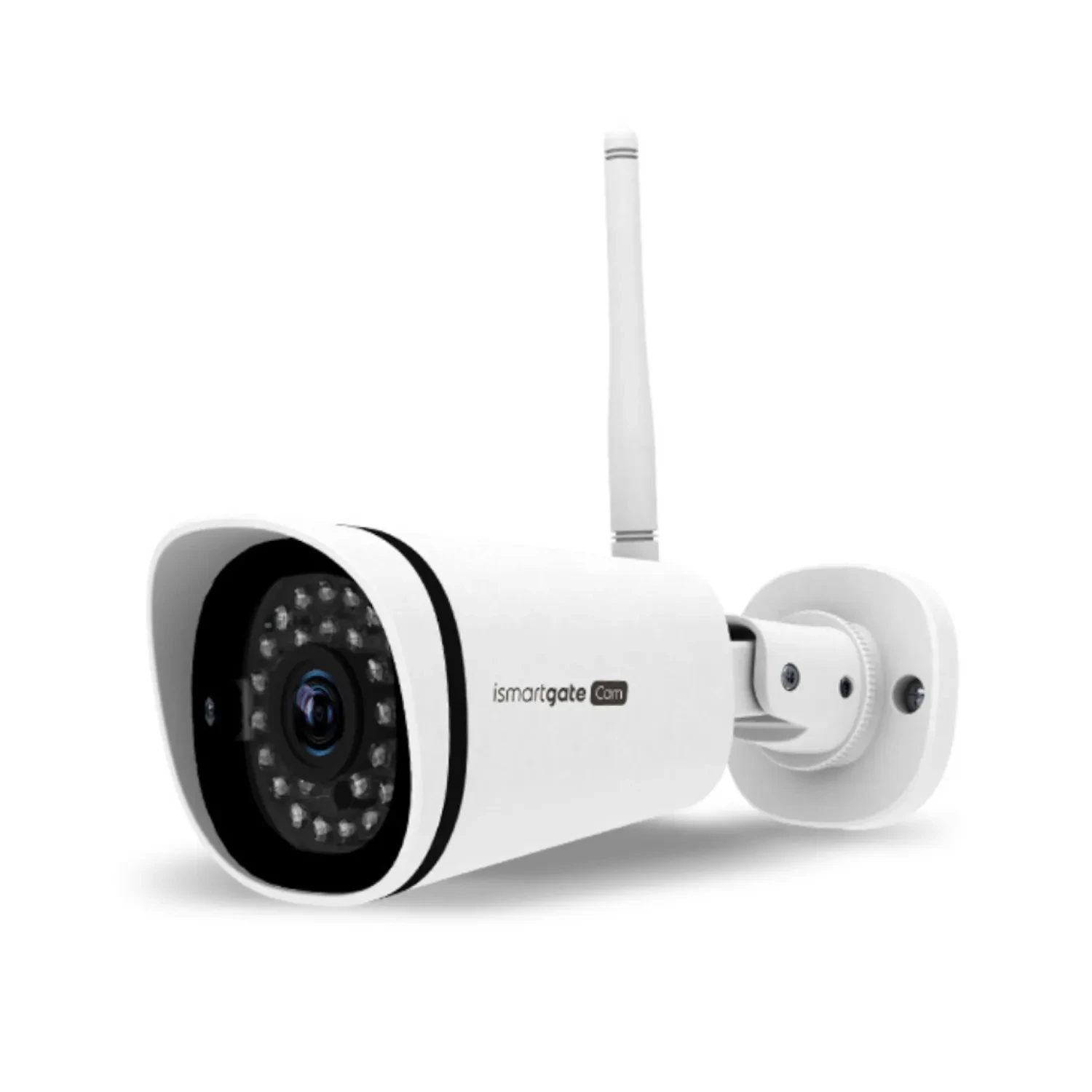

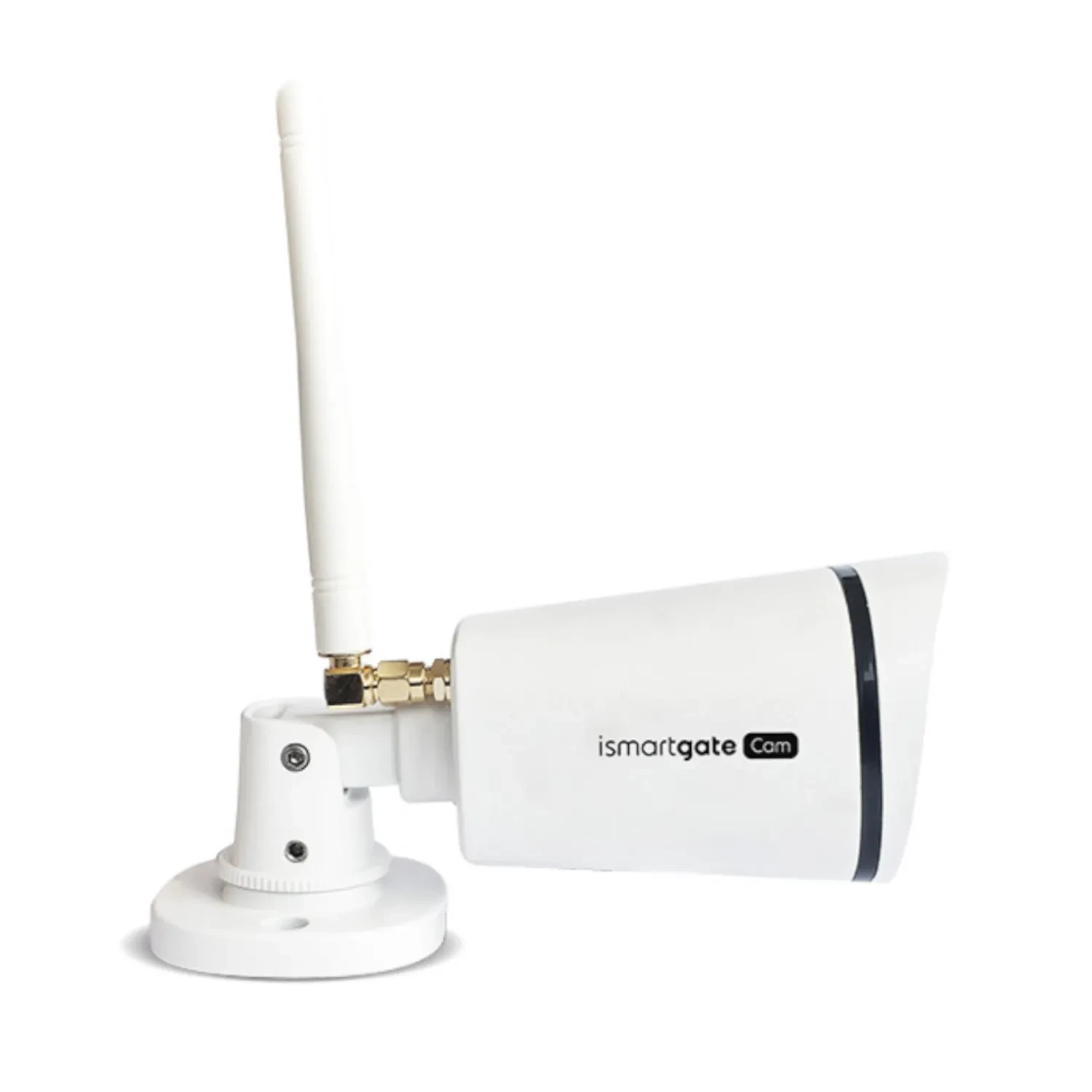

The iSmartGate Cam Outdoor is a weatherproof 2MP IP camera that integrates seamlessly with the iSmartGate app: live footage and event recordings from your driveway, gate or entrance, right alongside your gate control in the same app. Ideal for keeping an eye on visitors, deliveries or unwanted access remotely.
Type: IP camera for outdoor use, weatherproof
Resolution: 1920x1080 (2MP), FHD Color CMOS sensor
Viewing angle: 105° diagonal / 90° horizontal
Night vision: yes, up to 20 metres (up to 30 IR LEDs)
Motion detection: yes, 5 adjustable sensitivity levels
Wi-Fi: 802.11 b/g/n (2.4GHz)
Ethernet: RJ45 port
Storage: 1x microSD slot, max. 128GB (sold separately)
Operating temperature: -20°C to +60°C
Operating humidity: 0%-90%
Power supply: 100-240V to 12V1A
Waterproof: yes, IP66 housing
Dimensions: 165(L) x 65(W) x 150(H) mm
Weight: 350 g
Connectivity: Wi-Fi + Ethernet (RJ45)
Combinable with: iSmartGate MINI, LITE, PRO (camera support)

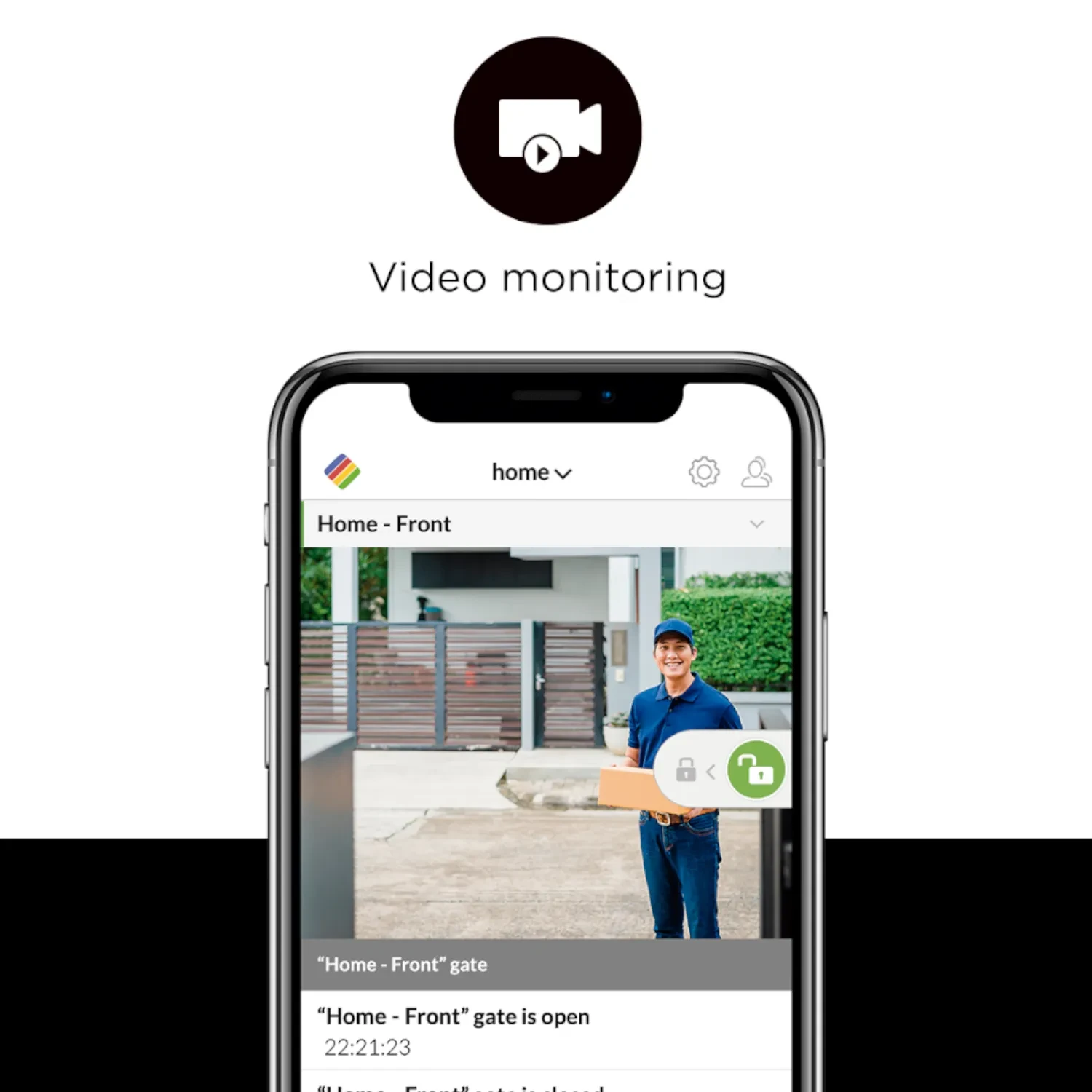

With a gate at a distance, you want to know not just whether it's open or closed, but who's standing in front of it. The iSmartGate Cam Outdoor adds live video to the iSmartGate app, right alongside gate control.

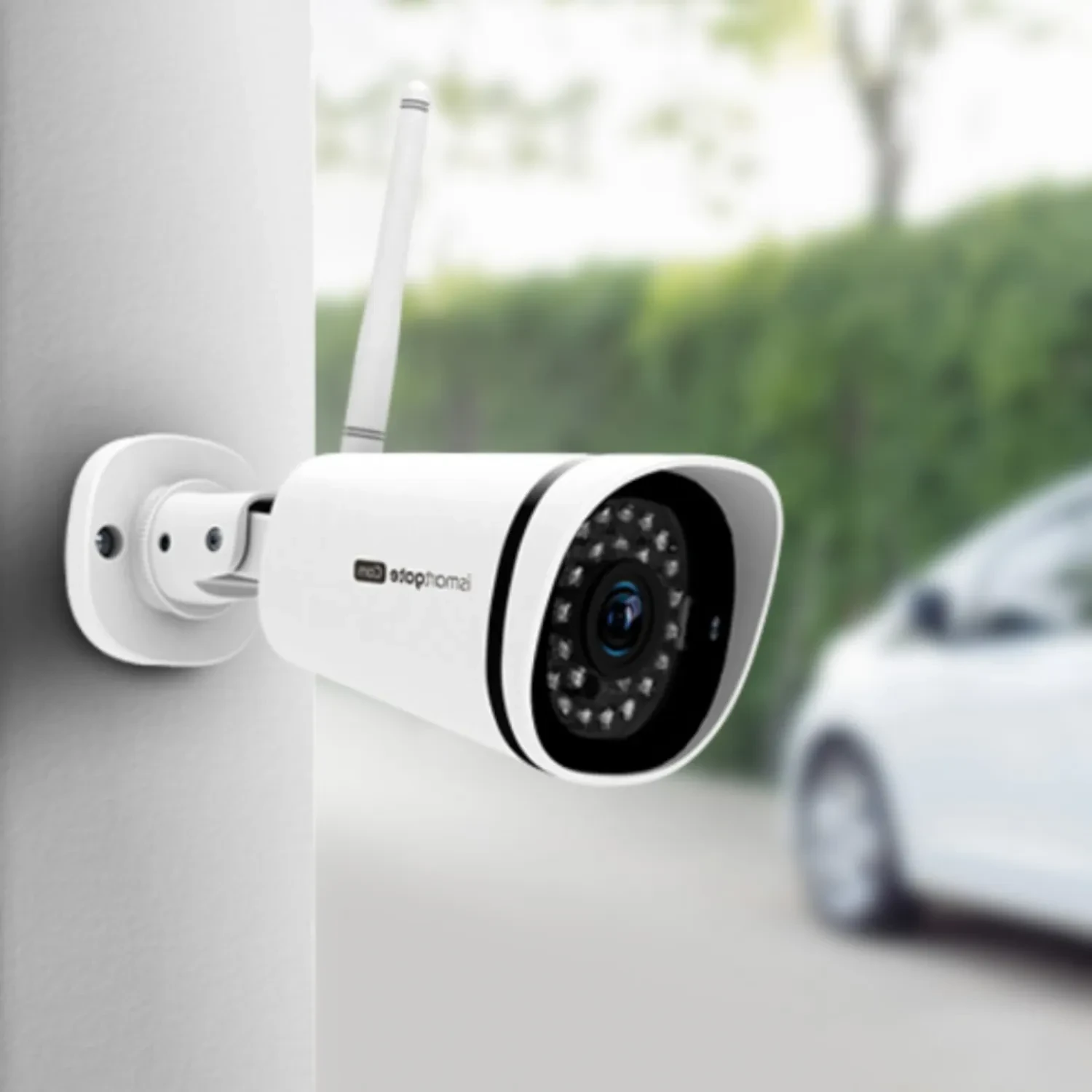

The weatherproof 2MP camera is designed for outdoor use at driveways, gates or fences and records events in a built-in calendar, so footage is easy to find at the moment of a gate action or motion detection. You can see at a glance who passed by or when a delivery took place.
Under the hood, the Cam Outdoor uses the same FHD Color CMOS image sensor (1920x1080, 2MP) as the Cam Indoor, with a 105° diagonal / 90° horizontal viewing angle, in an IP66 waterproof housing rated for temperatures from -20°C to +60°C. Night vision works up to 20 metres via built-in IR LEDs, and the camera connects via 2.4GHz Wi-Fi as well as a wired RJ45 Ethernet port. Footage is stored locally on a microSD card up to 128GB, with no cloud costs or subscription.
Because the camera runs in the same app as the iSmartGate controller, no separate camera app is needed — control, status alerts and video come together in one place. Cam Outdoor can be combined with any iSmartGate kit (MINI, LITE or PRO) that supports camera integration.
Applications include driveways, main entrances and business premises where remote visual control alongside regular gate operation is desired.
Request a quote from Secumatic B.V. or get in touch for advice on the right iSmartGate configuration for your project.
