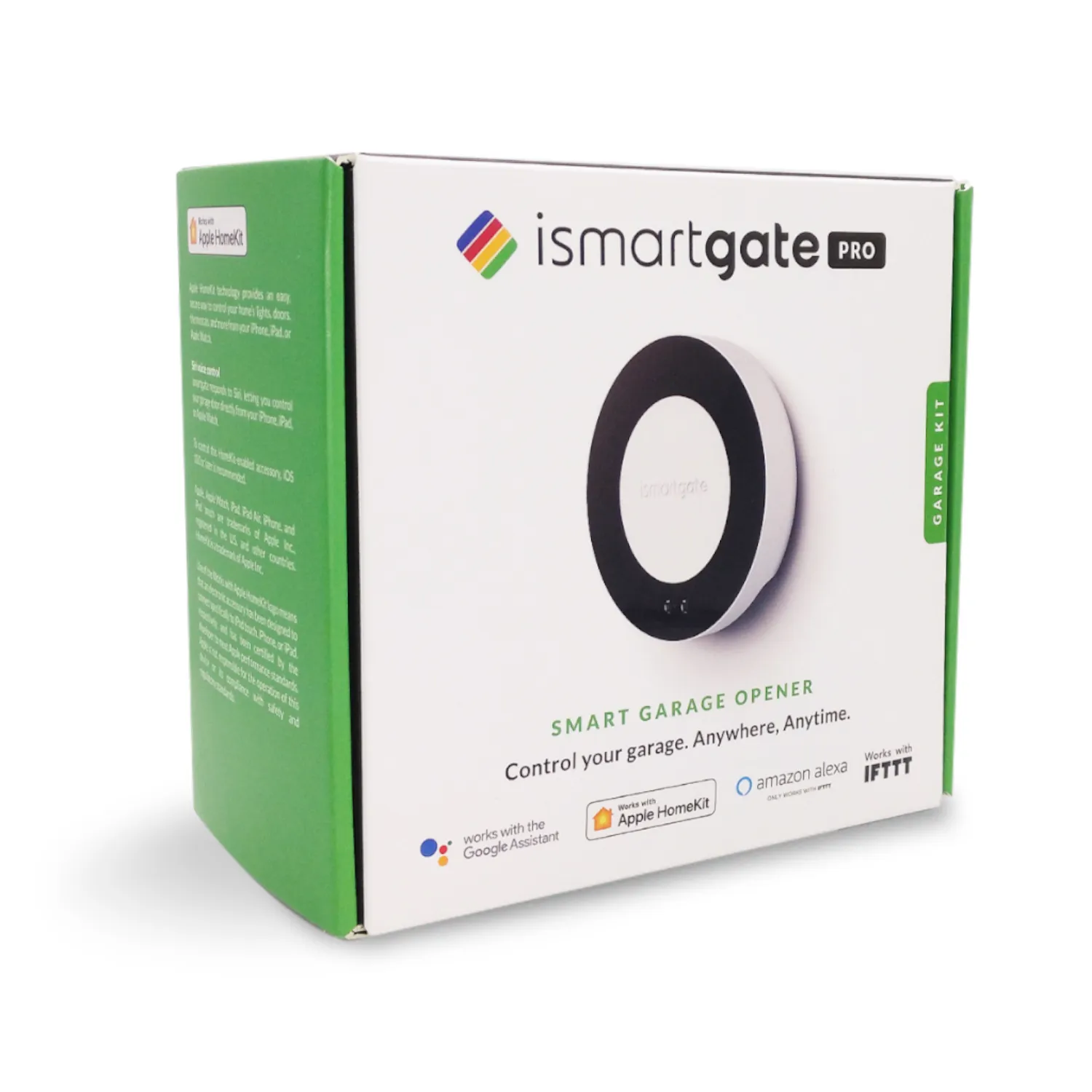

The iSmartGate PRO Garage Kit is the most comprehensive solution for homes with multiple garage doors: control up to 3 doors from a single app screen. PRO is the only version compatible with Apple HomeKit alongside Alexa, Google Assistant, IFTTT and SmartThings, and adds features like garage obstruction detection, a customizable app with your own photo per door, and automatic open/close based on GPS location or time.
Control: iSmartGate app (iOS & Android)
Wi-Fi: 2.4GHz (802.11 b/g/n)
Relay outputs: 3 (up to 3 garage doors in 1 app)
Dry contact inputs: 3 (up to 3 wired sensors)
Speaker: yes, for entry/exit music
Status light: double LED
USB: Type A
System: 512MHz CPU / 4GB eMMC / 128MB RAM
Controller power supply: 110-240V AC (50-60Hz) to 5V2A DC
Receiver: 2401 MHz
Smart home integration: Apple HomeKit, Amazon Alexa, Google Assistant, SmartThings, IFTTT
Extra features: garage obstruction detection (with HomeKit), visual/audible alarm, custom sound per door, customizable app photos, automatic open/close via GPS/time (IFTTT)
Compatible sensors: wireless tilt sensor, wireless contact sensor, wired contact sensor
In homes with multiple garage doors, controlling each one separately is inconvenient and hard to keep track of. The iSmartGate PRO Garage Kit solves this by controlling up to 3 garage doors from a single app screen, including status and alerts per door.

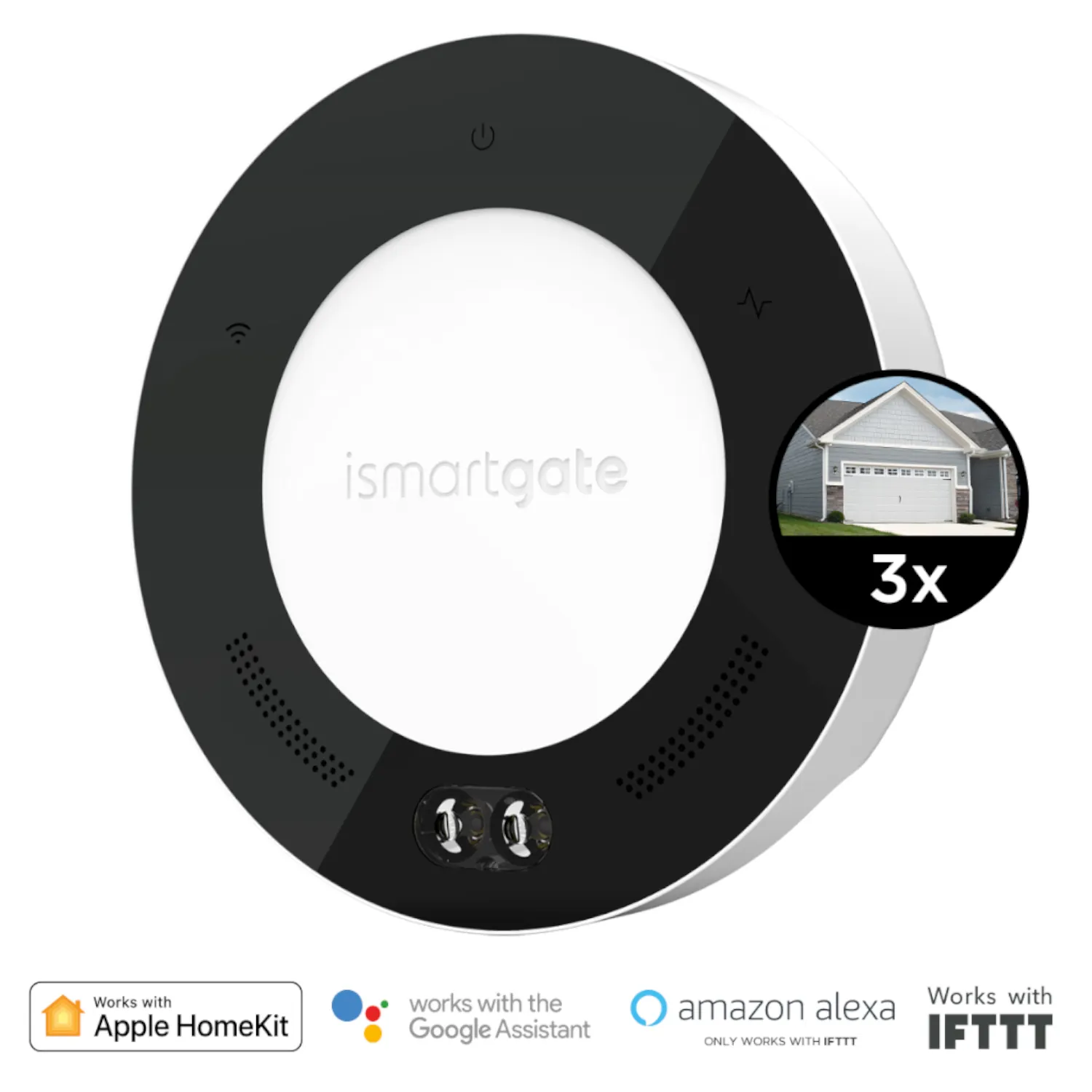

PRO is the most comprehensive iSmartGate version and the only one compatible with Apple HomeKit, alongside Amazon Alexa, Google Assistant, SmartThings and IFTTT. This enables voice control and automation across virtually every smart home platform, including control from CarPlay.

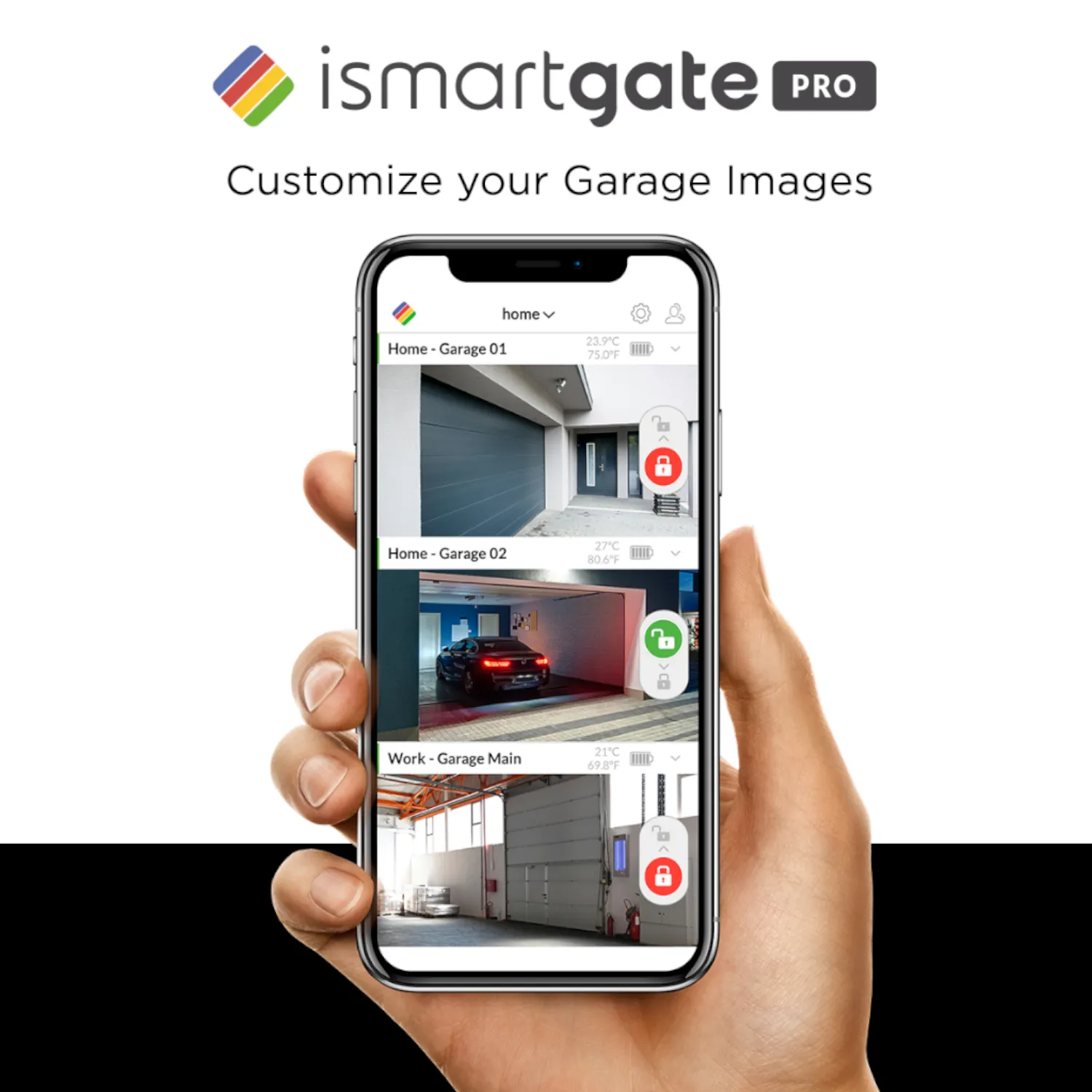

The app can be customized per door with your own photo for open and closed status, and the control button can be set to up-down or left-right — handy when combining sectional and tilt doors in the same installation. PRO also supports a visual and audible alarm and a custom sound per door, and (combined with HomeKit) offers garage obstruction detection for extra safety.
Under the hood, PRO runs on the same 512MHz CPU / 4GB eMMC / 128MB RAM platform as LITE, but with more extensive hardware: 3 relay outputs and 3 dry contact inputs (for up to 3 doors with wired sensors), a built-in speaker for entry/exit music and a double LED status light — features LITE doesn't have.
Via IFTTT you can set automatic opening and closing based on GPS location or a fixed time, so the garage closes automatically when you leave or at a set time. This combination of features makes PRO suitable for larger homes, multi-family properties and situations where multiple garage doors need to be managed centrally.
Request a quote from Secumatic B.V. or get in touch for advice on the right iSmartGate configuration for your project.
