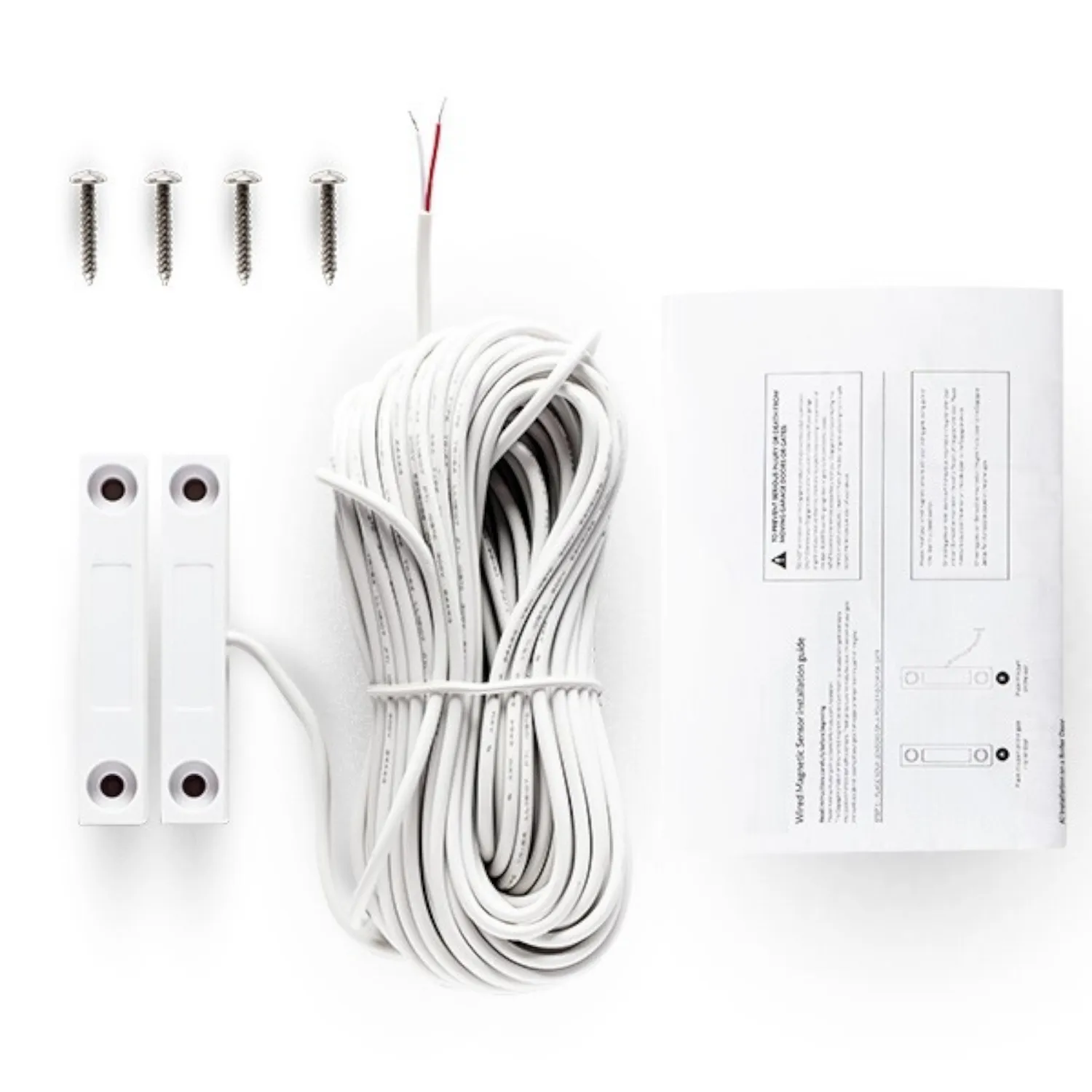

The iSmartGate Wired Contact Sensor is the universal sensor solution for all types of garage doors, gates and roller shutters — ideal for high-use situations or where a wired, extra-stable connection is preferred. The waterproof sensor works with the iSmartGate MINI, LITE and PRO.
Type: wired contact/magnetic sensor
Suitable for: garage doors, gates and roller gates (universal)
Cable length: 9 metres
Max. contact power: 10W
Max. switching voltage: 100V DC
Max. switching current: 0.5A
Max. operating current: 1A
Housing: waterproof
Mounting: double-sided tape
Sensor power: wired, no battery required
Compatible with: iSmartGate MINI, LITE, PRO
For installations with intensive use, or where a battery-powered sensor isn't desired, a wired sensor offers extra stability. The iSmartGate Wired Contact Sensor detects open/closed status via a magnetic contact point and sends it directly, over a cable, to the iSmartGate controller.
Because the sensor doesn't depend on a battery, there's no need for periodic battery replacement — practical for doors and gates used multiple times a day. The waterproof design is suitable for both indoor and outdoor mounting.
The sensor has a 9-metre cable and is rated for a maximum switching power of 10W (max. 100V DC switching voltage, 0.5A switching current / 1A operating current) — more than enough for the dry contact input on the iSmartGate PRO controller. Mounting is straightforward with double-sided tape.
The wired contact sensor is universally applicable: from sectional garage doors to roller gates and outdoor fences, in combination with the iSmartGate MINI, LITE and PRO. This makes it a suitable choice when one sensor type is wanted for multiple door types at a single site.
Applications include garages and entrances with intensive use, and installations where a wired, low-maintenance sensor is preferred over a wireless, battery-powered version.
Request a quote from Secumatic B.V. or get in touch for advice on the right iSmartGate configuration for your project.
