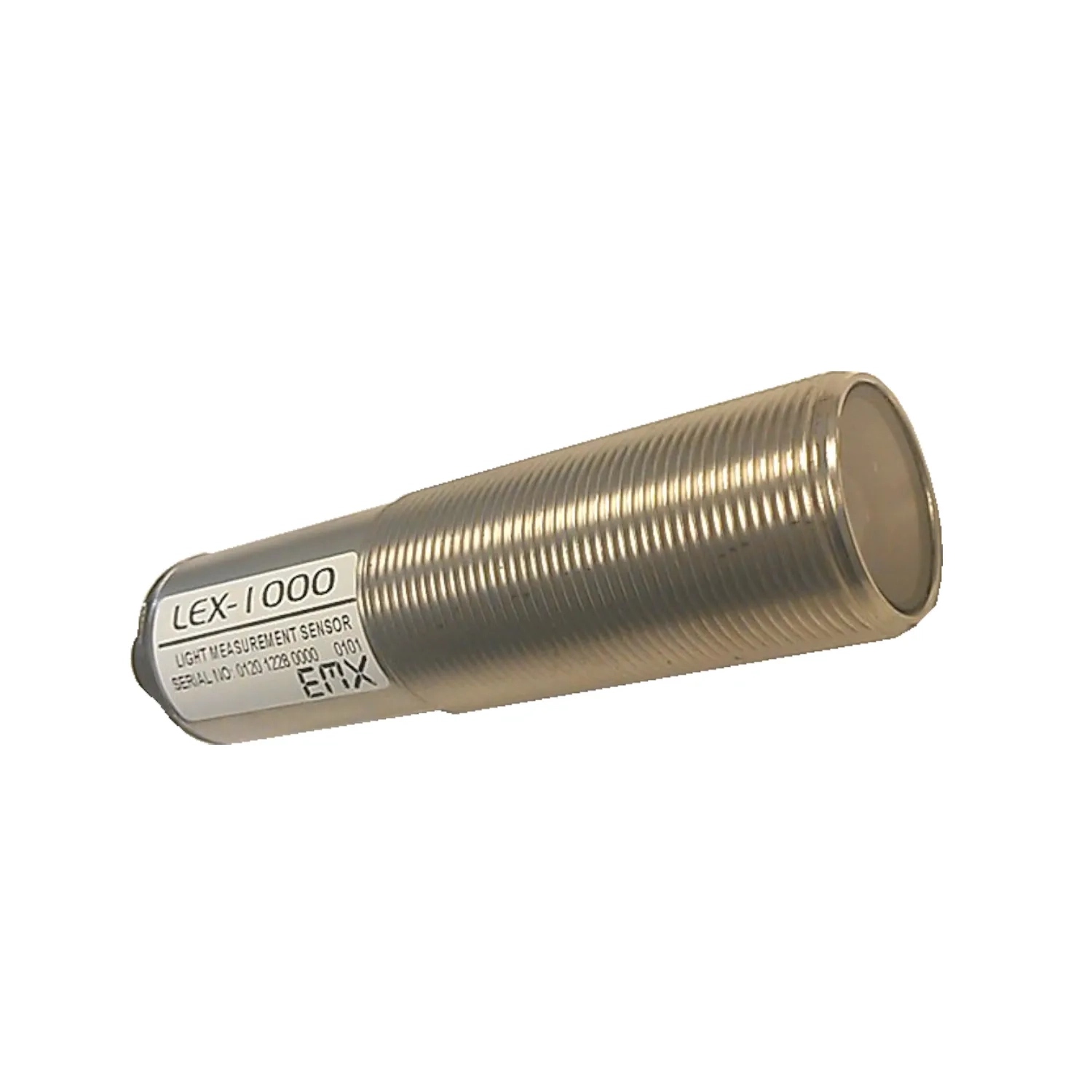

The LEX-1000 measures the color characteristics of light sources and illuminated objects — unlike color sensors that measure surface color. With 4 programmable color channels, an IP67 stainless steel housing, and RS232/USB communication, the LEX-1000 is ideal for LED validation and quality control in machine building.
Type: RGB Light Measurement Sensor
Measurement Method: RGB light analysis (red, green, blue)
Color Channels: 4 programmable recognition channels
Operating Range: 50–600 mm
Outputs: PNP/NPN discrete outputs
Analog Outputs: RGB analog outputs
Serial Communication: USB and RS232
Light Source Compatibility: LEDs, LCDs, lamps, illuminated objects
Configuration: PC-based software configuration
Housing Type: M30 industrial threaded housing
Construction: Industrial-grade metal housing
Application: LED testing, display verification, comparative light measurement, industrial automation
Where color sensors like ColorMax measure the color of physical surfaces, EMX Industries' LEX-1000 is specifically developed to analyze light sources and illuminated objects themselves — think LEDs, displays, and illuminated components. For manufacturers who need to monitor the color consistency of their own light-emitting products, that's an essential distinction.
The sensor separates incoming light into its individual red, green, and blue components and offers both 4 programmable color recognition channels and analog RGB outputs with 10-bit resolution. Once all three color values fall within the preset parameters, the LEX-1000 issues a discrete output signal — suitable for direct integration with machine control and fast pass/fail decisions on the line.
Configuration is handled via the included ColorMax Windows software, with a teach function for RGB values from 1 to 100%, programmable averaging over 1 to 64 readings for more stable results, and external triggering options. Operator lockout prevents unauthorized changes on the shop floor.
The rugged IP67 316 stainless steel housing (M30, 110×30mm) with glass window and 12-pin connector withstands dust, moisture, and chemicals, and operates reliably across a temperature range of -10°C to +55°C — suited to demanding industrial environments across Europe.
The LEX-1000 also supports external triggering, allowing measurements to be synchronized precisely with a production cycle or conveyor line. The operator lockout function prevents settings from being accidentally changed by unauthorized personnel on the shop floor — a practical safeguard in 24/7 production environments with rotating shifts. The 50 to 600mm range gives installers flexibility when positioning the sensor relative to the light object being measured.
Typical applications include LED and display validation, comparative light measurement in assembly processes, and quality control of illuminated components in the automotive, electronics, and machine building sectors.
Request a quote from Secumatic B.V. for advice on the right configuration for your application.
