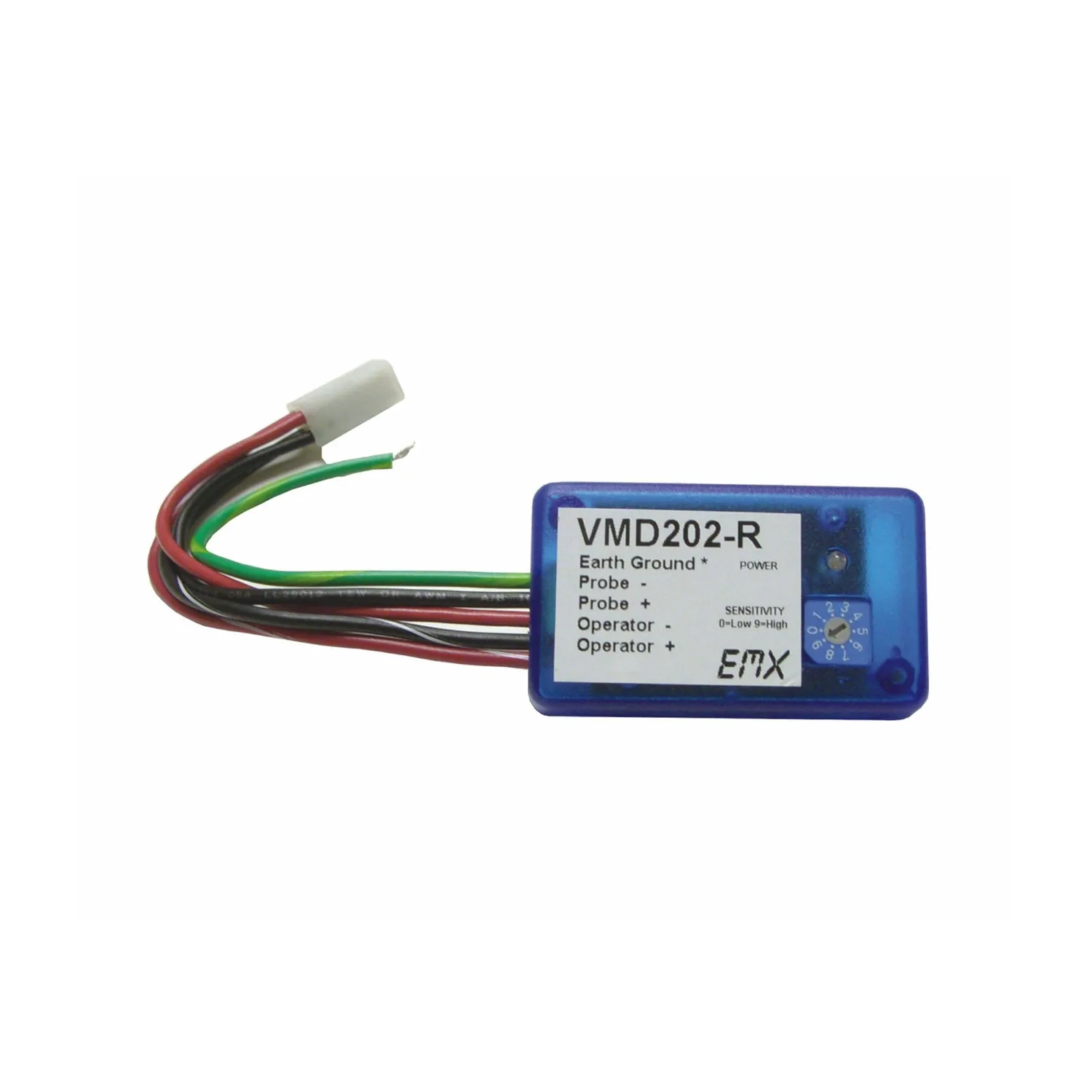

The VMD202-R is the programming module for the VMD202 motion detector, used to quickly configure sensitivity and settings. Settings are stored in the sensor itself, making the module reusable across multiple installations. Compact (74×35×15mm, 23g).
Type: Sensitivity Programming Remote
Compatible With: EMX VMD202 Vehicle Motion Detector
Sensitivity Settings: 10 levels (0–9)
Programming Method: Plug-in remote interface
Memory: Non-volatile storage in VMD202
Power Supply: Powered via VMD202 system (no standalone supply)
Connection: Temporary plug-in harness interface
Function: Calibration / sensitivity adjustment / tuning
Housing Material: ABS plastic
Dimensions: Approx. 74 × 35 × 15 mm
Weight: Approx. 23 g
Operating Temperature: -40°C to +70°C
Application: Installation, tuning and maintenance of vehicle motion detection systems
The VMD202 is tuned based on the specific installation situation — distance from the lane, desired sensitivity, and vehicle type. EMX Industries' VMD202-R is the companion programming module that lets installers quickly and precisely configure these settings, without opening the sensor itself.
A key feature of the VMD202-R is that configuration settings are stored in the non-volatile memory of the VMD202 sensor itself, not in the programming module. That means the module can be removed once configuration is complete — useful for installers who need to configure multiple VMD202 sensors across different sites with just one programming module.
The module has a compact ABS housing measuring approximately 74×35×15mm and weighs just 23 grams, making it easy to carry in a tool bag or service vehicle. The plug-in interface makes connecting to the VMD202 fast and error-free.
Because the VMD202-R is powered entirely through the VMD202 system itself, no separate battery or power supply is needed — the module functions purely as a temporary programming interface that can be disconnected once configuration is complete. This makes the module especially useful for maintenance teams who periodically visit multiple installations to check or adjust sensitivity settings. With an operating temperature of -40°C to +70°C, the VMD202-R is just as rugged as the sensor itself, making it suitable for use in the same demanding outdoor environments.
Applications are mainly among installers and service technicians who regularly configure or reconfigure VMD202 motion detectors in the field, for example during commissioning of new installations or when adjusting sensitivity settings after handover. Since a single module is enough for an entire fleet of VMD202 sensors, tool investment stays limited for maintenance companies.
