De SECR10 is een professionele radarsensor voor automatische deuren, industriële deuren en snelroldeuren. Dankzij geavanceerde microgolftechnologie detecteert de sensor personen, voertuigen en intern transport nauwkeurig en betrouwbaar. De instelbare detectiezone en richtingsdetectie zorgen voor efficiënte deuractivatie, minder ongewenste openingen en een optimale doorstroming binnen logistieke en industriële omgevingen.
Product Model: SECR10
Product Type: Microwave Radar Detector
Application: Automatic Doors and High-Speed Doors
Detection Technology: Microwave Radar (X-Band)
Detection Mode: One-Way / Two-Way Detection
Power Supply: 12–24 VAC / 12–30 VDC
Current Consumption: 50 mA max
Operating Frequency: 9.90 GHz
Output Power: ≤ 14 dBm
Detection Range: 1 – 6 m (adjustable)
Relay Hold Time: 1 – 6 sec (adjustable)
Protection Rating: IP55
Maximum Installation Height: 3 m
Minimum Detectable Speed: 0.1 m/s
Relay Contact: 1 A – 24 V AC/DC
Vertical Adjustment: 0° to 60°
Horizontal Adjustment: ±45°
Operating Temperature: -20°C to +50°C
Warranty: 24 Months
Dimensions: 140 x 100 x 70 mm
Weight: 250 g

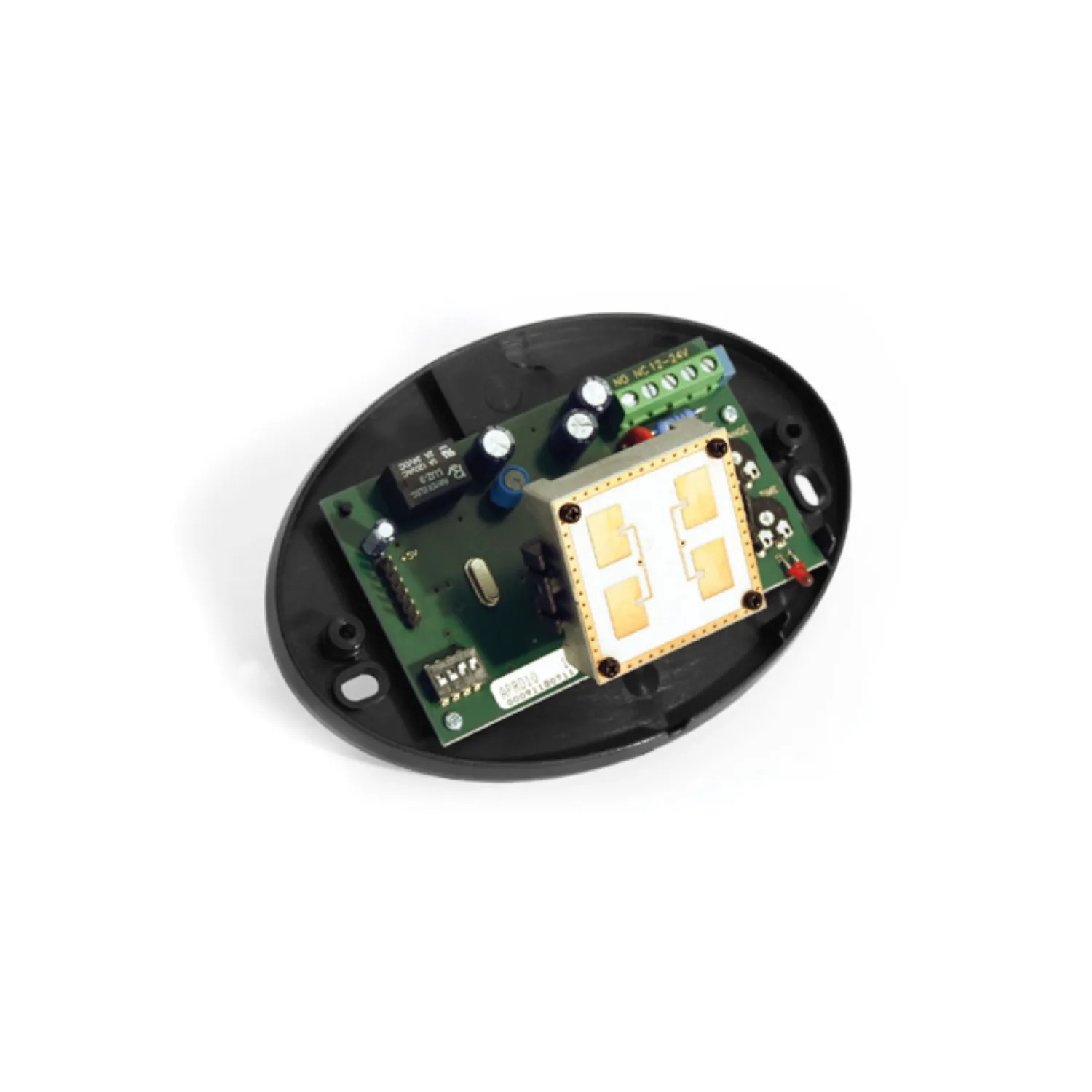

Technology: Planar microwave technology
Signal Processing: Microprocessor controlled
Direction Recognition: Approaching and departing movement detection
Installation: Wall or ceiling mounted
Coverage: High-resolution detection area
Orientation: Internally adjustable sensor head

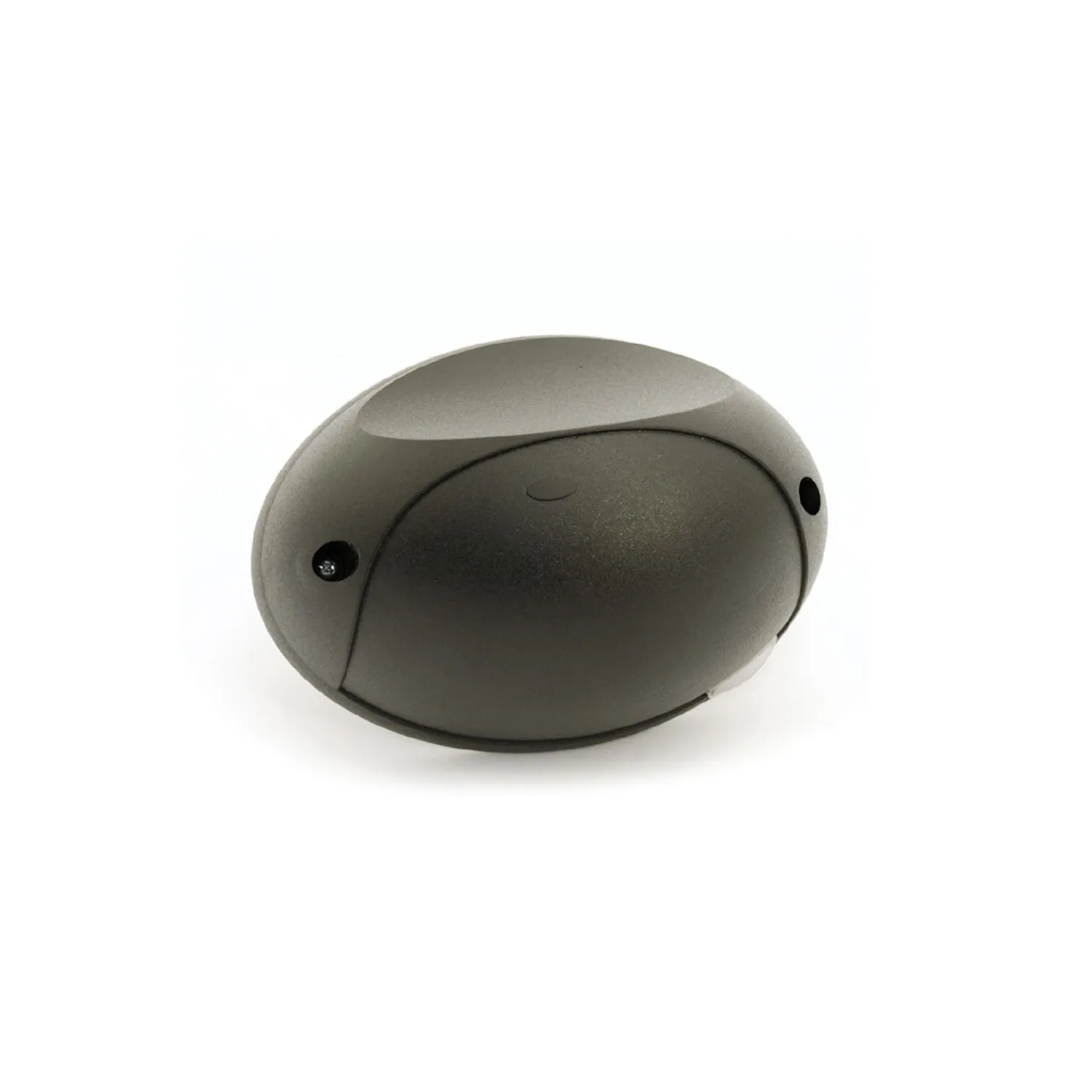

The SECR10 is a professional microwave door sensor for activating industrial doors, high-speed doors, and other automatic entrances. Thanks to its advanced radar technology, the sensor accurately detects the movement of people, forklifts, and vehicles within the set detection area. This ensures doors open only when necessary, leading to more efficient traffic flow, reduced energy loss, and increased operational safety.
The SECR10 utilizes Doppler radar technology with microprocessor-controlled signal processing. This allows the sensor to not only detect movement but also recognize the direction of travel. The sensor can be set to either uni-directional or bi-directional mode, minimizing unwanted activations and ensuring the door reacts only to relevant traffic. This makes the SECR10 particularly suitable for logistics centers, warehouses, production halls, distribution centers, and industrial loading bays.

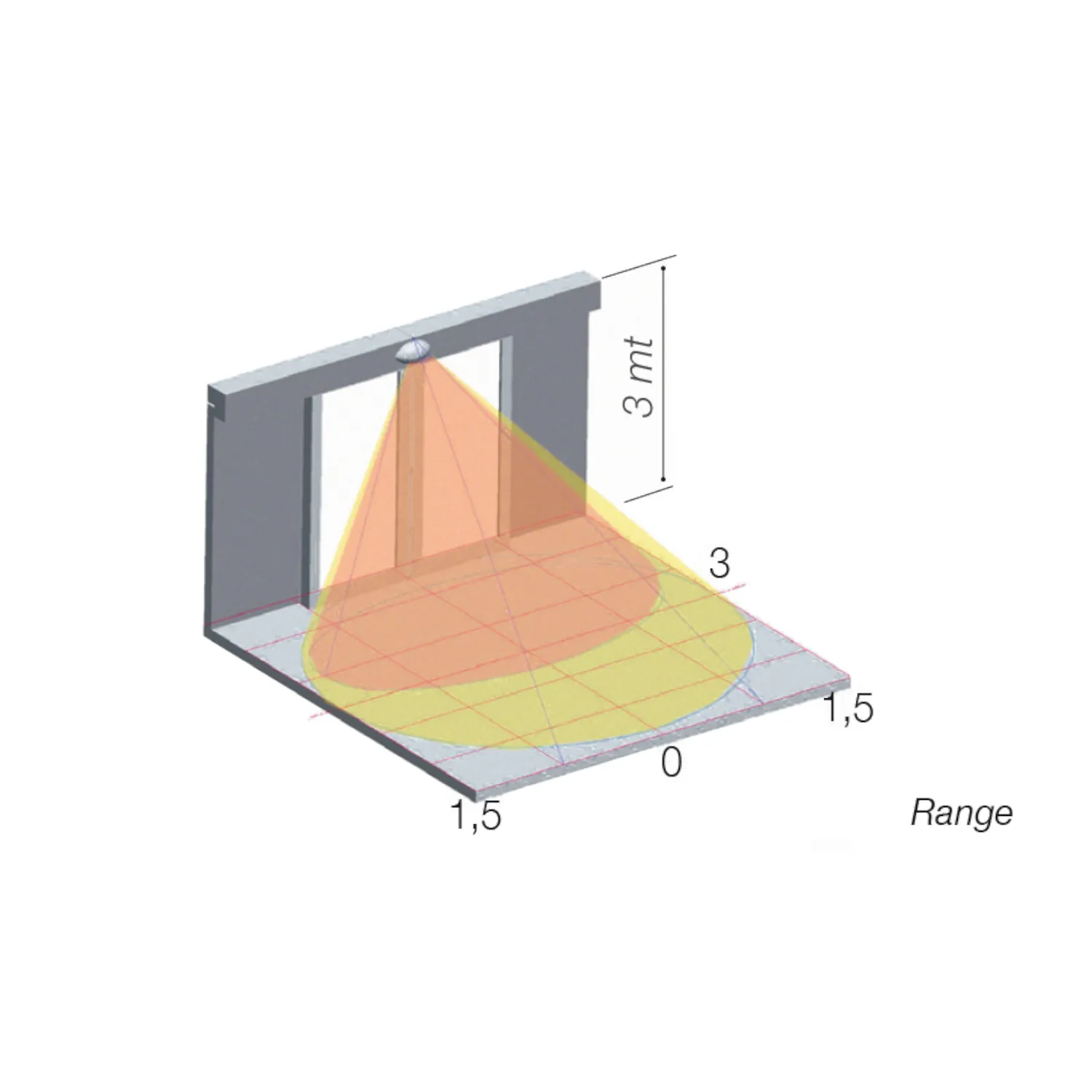

The high resolution of the detection field allows the detection range to be precisely tailored to the situation. The range is adjustable up to a maximum of 6 meters, and the internal directional setting allows for optimal environmental tuning. The sensor can be mounted on either the wall or the ceiling and supports a maximum installation height of 3 meters. Thanks to the adjustable vertical and horizontal detection angles, the detection area can be easily adapted to different door types and traffic scenarios.
Reliability is essential for industrial applications. That is why the SECR10 features a robust IP55-rated housing that provides protection against dust, dirt, and moisture. This ensures the sensor continues to function reliably in demanding environments such as warehouses, logistics centers, and industrial production areas. Furthermore, the sensor operates flawlessly in temperatures ranging from -20°C to +50°C, making it suitable for both indoor and outdoor applications.
The SECR10 supports a supply voltage of 12-24 VAC or 12-30 VDC and features programmable functions that allow installers to tailor the sensor to specific project requirements. This makes the sensor easy to integrate into both new installations and existing door automation systems.
For installers, system integrators, and door automation suppliers, the Guglielmi SECR10 offers a reliable and cost-effective solution for activating industrial and high-speed doors. Thanks to the combination of directional detection, adjustable detection zones, robust construction, and simple installation, this microwave sensor is an excellent choice for professional applications in logistics, industry, and access control.
