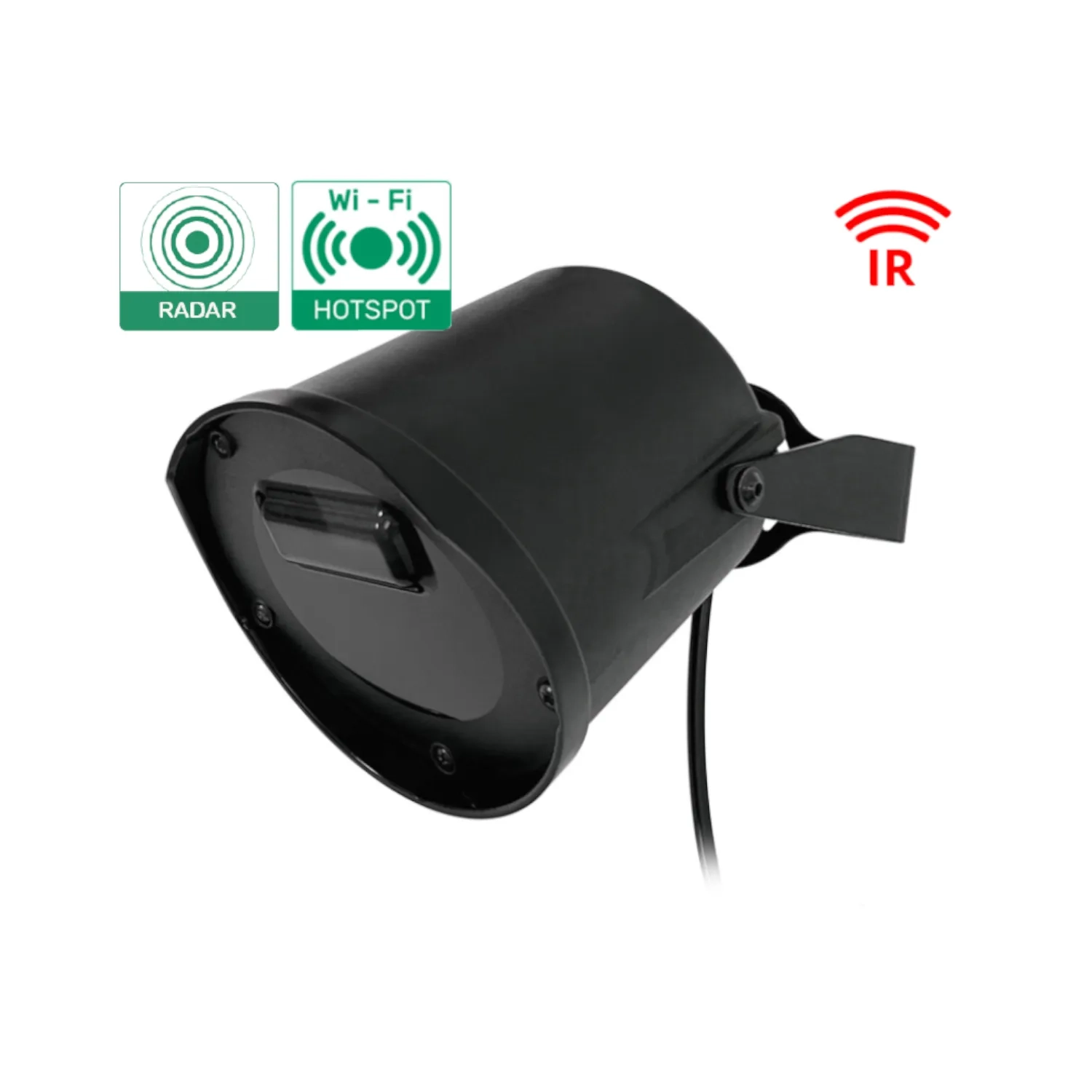

The SECRDT combines radar and active infrared technology for reliable detection at industrial doors, gates, and loading docks. The sensor distinguishes vehicles from pedestrians, filters out cross traffic, and can be configured via WiFi and smartphone. With bidirectional traffic detection and IP65 protection, the SECRDT is ideal for logistics and industrial entrances.
Product Model: SECRDT
Product Type: Dual Technology Radar & Active Infrared Sensor
Application: Industrial Doors, Gates, Loading Bays and Traffic Control Systems
Detection Technology: Planar Doppler Microwave Radar + Active Infrared
Detection Modes: Vehicle Detection, Pedestrian Detection, Mixed Detection
Configuration: WiFi Smartphone Configuration
Power Supply: 12 – 27 VDC / 50-60 Hz
Power Consumption: 5.4 W
Operating Frequency: 24.000 GHz
Output Power: ≤ 20 dBm
Microwave Detection Range: Up to 10 m (adjustable)
Infrared Detection Range: Up to 4 m
Output Pulse Duration: 1 – 5 sec adjustable
WiFi Range: Up to 10 m
Protection Rating: IP65
Installation Height: 3 – 7 m
Minimum Detectable Speed: 0.1 m/s
Relay Contact: 1 A @ 24 VDC
Vertical Adjustment: 0° – 90°
Operating Temperature: -25°C to +55°C
Warranty: 24 Months
Dimensions: 140 x 140 x 150 mm
Weight: 650 g
Technology: Dual technology radar and active infrared sensor
Configuration: Direct WiFi setup via smartphone
Traffic Control: Bidirectional flow management
Detection Logic: Vehicle and pedestrian discrimination
Filtering: Cross-traffic rejection
Installation: Suitable for industrial doors, gates and loading docks
Protection: Industrial-grade IP65 housing
The SECRDT is a professional dual-technology sensor combining radar and active infrared technology for reliable detection at industrial doors, gates, loading docks, and traffic control points. Thanks to this combination, the sensor not only distinguishes vehicles from pedestrians but also filters out cross traffic — so doors and gates activate only when genuinely needed.
In industrial door automation, precise, context-aware detection is essential. Unnecessary activations from passing or crossing traffic lead to heat loss, extra wear, and inefficient flow. The SECRDT solves this with planar Doppler microwave radar combined with active infrared sensing, delivering high detection accuracy up to 10 meters (radar) and 4 meters (infrared).
A key advantage is bidirectional traffic detection: the sensor recognizes direction of travel, distinguishing between traffic approaching the opening and traffic moving away from it. This is particularly valuable at loading docks and industrial entrances with continuous internal transport, where precise traffic management improves both efficiency and safety.
Configuration is handled via WiFi and a smartphone app, with no internet connection required — making on-site setup and tuning fast and accessible for installers. The sensor operates entirely locally, which benefits reliability in industrial environments with inconsistent network coverage.
The rugged IP65 housing withstands dust, moisture, and heavy use, and the sensor supports mounting heights from 3 to 7 meters — suitable for a wide range of door and gate types at business parks, distribution centers, and logistics hubs.
For installers and system integrators, the SECRDT offers fast installation and extensive configuration options, suitable for both new and existing door automation systems.
The SECRDT is the ideal choice for organizations seeking a high-quality radar and infrared sensor, industrial door sensor, or solution for loading dock traffic control. With its combination of dual-technology detection, WiFi configuration, and industrial-grade reliability, this sensor is a valuable addition to any professional door automation installation.
