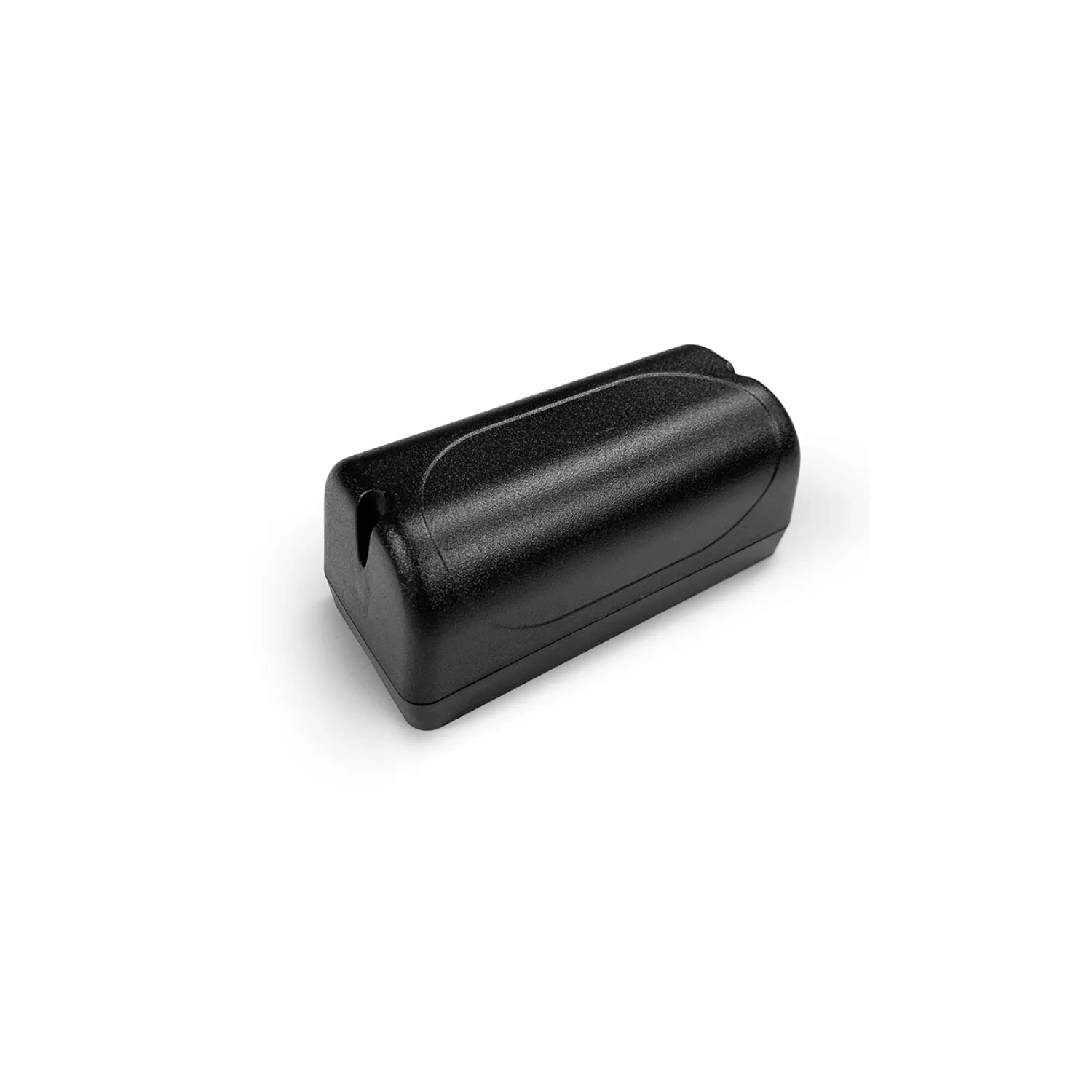

The SECRMINI is a compact microwave sensor designed for automatic doors and access automation. Thanks to its small size, adjustable detection zone, and direction recognition, this radar provides a reliable solution for applications where mounting space is limited. It is ideal for automatic sliding doors, swing doors, and light industrial applications.
Product Model: SECRMINI
Product Type: Microwave Radar Detector
Application: Automatic Doors and Entrance Automation
Detection Technology: Microwave Radar (K-Band)
Detection Mode: One-Way / Two-Way Detection
Power Supply: 12–24 VAC / 12–30 VDC
Current Consumption: 40 mA max
Operating Frequency: 24.000 – 24.250 GHz
Output Power: ≤ 20 dBm

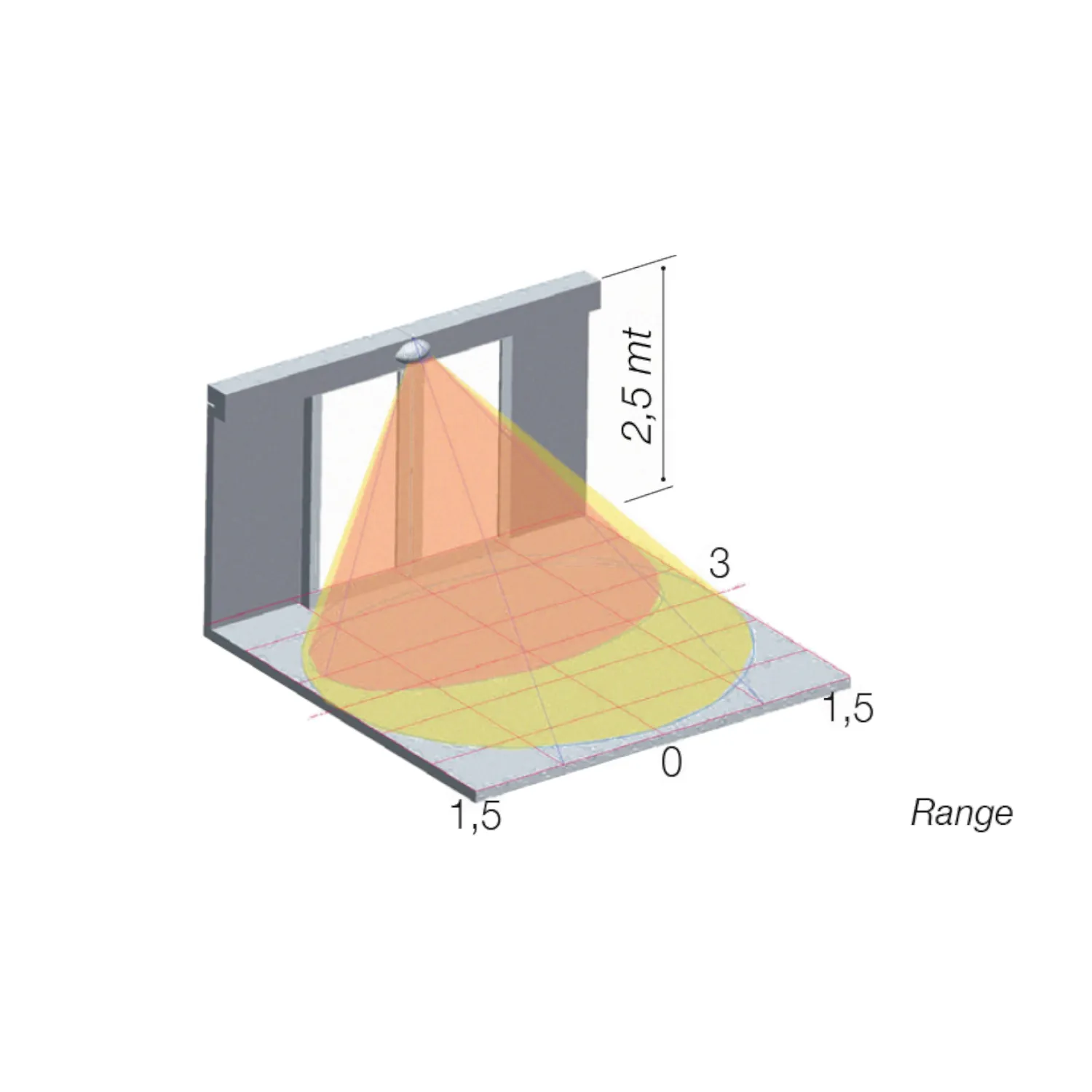

Detection Range: 1 – 5 m (adjustable)
Relay Hold Time: 0.5 – 6 sec (adjustable)
Protection Rating: IP54
Maximum Installation Height: 2.5 m
Minimum Detectable Speed: 0.1 m/s
Relay Contact: 1 A – 24 V AC/DC

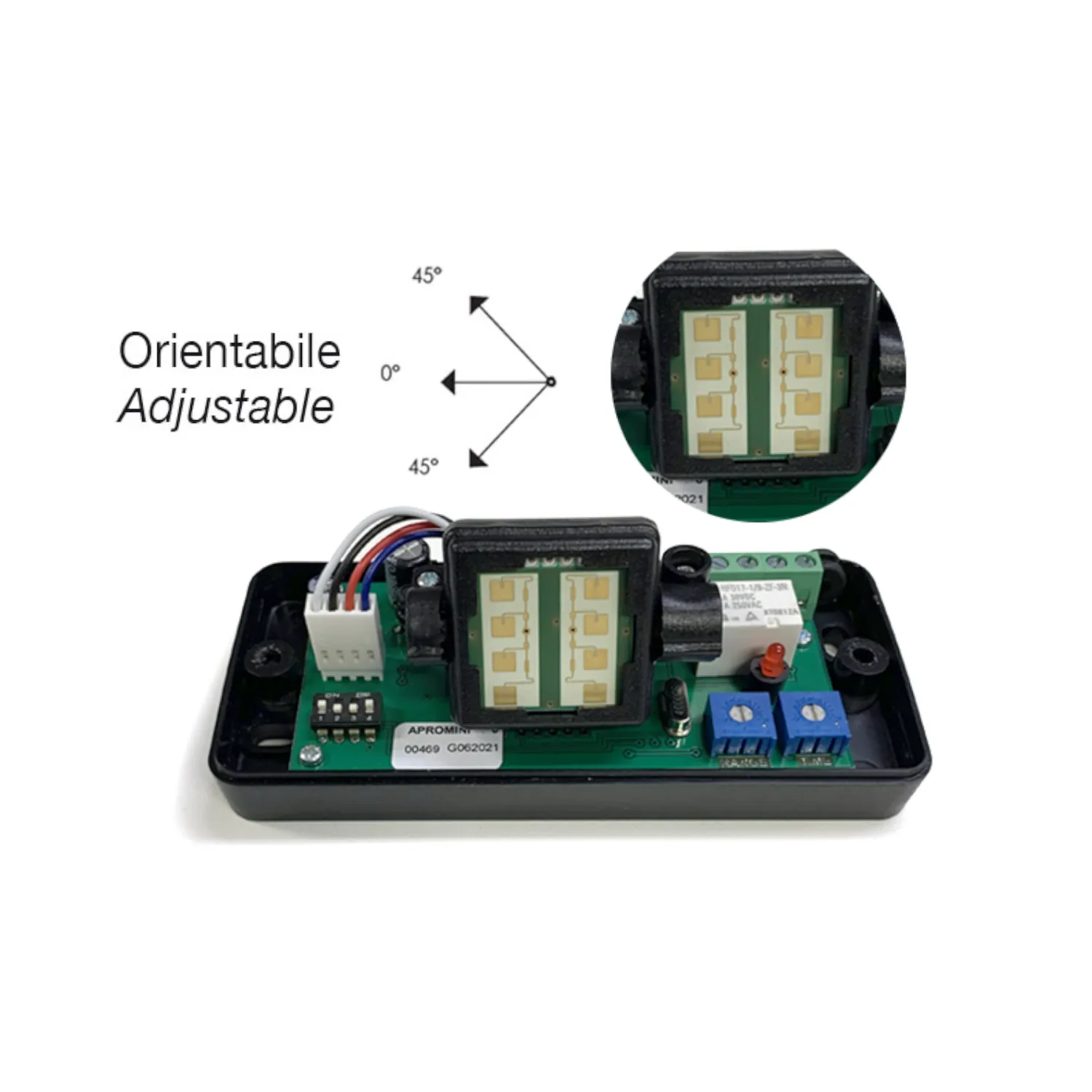

Vertical Adjustment: 0° to 45°
Operating Temperature: -20°C to +50°C
Warranty: 24 Months
Dimensions: 116 x 50 x 40 mm
Weight: 100 g
Technology: Planar microwave technology
Signal Processing: Microprocessor controlled
Direction Recognition: Forward and reverse movement detection
Coverage Area: High-resolution detection field
Installation: Wall or ceiling mounted
Orientation: Adjustable sensor positioning
Application: Suitable for automatic sliding and swing doors
The SECRMINI is a compact and versatile radar sensor for automatic doors specifically developed for applications where reliable detection and discreet installation are essential. Thanks to its integrated microwave technology, the sensor detects movement quickly and accurately, ensuring automatic doors open only when necessary. This not only enhances user convenience but also contributes to more efficient and energy-conscious building management.
Due to its compact design, the SECRMINI is particularly well-suited for locations where installation space is limited or an unobtrusive sensor solution is required. As a result, the sensor is widely used for automatic sliding doors, swing doors, entry doors, healthcare facilities, office buildings, retail stores, hotels, and public buildings.
The sensor uses advanced radar technology to reliably register movement within the detection area. With adjustable sensitivity and detection zones, its operation can be precisely tailored to the environment and the type of door. This helps reduce unwanted activations and achieves an optimal balance between ease of use and energy efficiency.
For installers, the SECRMINI offers simple and flexible installation. The sensor can be quickly integrated into both new door automation systems and existing installations. Thanks to various setting options, detection can be accurately tuned to the specific situation, making the sensor suitable for a wide range of commercial and professional applications.
Beyond ease of use, reliability is a top priority. The SECRMINI is designed for intensive daily use and delivers consistent performance under varying conditions. This makes the sensor a dependable solution for buildings where continuous and secure access is essential.
For building owners and facility managers, the SECRMINI offers significant benefits in terms of comfort and efficiency. The automatic door responds quickly to approaching users while minimizing unnecessary openings. This contributes to better climate control, lower energy costs, and a professional user experience.
The SECRMINI is therefore an excellent choice for organizations looking for a compact, reliable, and easy-to-install automatic door sensor, radar sensor or microwave sensor. Thanks to the combination of compact dimensions, accurate detection, and professional performance, this sensor is suitable for virtually any automatic door application in commercial and public buildings.
