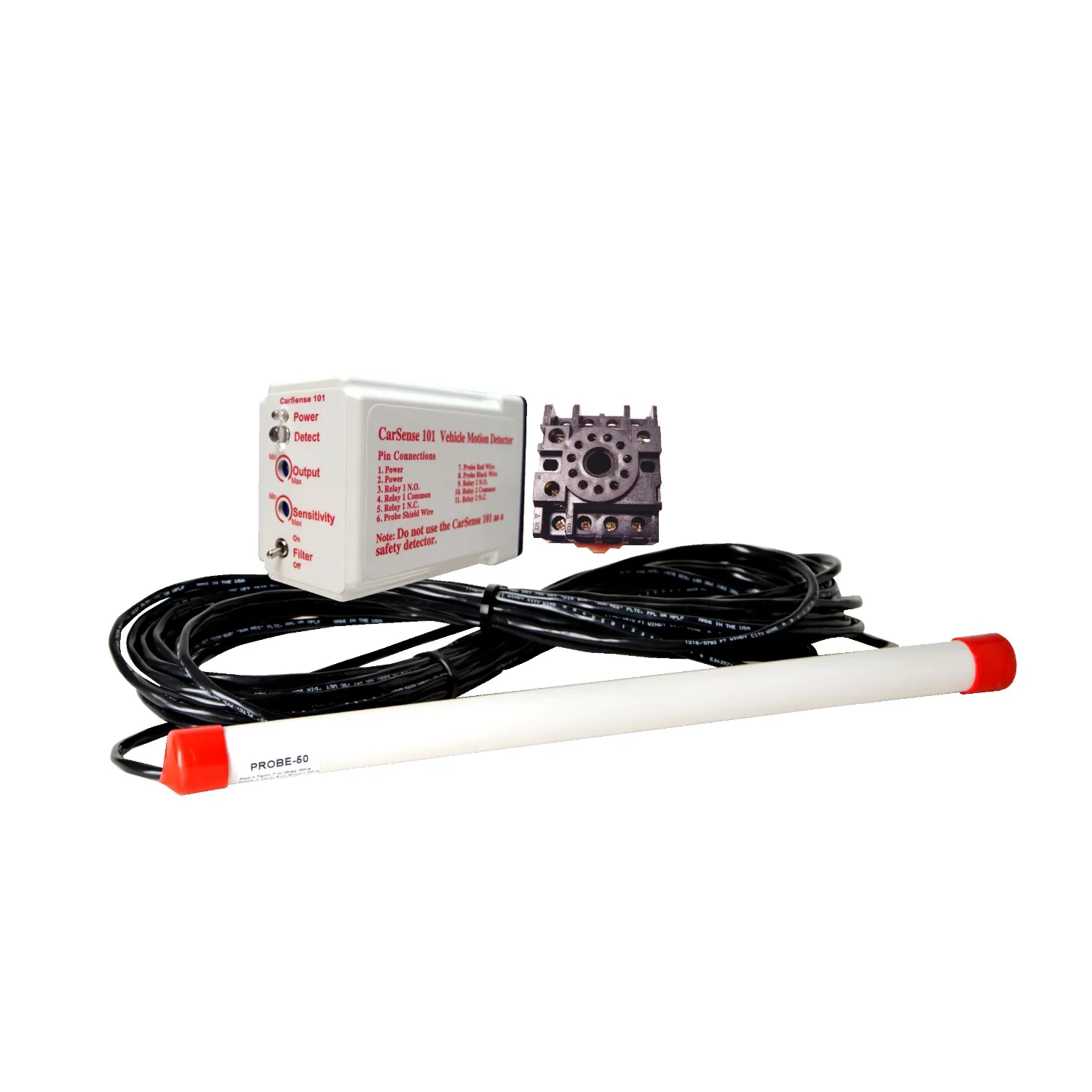

The CS101-LV is a low-voltage free-exit motion detector from EMX (9–41VDC/6–29VAC), ideal for battery- or solar-powered installations. Waterproof sensing probe, no induction loop needed, DPDT relay output.
Type: Vehicle Motion Detector with Sensing Probe
Detection Technology: Earth magnetic field disturbance sensing
Detection Range: Up to 12 ft (3.6 m) @ minimum 5 mph
Detection Mode: Moving vehicle detection only
Power Supply: 9–41 VDC or 6–29 VAC
Standby Current: 2.5 mA max
Detection Current: 50 mA max
Relay Output: DPDT / Form C relay
Relay Rating: 1 A @ 24 VDC / 1 A @ 120 VAC
Sensitivity Adjustment: Continuous adjustment (High / Low)
Output Hold Time: Adjustable from 0.5–6 seconds
Indicators: Green Power LED / Red Detect LED
Surge Protection: MOV, neon and silicon protection devices
Connector: 11-pin connector (86CP11)
Housing Material: Break-resistant polycarbonate
Dimensions: 84 × 41 × 55 mm
Operating Temperature: -40°C to +82°C
Humidity: 0–95% non-condensing
Probe Type: PVC waterproof direct burial probe
Probe Dimensions: 432 mm × 25 mm
Application: Free exit gates, barriers, driveway detection, access control
For free-exit applications at locations with a low-voltage supply — for example battery- or solar-powered barriers, or installations without access to 230V — EMX Industries' CS101-LV offers a magnetic motion detector specifically designed for low-voltage power: 9–41VDC or 6–29VAC.
The sensor detects vehicles at a distance of up to approximately 3.6 meters (12ft) at a minimum speed of 5 mph, via a waterproof sensing probe (432×25mm, PVC) installed alongside the lane. A DPDT relay provides flexible switching options for the gate or barrier controller, and the polycarbonate housing protects the electronics from the elements.
Because the CS101-LV doesn't require an induction loop, installation is simpler and faster than with traditional loop systems — relevant for free-exit applications where vehicles need to be able to leave a site from the inside without separate operator input.
The CS101-LV includes extensive surge protection (MOV, neon, and silicon protection devices), making the sensor extra resistant to voltage spikes in outdoor installations — relevant given the often limited or alternative power supply this low-voltage model is designed for. Green and red LED indicators show power status and detection respectively, simplifying on-site troubleshooting. The adjustable output hold time (0.5 to 6 seconds) and continuously adjustable sensitivity (high/low) give installers fine control over detection characteristics, tailored to the specific vehicle speed and type.
Typical applications include free-exit detection at barriers and gates in locations with limited or alternative power supply, such as solar-powered installations or temporary construction site access. The CS101-LV's wide voltage range also adds flexibility for backup power supplies and generator-fed installations.
