The WEL-200 is a wireless link between a safety edge on a moving door panel and the controller, compliant with UL325. By eliminating wiring to the moving part, the WEL-200 simplifies installation and reduces the risk of faults.
Model: WEL-200 (WEL-200T transmitter + WEL-200R receiver)
Type: Wireless link for safety edges
Standard: UL325-2018 compliant
Monitoring methods: normally closed, 10K resistive, pulse output
Compatibility: 8.2K and 10K monitored safety edges
Range: up to 60 m (line of sight)
Transmitters per receiver: up to 4, with separate relay/pulse outputs
Transmitter power: 2x AA lithium battery, up to 2 years lifespan
Frequency: 915 MHz
Response time: 100 ms
Housing: NEMA 4X, watertight
Transmitter dimensions: 140 x 34 x 90 mm
Receiver dimensions: 180 x 32 x 67 mm
Weight: 200 g
At a sliding gate or a moving door panel fitted with a safety edge, a practical wiring problem arises: the edge sits on a moving part, while the controller stays put. A physical cable connection between the two then has to move along, which over time can lead to wear, cable breakage, or faults. The WEL-200 solves this by making the connection between safety edge and controller entirely wireless.

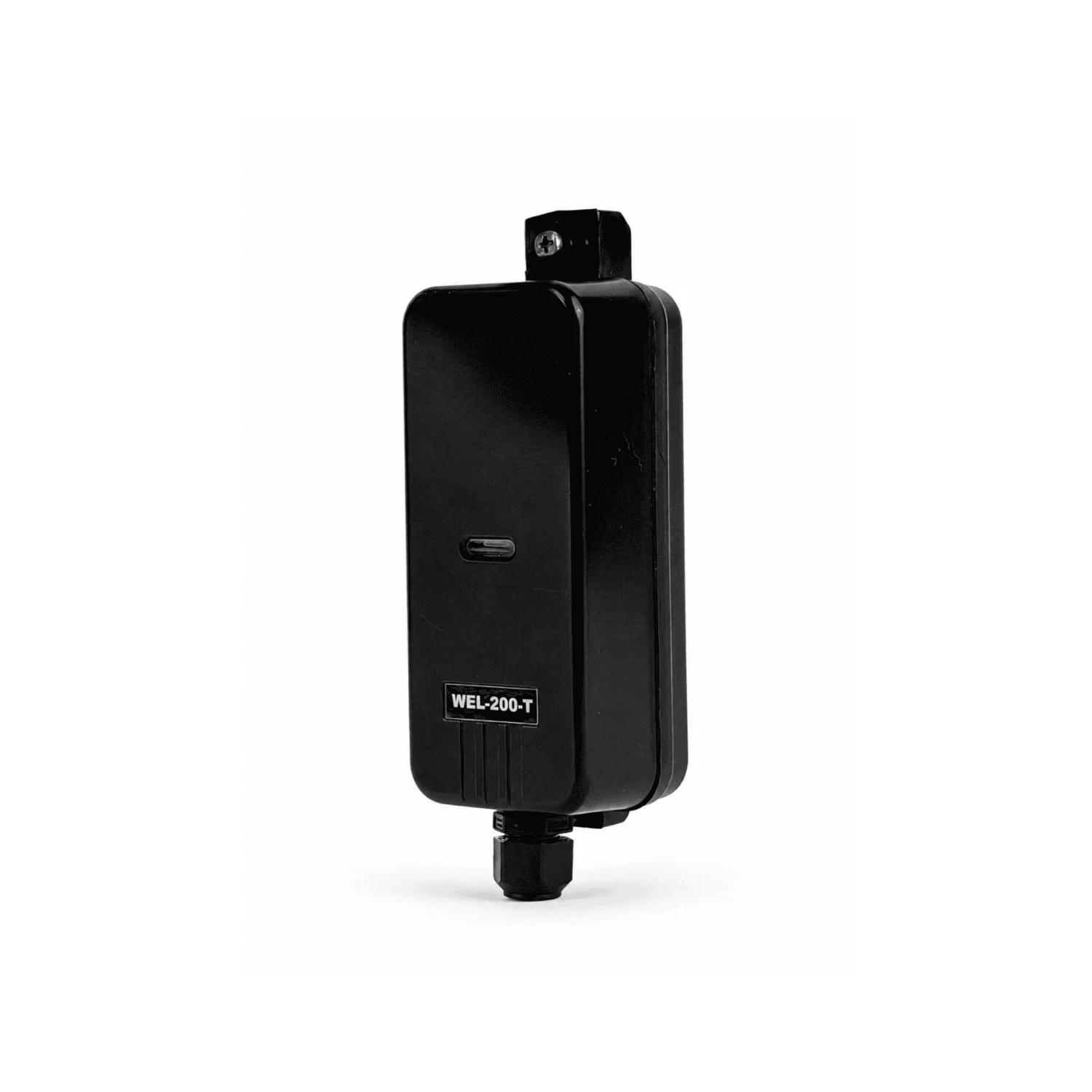

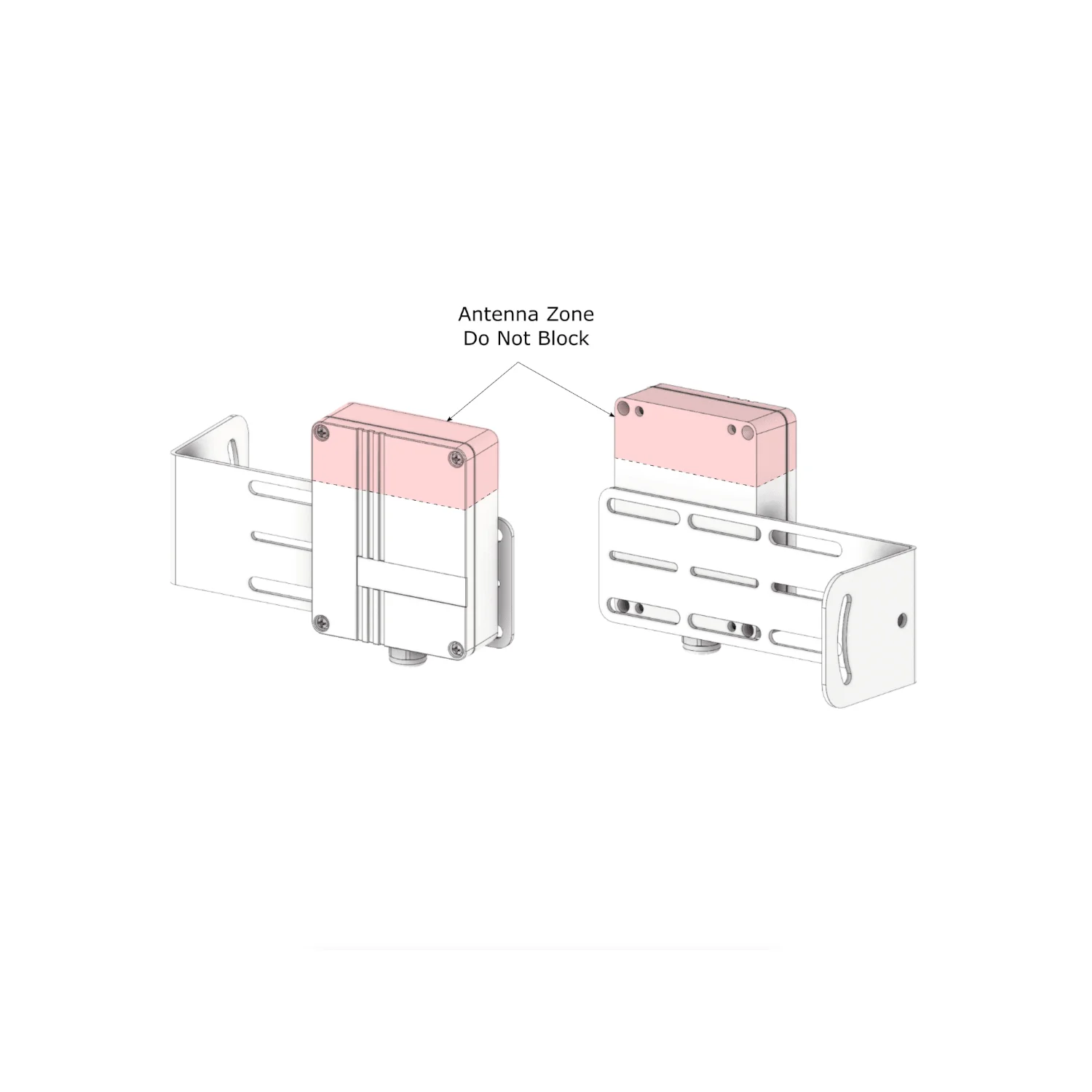

The transmitter mounts directly at the safety edge, on the moving part of the gate or door, and communicates wirelessly with the receiver at the controller. That eliminates the need for a trailing cable, cable chain, or other mechanical solution to keep the wiring following the moving path, simplifying installation and removing a known source of faults.
The WEL-200 supports the common monitoring methods for safety edges: normally closed, 10K resistive termination, and pulse output, and complies with UL325-2018 monitoring standards. The transmitter is compatible with both 8.2K and 10K monitored safety edges, making the WEL-200 broadly deployable across different types of edge sensors.
With a range up to 60 metres line of sight, and the ability to connect up to four transmitters to a single receiver with separate relay and pulse outputs for open and close functions, the WEL-200 suits gates with multiple safety edges or more complex configurations without creating a tangle of wiring.

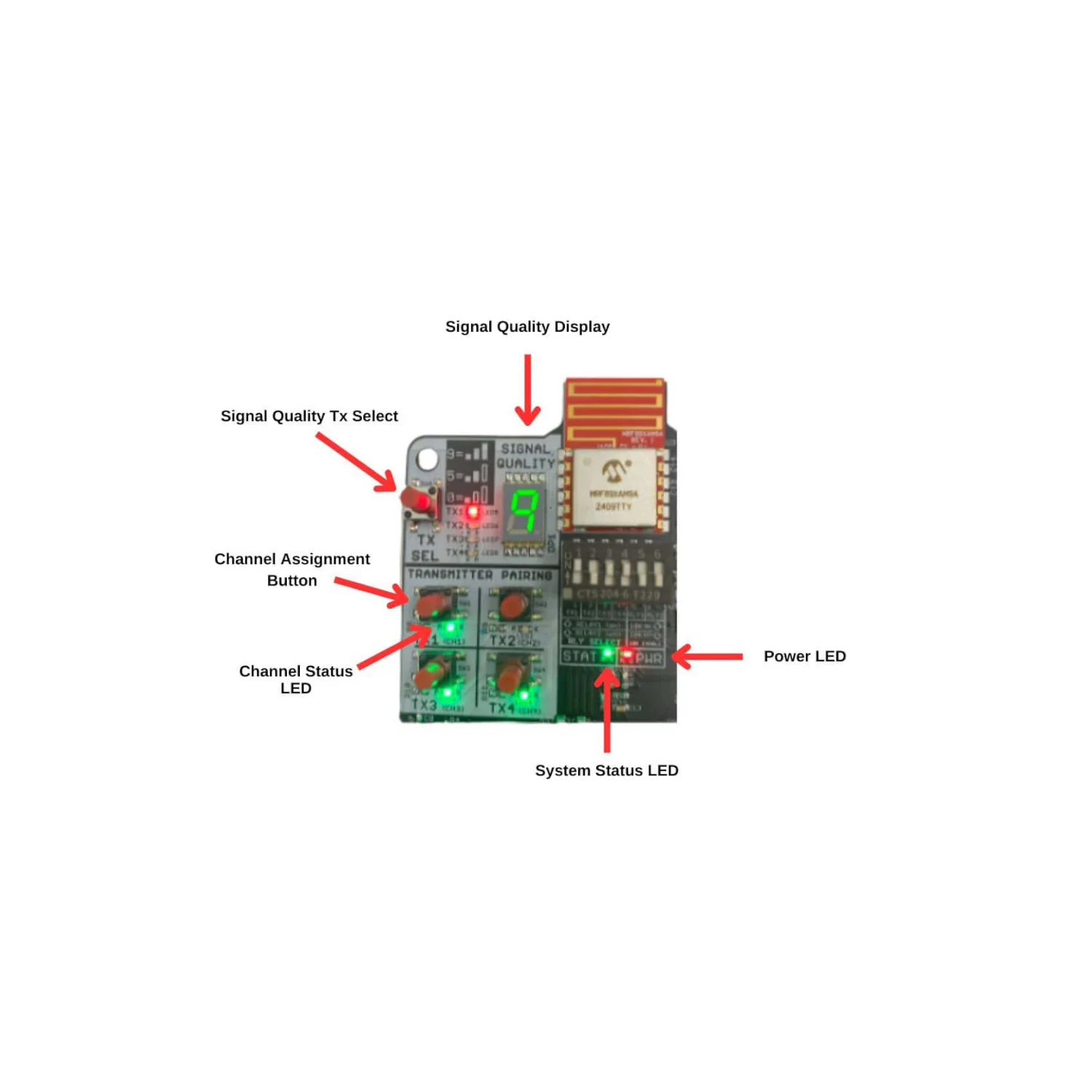

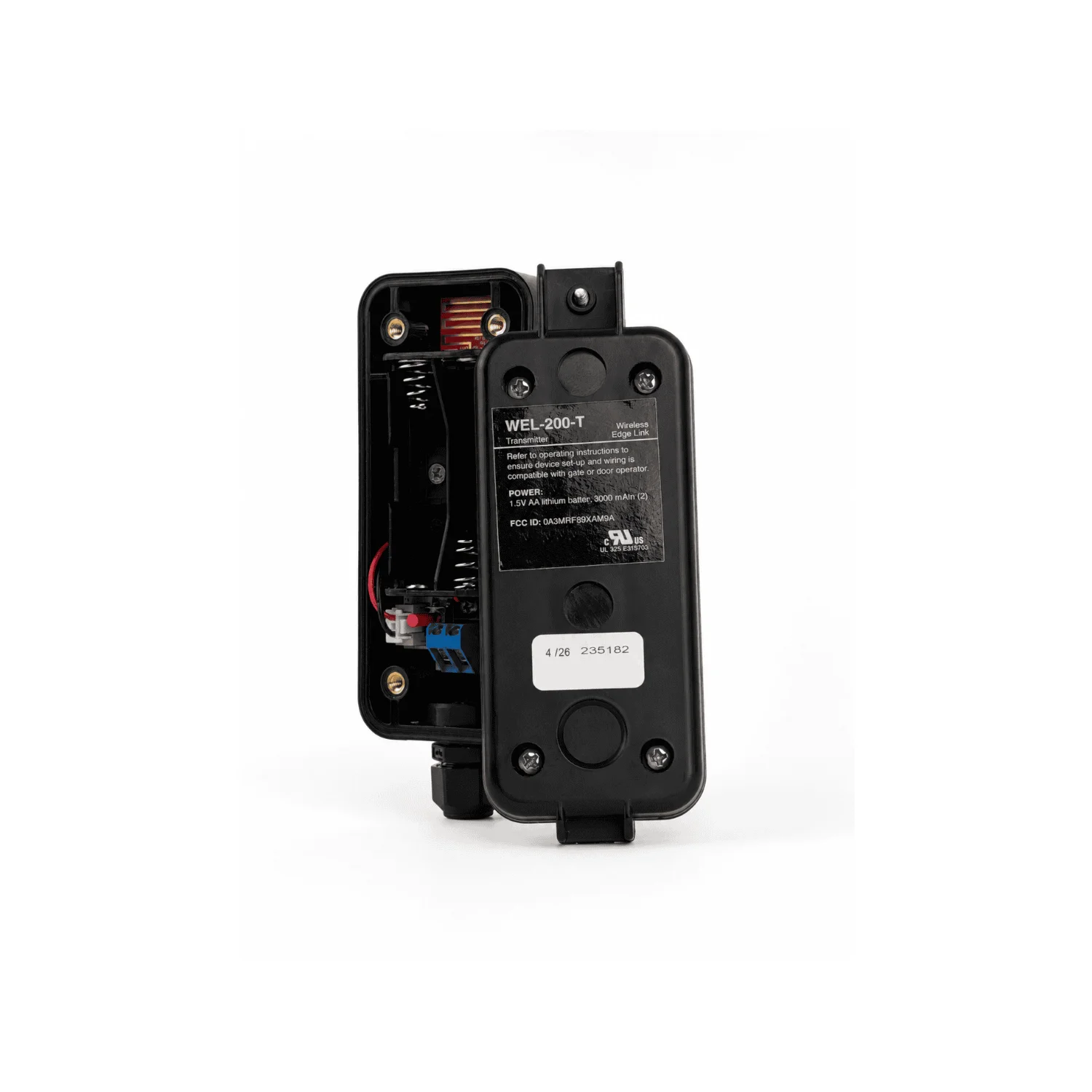

The transmitter runs for up to two years on two AA lithium batteries, keeping maintenance to a minimum. The receiver offers extensive diagnostics, with feedback for every fault condition: an open or shorted edge, low battery voltage, or a transmitter that's no longer responding, so problems can be traced quickly without extensive troubleshooting.

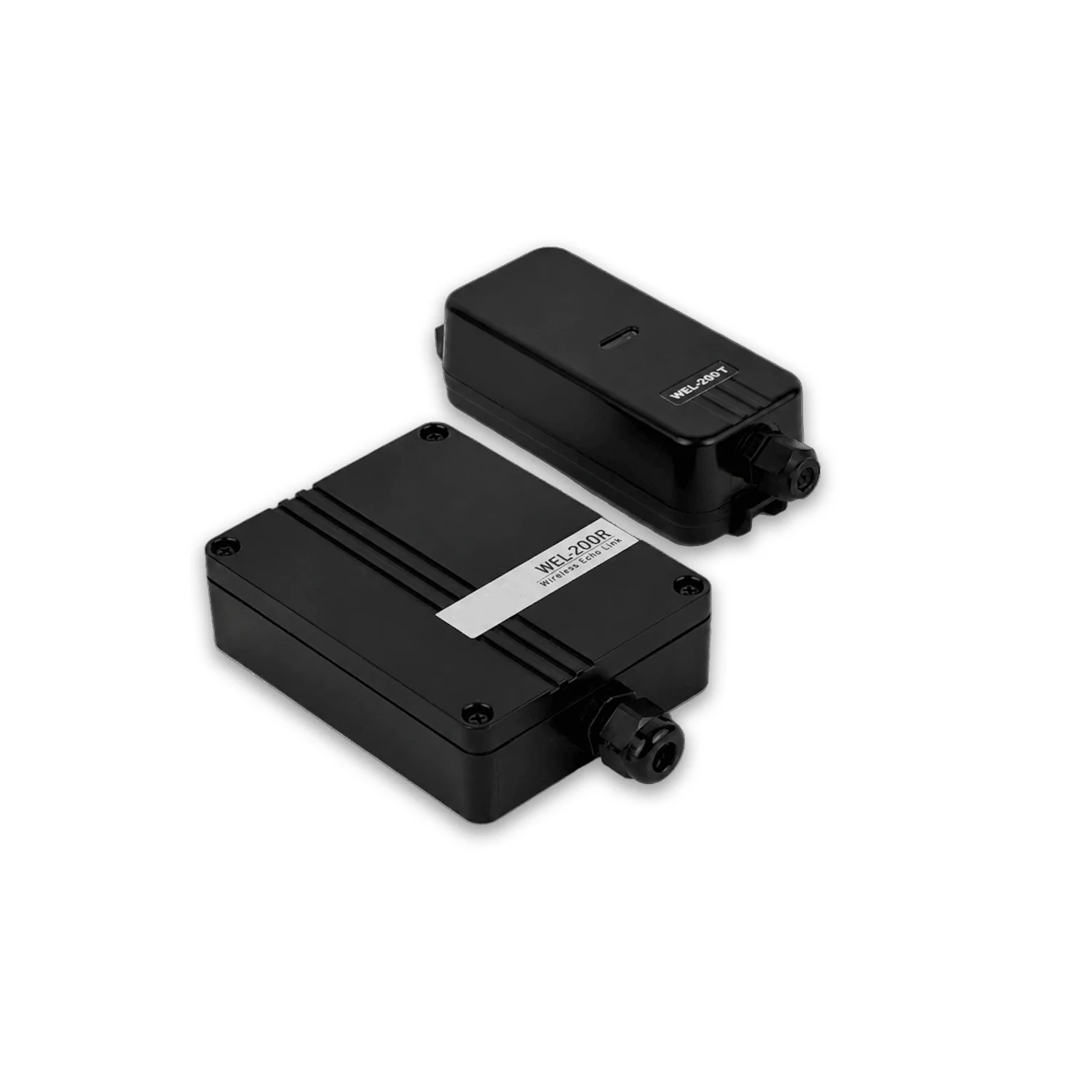

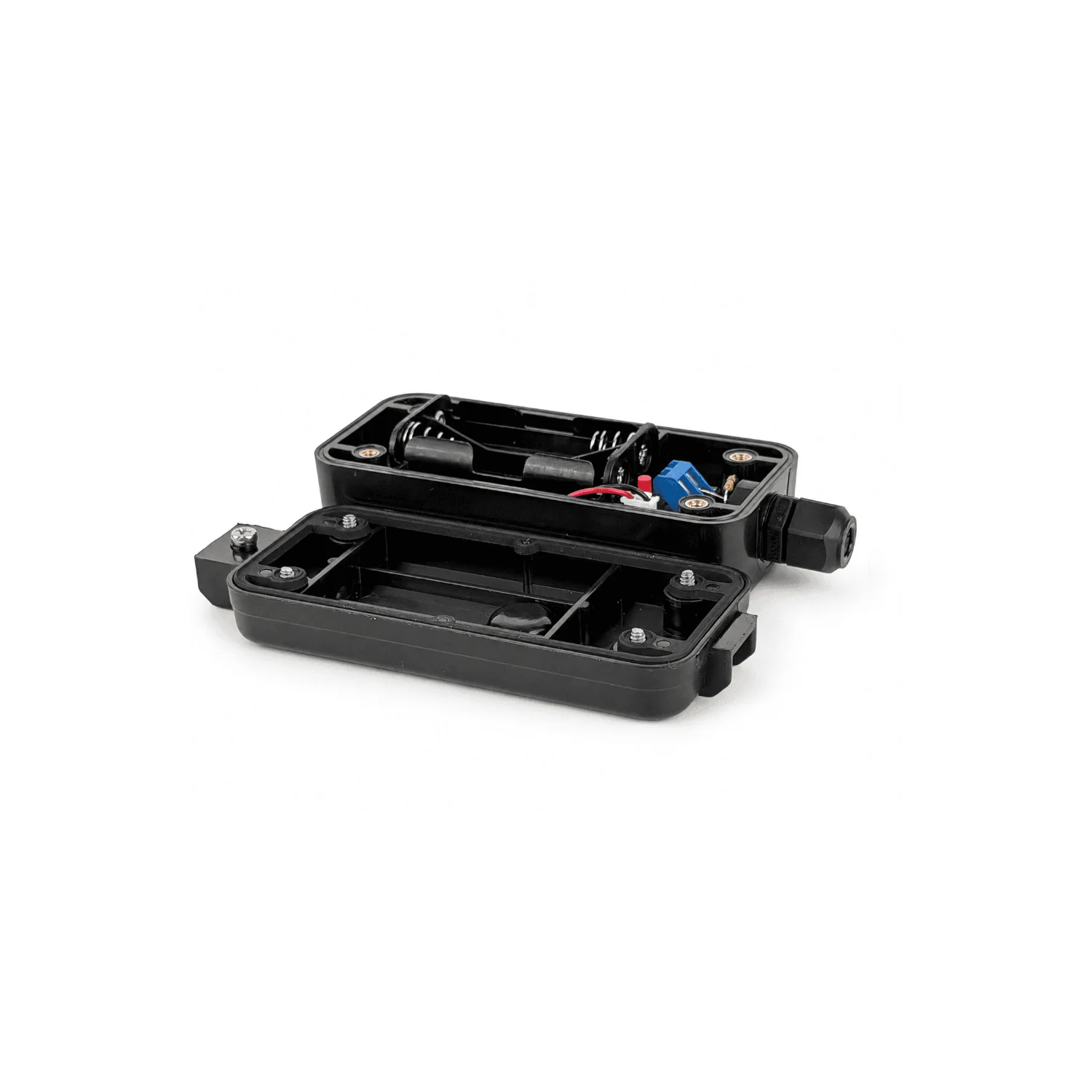

Both the transmitter and receiver are housed in watertight NEMA 4X enclosures, suitable for permanent outdoor applications at gates and doors exposed to the weather.
The WEL-200 is mainly used at sliding gates and other moving door constructions where a safety edge is mounted on the moving part, and where a physical cable connection to the controller would be impractical, fault-prone, or costly to implement.
Secumatic supplies the WEL-200 as part of the complete vehicle detection and safety sensor range, with support on specification and project advice for installers and technical service providers. Get in touch for advice on the right solution for your project.
